Material: | Steel Q235B | Finish: | Corrosion Protection |
---|---|---|---|
Size: | Customzied | Structure: | Assemble |
Weight Capacity: | Maximum 4000kg/lever | Store Layer:: | 1 To 7 Layers Per Bay |
Technique: | Cold Rolled | Color: | Optional |
Highlight: | Heavy Duty Drive In Pallet Racking,Drive In Pallet Racking 1000kg/Level,4000kg/Level Industrial Steel Racks |

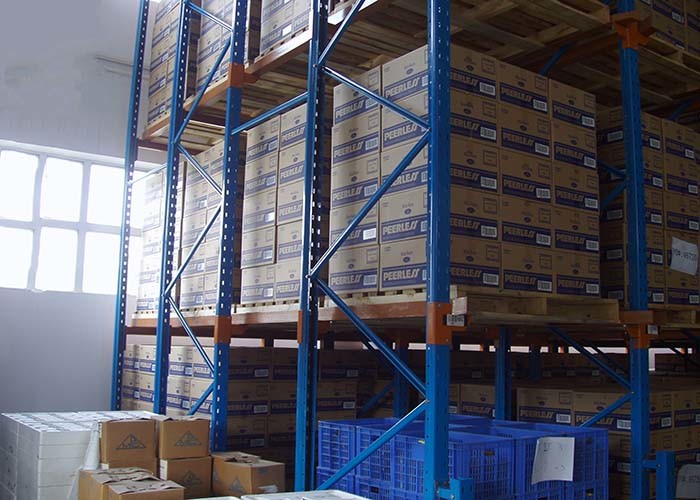

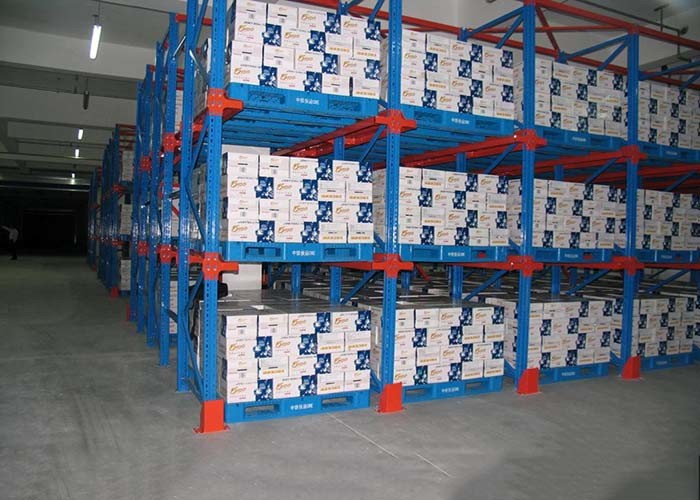

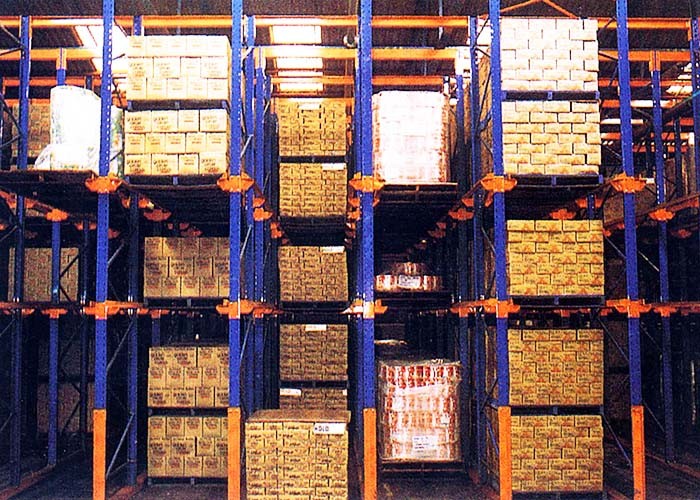

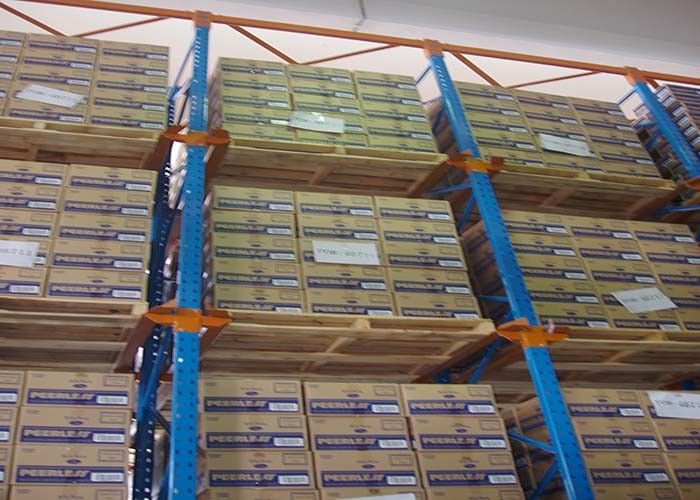

1,000-4,000kg/level Heavy Duty Cold Roller Steel Drive In Pallet Racking
Description:
Drive-In Rack and Drive-Thru racking are terms that are often used interchangeably. In some environments it can be difficult to differentiate between the two. Typically, Drive-In racking requires operators to drive into the racking system from one side and remove pallets from the same entry point. Some Drive-In rack systems have a wall or are otherwise closed at the opposite end.
Drive-In & Drive-Through Racks offer the ability to store a large amount of similar loads in a smaller area. Selectivity is sacrificed, but storage density is outstanding. Drive In Racking can store up to 75% more pallets in the same space than selective racking -- depending on your application. It requires fewer aisles and is better cubic storage.
A simple way to identify a Drive-In Rack Systems is its LIFO inventory management. Product is rotated in a Last-In, First-Out inventory manner because of the single entry/exit point.
Drive-In Rack optimizing available space. Elimination of aisles between shelves. Admits as many references as load lanes. Appropriate system to store homogeneous, low-rotation products with a large number of pallets per reference.
This system is base on the storage by accumulation principle, which enables the highest use of available space in terms of both area and height. Drive-in racking is designed for the storage of homogeneous products. It accommodates a large number of pallets.
Features:
Product Name | Drive In Pallet Racks |
Customized Specification | Drive-in Racking is available in a range of sizes and configurations. Please call or email us and we can work together to get the most cost-effective and practical solution. |
Pallet Rail Levels | 2 levels, 3 levels, 4 levels, 5 levels |
Load Capacity per Pallet | 500KG, 800KG, 1200KG, 1500KG, 2000KG |
Raw Material | high quality cold rolling steel Q235B(SS400) purchased from Shanghai Baosteel Group |
Material Thickness | 1.5mm, 1.8mm, 2.0mm, 2.5mm |
Surface Treatment | deoil, derusting and powder coat paint finish |
Rack Colors | standard blue, orange and customized available |
HS Code | 7308900000 |
