Product Details:
Payment & Shipping Terms:
|
| Product Name: | Drive In Pallet Racking | Material: | High Quality Cold Rolled Steel |
|---|---|---|---|
| Weight Capacity: | 500-4000kg/pallet | Store Layer: | 1 To 7 Layers Per Bay |
| Structure: | Assemble | Size: | Customzied |
| Scale: | Heavy Duty | Solution: | Available For Free |
| High Light: | Industrial Drive In Pallet Racking,Drive In Pallet Racking Heavy Duty,Heavy Duty Push Back Pallet Racks |
||
Powder Coating Galvanization Customzied Size Push Back Pallet Racking
Description:

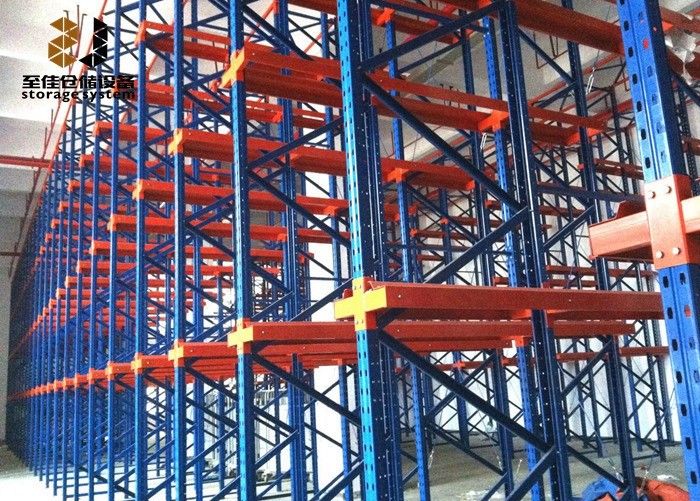

Detailed description of drive in racking and necessary information from customers:
1.Structural steel constraction for durality,
2.Goods can be first in first out or first in-last out.
3. Very high utility ratio of warehouse.
4. Pallet position configure from 2-7 deep and 2-7 high to roofing.
5. Finish: powder coating.
drive through storage racks are:
1. Efficiently store of large quantities of similar loads.
2.Ideal for cold, chill storage and bulk storage applications.
3.High density storage allowing a greater number of pallets to be stored per cubic meter than other storage systems.
4. Provides high-density storage and eliminates wasted aisle space.
5. First in-last out or first in-first out order picking.
6. Structural steel construction for durability,
7. Standard specification available upon request.
8. Suitable for storing large quantity of goods with less types.
9.For goods of batched working and small range of selection,
10. Goods are stored on supports guide rail with pallet one after ano.her in direction of depth.
11. Increases storage density and space availability.
12. Convenient as fork truck can drive into lane directly to store or take out goods.
Zhijia-drive in layout plan.pdf
Freezing Room B,D Drive In Rack-ZJ.pdf
Specification:
| Product name | Powder Coating Galvanization Customzied Size Push Back Pallet Racking |
| Features | Material:high quality cold rolled steel |
| Zhijia Service | Solution:Available for free |
| Specifications of Upright | ||||
| Item | Width(mm) | Depth(mm) | Thickness(mm) | Loading Capacity(kg) |
| 1 | 85 | 67 | 1.6 | 7000 |
| 2 | 85 | 67 | 1.8 | 8500 |
| 3 | 85 | 67 | 2 | 10000 |
| 4 | 85 | 67 | 2.3 | 12500 |
| 5 | 100 | 67 | 1.8 | 10500 |
| 6 | 100 | 67 | 2 | 12000 |
| 7 | 100 | 67 | 2.3 | 13800 |
| 8 | 100 | 95 | 2 | 12000 |
| 9 | 100 | 95 | 2.3 | 14500 |
| 10 | 100 | 95 | 2.5 | 16000 |
| 11 | 100 | 95 | 2.75 | 18000 |
| 12 | 100 | 95 | 3 | 20000 |
| 13 | 120 | 95 | 2.5 | 17000 |
| 14 | 120 | 95 | 2.75 | 19000 |
| 15 | 120 | 95 | 3 | 21000 |

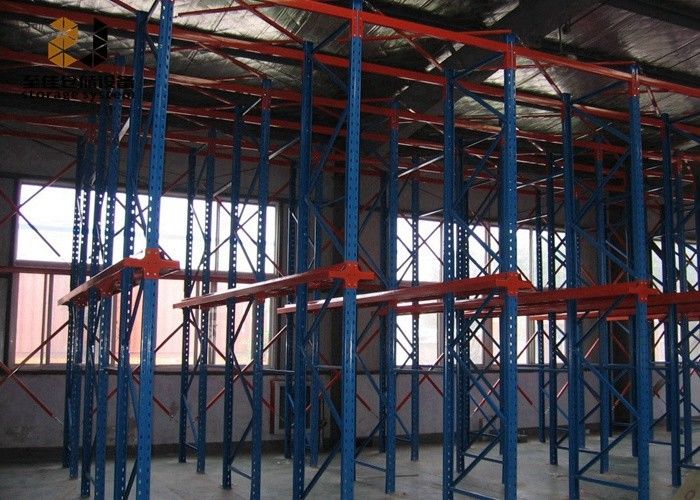

Frames:Product Details
Frames are made up of two uprights with the corresponding horizontal& diagonal bracings, footplates and accessories.
The frames have slots every 75mm to accommodate the beams and supports.
Arms:
There are two types of arms, which are single arm (left side and right side single arms) and double arm. The single arm is used in each side of the racks, while the double arm is used in between.
Pallet Support Rails:
Support rails are stamp formed and the length can be customized. The rails are designed without connectors to ensure uniform loading.
Top beams and top bracings:
Top beams and top bracings are used to increase integrity and stability of the racking system.
