Powder Coated Drive In Pallet Racking Cold Rolled Steel ODM / OEM Available

Powder Coating Warranty 5 Years Easy Assemble Drive Through Racking

Description:

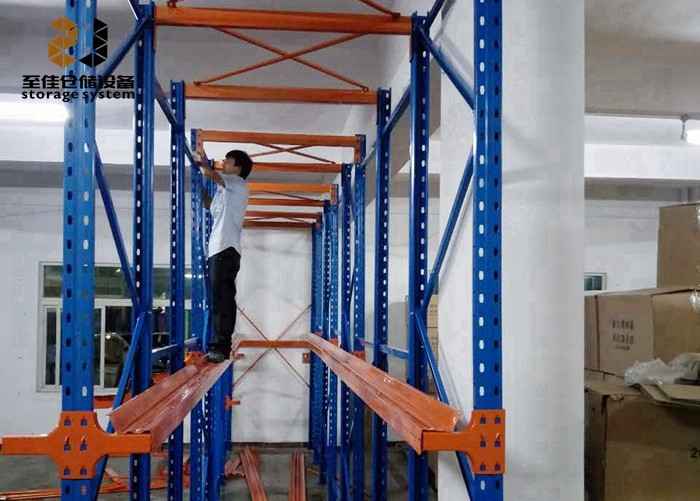

Drive through racking optimizing available space. Elimination of aisles between shelves. Admits as many references as load lanes. Appropriate system to store homogeneous, low-rotation products with a large number of pallets per reference.

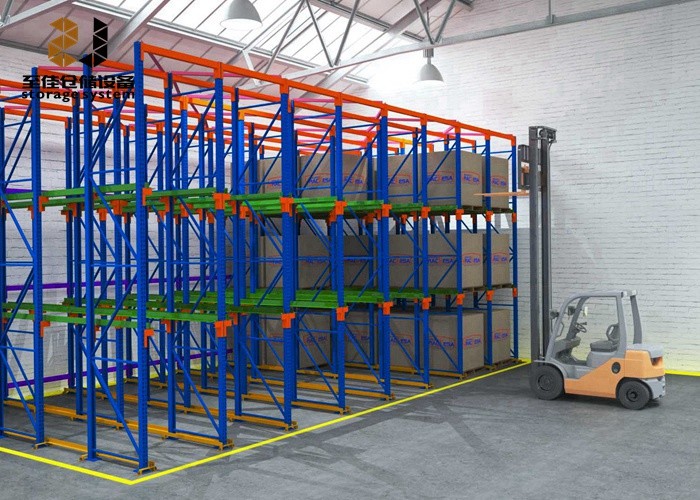

This system is base on the storage by accumulation principle, which enables the highest use of available space in terms of both area and height. Drive-in racking is designed for the storage of homogenous products. It accommodates a large number of pallets.

1. Drive in rack system is last in first out store system. Suits for unified palletized goods.

2. Drive in rack system is a high density store system. It can use most of the warehouse space. So it can save space, save store cost. In the same area, push back rack can store much more goods.

3. Push back rack system doesn't need forklift to go into its lanes, so enhance safety for forklift operator.

Zhijia-drive in layout plan.pdf

Freezing Room B,D Drive In Rack-ZJ.pdf

Specification:

Frames:Product Details

Frames are made up of two uprights with the corresponding horizontal& diagonal bracings, footplates and accessories.
The frames have slots every 75mm to accommodate the beams and supports.

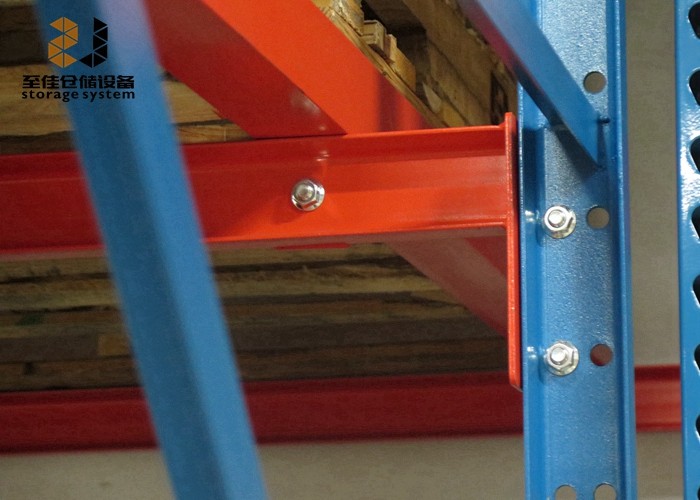

Arms:
There are two types of arms, which are single arm (left side and right side single arms) and double arm. The single arm is used in each side of the racks, while the double arm is used in between.

Pallet Support Rails:
Support rails are stamp formed and the length can be customized. The rails are designed without connectors to ensure uniform loading.

Top beams and top bracings:
Top beams and top bracings are used to increase integrity and stability of the racking system.
