Product Name: | Drive In Racking System | Material: | High Quality Cold Rolled Steel |
---|---|---|---|
Store Layer: | 1 To 7 Layers Per Bay | Structure: | Assemble |
Weight Capacity: | 500-4000kg/pallet | Finish: | Powder Coating / Galvanization |
Scale: | Heavy Duty | Type: | Drive-In Rack |
Highlight: | ODM Heavy Duty Warehouse Racking Shelving,Heavy Duty Warehouse Racking Shelving System,Heavy Duty High Density Racking System |
Galvanization For Unified Palletized Goods Use Drive In Racking System
Description:
high density storage racks for steel pallet drive-in rack :

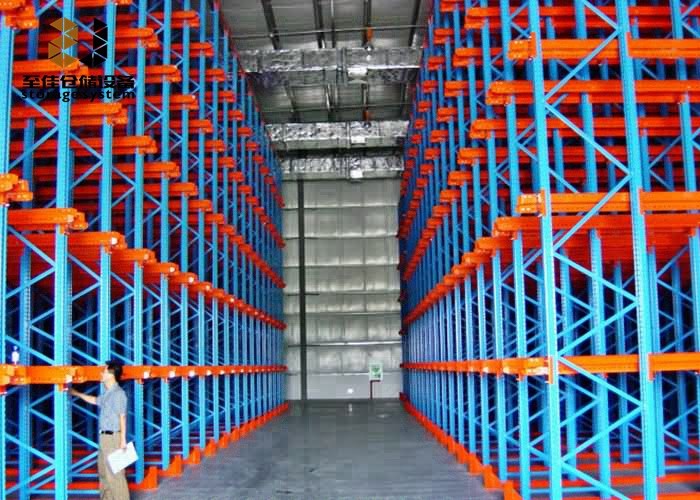

Drive-In Rack allow a lift truck to enter the rack from one side to pick up or pull out pallets.
This is done because pallets can slide backwards on a continuous rail.
Forklifts drive into the rack to access pallets two or more deep.
You are limited in the depth of storage for a particular bay by the size of your facility.
Drive-In rack are typically subject to more abuse than selective racks due to the way they are utilized, so rack integrity and strength are important factors. It is ideal rack for cooler or freezer applications.
Last-in,first-out arrangement for your pallets
Drive-In rack offer the ability to store a large amount of similar loads in a smaller area. Selectivity is sacrificed, but storage density is outstanding. Drive In Rack can store up to 75% more pallets in the same space than selective racking -- depending on your application. It requires fewer aisles and is better cubic storage.
Zhijia-drive in layout plan.pdf
Freezing Room B,D Drive In Rack-ZJ.pdf
Specification:
Product name |
Galvanization For Unified Palletized Goods Use Drive In Racking System |
Features |
Material:high quality cold rolled steel Weight Capacity:500-4000kg/pallet store layer:1 to 7 layers per bay Structure:Assemble Finish:Powder Coating / galvanization Technique:Cold Rolled Size:Customzied Beam size:80/100/120/140/160/180/200*45*1.5-3.0 Spare Parts:As your requirement Color:blue/orange/whiate/grey/black |
Zhijia Service |
Solution:Available for free ODM&OEM:Available Certification:ISO90001/ISO14001 Warranty:warranty 5 years Business Type:Manufacturer Advantage:Factory price Response time:30 mins |
Specifications of Upright | ||||
Item | Width(mm) | Depth(mm) | Thickness(mm) | Loading Capacity(kg) |
1 | 85 | 67 | 1.6 | 7000 |
2 | 85 | 67 | 1.8 | 8500 |
3 | 85 | 67 | 2 | 10000 |
4 | 85 | 67 | 2.3 | 12500 |
5 | 100 | 67 | 1.8 | 10500 |
6 | 100 | 67 | 2 | 12000 |
7 | 100 | 67 | 2.3 | 13800 |
8 | 100 | 95 | 2 | 12000 |
9 | 100 | 95 | 2.3 | 14500 |
10 | 100 | 95 | 2.5 | 16000 |
11 | 100 | 95 | 2.75 | 18000 |
12 | 100 | 95 | 3 | 20000 |
13 | 120 | 95 | 2.5 | 17000 |
14 | 120 | 95 | 2.75 | 19000 |
15 | 120 | 95 | 3 | 21000 |
Frames:Product Details
Frames are made up of two uprights with the corresponding horizontal& diagonal bracings, footplates and accessories.
The frames have slots every 75mm to accommodate the beams and supports.

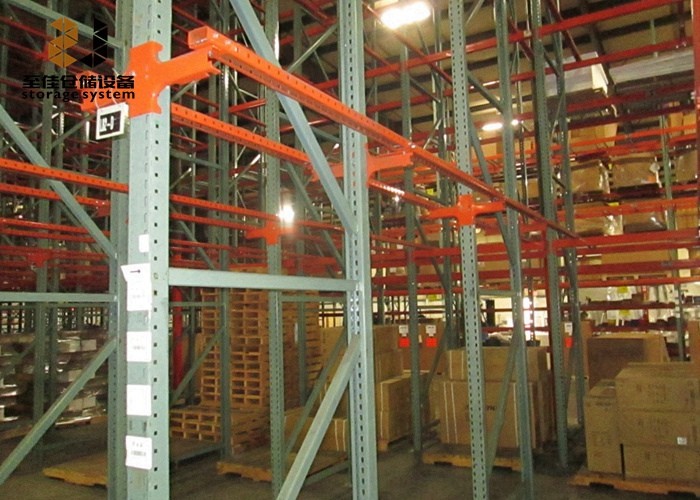

Arms:
There are two types of arms, which are single arm (left side and right side single arms) and double arm. The single arm is used in each side of the racks, while the double arm is used in between.
Pallet Support Rails:
Support rails are stamp formed and the length can be customized. The rails are designed without connectors to ensure uniform loading.
Top beams and top bracings:
Top beams and top bracings are used to increase integrity and stability of the racking system.
