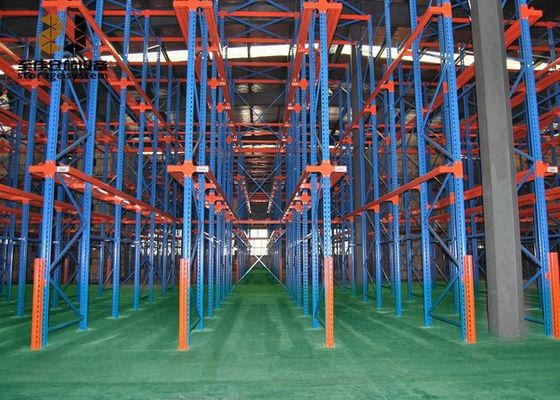

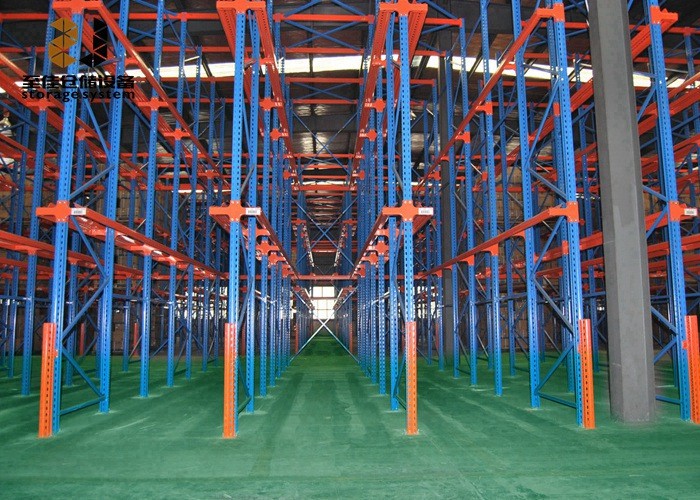

Assemble Or Welded Powder Coating Galvanization Steel Racking System

Assemble Or Welded Powder Coating Galvanization Steel Racking System
Assemble Or Welded Powder Coating Galvanization Steel Racking System Assemble Or Welded Powder Coating Galvanization Steel Racking System

Large Image :  Assemble Or Welded Powder Coating Galvanization Steel Racking System

Product Details:
Certification: AS4084
Model Number: W-DR2017523
Payment & Shipping Terms:
Minimum Order Quantity: 20 Sets
Price: Negotiation
Packaging Details: Standard export carton with bubble film
Delivery Time: 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3500 Ton/Tons per Month
Detailed Product Description
Product Name: Steel Racking System Material: High Quality Cold Rolled Steel
Weight Capacity: 500-4000kg/pallet Store Layer: 1 To 7 Layers Per Bay
Structure: Assemble Beam Size: 80/100/120/140/160/180/200*45*1.5-3.0
Scale: Heavy Duty ODM&OEM: Available
High Light:

drive in racking system

,

cold storage racking system

Assemble Or Welded Powder Coating Galvanization Steel Racking System



Description:

Steel racking system timizing available space. Elimination of aisles between shelves. Admits as many references as load lanes. Appropriate system to store homogeneous, low-rotation products with a large number of pallets per reference.

1. 90% picking efficiency, and appropriate for picking heavy goods by pallet.
2. Surface finishing with araldite static powder coating.
3. High Strength and durability, easy for complete installation.
4. Pallets can be located, accessed and moved individually.
5. Rapid handling of almost all types of palletised goods.
6. Bottom level of pallets can be stored on the floor, lowering structure costs.
7. Strength and rigidity prevents compression damage to goods.
8. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs.
9. Maximizes space use in any warehouse configuration while retaining optimum product accessibility. .

Zhijia-drive in layout plan.pdf

Freezing Room B,D Drive In Rack-ZJ.pdf



Specification:



Product name

Assemble Or Welded Powder Coating Galvanization Steel Racking System

Features

Material:high quality cold rolled steel

Weight Capacity:500-4000kg/pallet

store layer:1 to 7 layers per bay

Structure:Assemble

Finish:Powder Coating / galvanization

Technique:Cold Rolled

Size:Customzied

Beam size:80/100/120/140/160/180/200*45*1.5-3.0

Spare Parts:As your requirement

Color:blue/orange/whiate/grey/black

Zhijia Service

Solution:Available for free

ODM&OEM:Available

Certification:ISO90001/ISO14001

Warranty:warranty 5 years

Business Type:Manufacturer

Advantage:Factory price

Response time:30 mins



Specifications of Upright
Item Width(mm) Depth(mm) Thickness(mm) Loading Capacity(kg)
1 85 67 1.6 7000
2 85 67 1.8 8500
3 85 67 2 10000
4 85 67 2.3 12500
5 100 67 1.8 10500
6 100 67 2 12000
7 100 67 2.3 13800
8 100 95 2 12000
9 100 95 2.3 14500
10 100 95 2.5 16000
11 100 95 2.75 18000
12 100 95 3 20000
13 120 95 2.5 17000
14 120 95 2.75 19000
15 120 95 3 21000



Assemble Or Welded Powder Coating Galvanization Steel Racking System 0Assemble Or Welded Powder Coating Galvanization Steel Racking System 1Assemble Or Welded Powder Coating Galvanization Steel Racking System 2

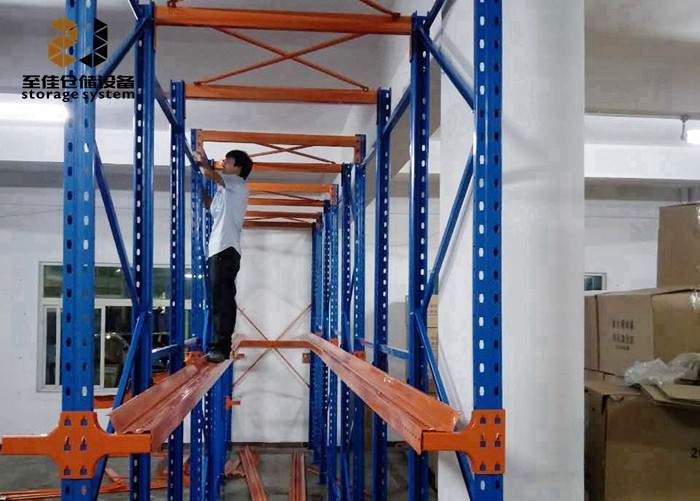

Frames:Product Details



Frames are made up of two uprights with the corresponding horizontal& diagonal bracings, footplates and accessories.
The frames have slots every 75mm to accommodate the beams and supports.


Arms:
There are two types of arms, which are single arm (left side and right side single arms) and double arm. The single arm is used in each side of the racks, while the double arm is used in between.

Pallet Support Rails:
Support rails are stamp formed and the length can be customized. The rails are designed without connectors to ensure uniform loading.

Top beams and top bracings:
Top beams and top bracings are used to increase integrity and stability of the racking system.
