Customzied Size For Unified Palletized Goods Use Racking Beams

Customzied Size For Unified Palletized Goods Use Racking Beams

    • Customzied Size For Unified Palletized Goods Use Racking Beams
    • Customzied Size For Unified Palletized Goods Use Racking Beams
  • Customzied Size For Unified Palletized Goods Use Racking Beams

    Product Details:

    Certification: AS4084
    Model Number: W-DR2017523

    Payment & Shipping Terms:

    Minimum Order Quantity: 20 Sets
    Price: Negotiation
    Packaging Details: Standard export carton with bubble film
    Delivery Time: 15-30 Days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 3500 Ton/Tons per Month
    Contact Now
    Detailed Product Description
    Product Name: Racking Beams Material: High Quality Cold Rolled Steel
    Weight Capacity: 500-4000kg/pallet Store Layer: 1 To 7 Layers Per Bay
    Structure: Assemble Size: Customzied
    ODM&OEM: Available Business Type: Manufacturer
    High Light:

    drive in racking system

    ,

    cold storage racking system

    Customzied Size For Unified Palletized Goods Use Racking Beams



    Description:

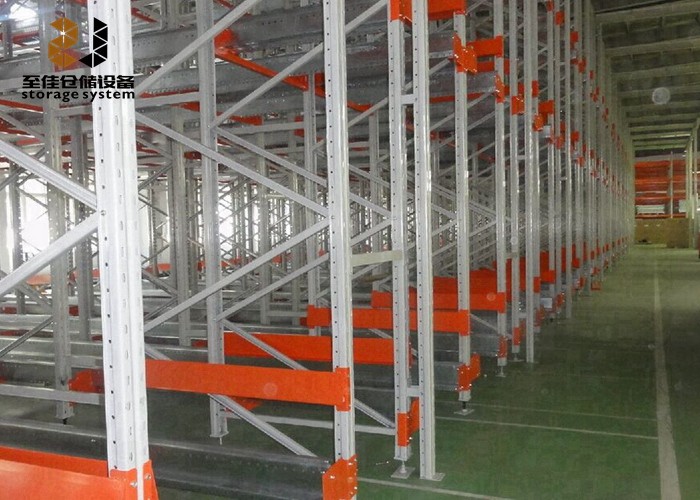

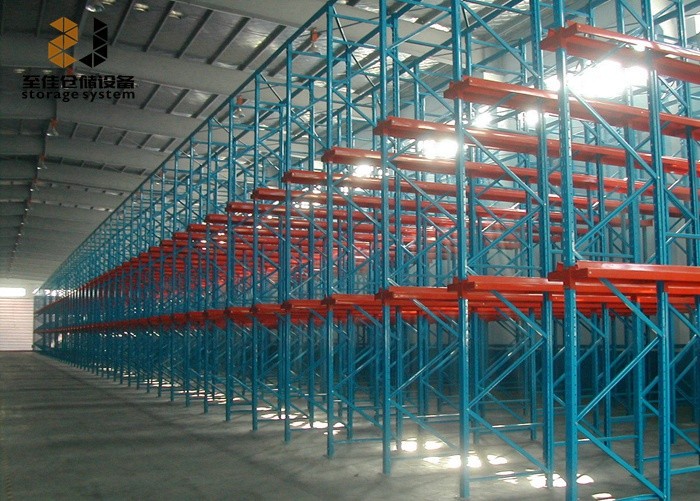

    Global Drive-in/Drive Through racking offers the highest possible densities of pallet storage, with the lowest selectivity. Consequently, it is ideal for fast moving product which moves on a "pallet-in pallet-out basis." Drive-in /Drive Through racking is a series of tunnels with rails on either side to hold the pallet. Lift trucks can drive into any given tunnel to retrieve or put away pallets. The first pallet in is the last one out unless a Drive-Through system is used whereby pallets can be loaded or retrieved from either side.


    1. Drive in rack system is last in first out store system. Suits for unified palletized goods.

    2. Drive in rack system is a high density store system. It can use most of the warehouse space. So it can save space, save store cost. In the same area, push back rack can store much more goods.

    3. Push back rack system doesn't need forklift to go into its lanes, so enhance safety for forklift operator.

    Zhijia-drive in layout plan.pdf

    Freezing Room B,D Drive In Rack-ZJ.pdf

    Specification:



    Product name

    Customzied Size For Unified Palletized Goods Use Racking Beams

    Features

    Material:high quality cold rolled steel

    Weight Capacity:500-4000kg/pallet

    store layer:1 to 7 layers per bay

    Structure:Assemble

    Finish:Powder Coating / galvanization

    Technique:Cold Rolled

    Size:Customzied

    Beam size:80/100/120/140/160/180/200*45*1.5-3.0

    Spare Parts:As your requirement

    Color:blue/orange/whiate/grey/black

    Zhijia Service

    Solution:Available for free

    ODM&OEM:Available

    Certification:ISO90001/ISO14001

    Warranty:warranty 5 years

    Business Type:Manufacturer

    Advantage:Factory price

    Response time:30 mins



    Specifications of Upright
    Item Width(mm) Depth(mm) Thickness(mm) Loading Capacity(kg)
    1 85 67 1.6 7000
    2 85 67 1.8 8500
    3 85 67 2 10000
    4 85 67 2.3 12500
    5 100 67 1.8 10500
    6 100 67 2 12000
    7 100 67 2.3 13800
    8 100 95 2 12000
    9 100 95 2.3 14500
    10 100 95 2.5 16000
    11 100 95 2.75 18000
    12 100 95 3 20000
    13 120 95 2.5 17000
    14 120 95 2.75 19000
    15 120 95 3 21000



    Customzied Size For Unified Palletized Goods Use Racking BeamsCustomzied Size For Unified Palletized Goods Use Racking BeamsCustomzied Size For Unified Palletized Goods Use Racking Beams



    Frames:Product Details



    Frames are made up of two uprights with the corresponding horizontal& diagonal bracings, footplates and accessories.
    The frames have slots every 75mm to accommodate the beams and supports.


    Arms:
    There are two types of arms, which are single arm (left side and right side single arms) and double arm. The single arm is used in each side of the racks, while the double arm is used in between.

    Pallet Support Rails:
    Support rails are stamp formed and the length can be customized. The rails are designed without connectors to ensure uniform loading.

    Top beams and top bracings:
    Top beams and top bracings are used to increase integrity and stability of the racking system.
