Product Name: | Pallet Rack Wire Decking | Material: | High Quality Cold Rolled Steel |
---|---|---|---|
Weight Capacity: | 500-4000kg/pallet | Store Layer: | 1 To 7 Layers Per Bay |
Structure: | Assemble | Size: | Customzied |
Beam Size: | 80/100/120/140/160/180/200*45*1.5-3.0 | Use: | For Unified Palletized Goods |
Highlight: | drive in racking system,cold storage racking system |

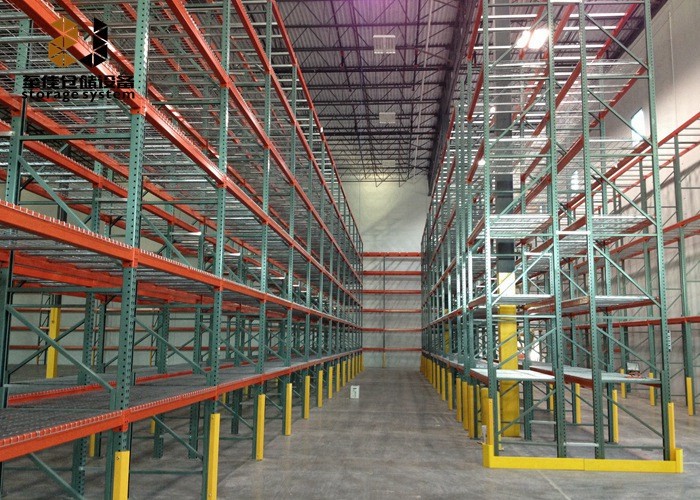

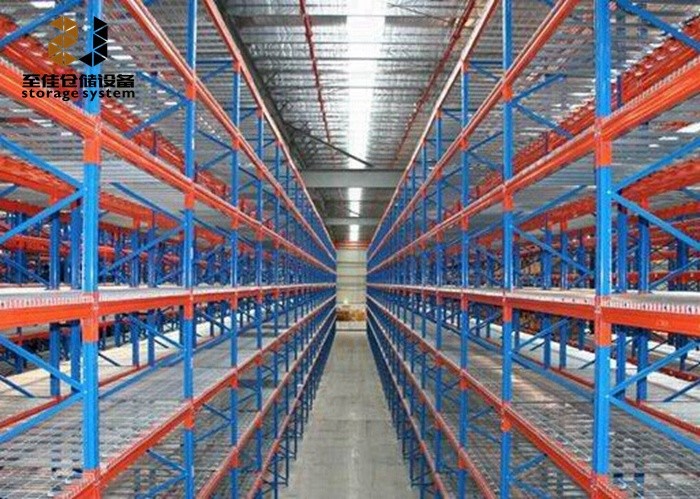

Galvanization Customzied Size Easy Assemble Pallet Rack Wire Decking
Description:
Drive in pallet racking is suitable for storing large quantity of goods with less types,goods of batchedworking and small range of selection.The goods are stored on the support guide rail with the pallet one after one after another in the direction of depth,increasing the storage density and space availability.It is quite convenient for fork truck drives into lane directly to store or take out the goods.
Zhijia-drive in layout plan.pdf
Freezing Room B,D Drive In Rack-ZJ.pdf
Specification:
Product name |
Galvanization Customzied Size Easy Assemble Pallet Rack Wire Decking |
Features |
Material:high quality cold rolled steel Weight Capacity:500-4000kg/pallet store layer:1 to 7 layers per bay Structure:Assemble Finish:Powder Coating / galvanization Technique:Cold Rolled Size:Customzied Beam size:80/100/120/140/160/180/200*45*1.5-3.0 Spare Parts:As your requirement Color:blue/orange/whiate/grey/black |
Zhijia Service |
Solution:Available for free ODM&OEM:Available Certification:ISO90001/ISO14001 Warranty:warranty 5 years Business Type:Manufacturer Advantage:Factory price Response time:30 mins |
Specifications of Upright | ||||
Item | Width(mm) | Depth(mm) | Thickness(mm) | Loading Capacity(kg) |
1 | 85 | 67 | 1.6 | 7000 |
2 | 85 | 67 | 1.8 | 8500 |
3 | 85 | 67 | 2 | 10000 |
4 | 85 | 67 | 2.3 | 12500 |
5 | 100 | 67 | 1.8 | 10500 |
6 | 100 | 67 | 2 | 12000 |
7 | 100 | 67 | 2.3 | 13800 |
8 | 100 | 95 | 2 | 12000 |
9 | 100 | 95 | 2.3 | 14500 |
10 | 100 | 95 | 2.5 | 16000 |
11 | 100 | 95 | 2.75 | 18000 |
12 | 100 | 95 | 3 | 20000 |
13 | 120 | 95 | 2.5 | 17000 |
14 | 120 | 95 | 2.75 | 19000 |
15 | 120 | 95 | 3 | 21000 |
Frames:Product Details
Frames are made up of two uprights with the corresponding horizontal& diagonal bracings, footplates and accessories.
The frames have slots every 75mm to accommodate the beams and supports.
Arms:
There are two types of arms, which are single arm (left side and right side single arms) and double arm. The single arm is used in each side of the racks, while the double arm is used in between.
Pallet Support Rails:
Support rails are stamp formed and the length can be customized. The rails are designed without connectors to ensure uniform loading.
Top beams and top bracings:
Top beams and top bracings are used to increase integrity and stability of the racking system.
