Industrial Drive Through Pallet Racking Manufacturers Size Customzied

500-2000kg Per Layer Galvanization Easy Assemble Pallet Rack Dividers

Description:

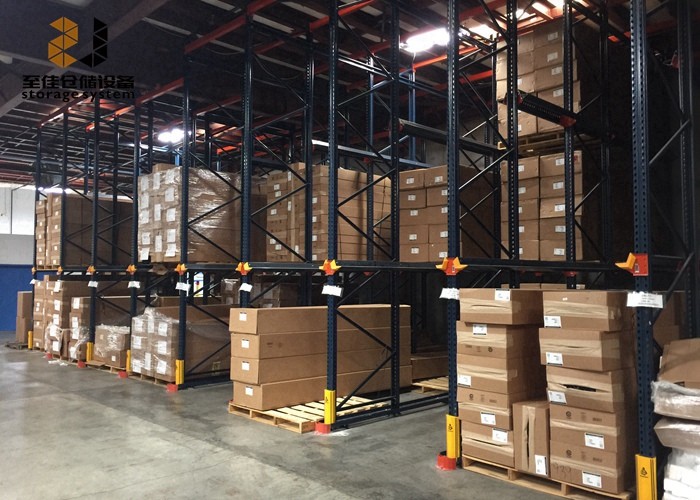

• Drive-in storage rack provide high density storage with limited space, it is mostly used in large quantity with small SKU,store in and store out in high frequency.
• It is found in Cold Store,Beverage Warehouse,Raw Material Store and Milk Packaging warehouse.

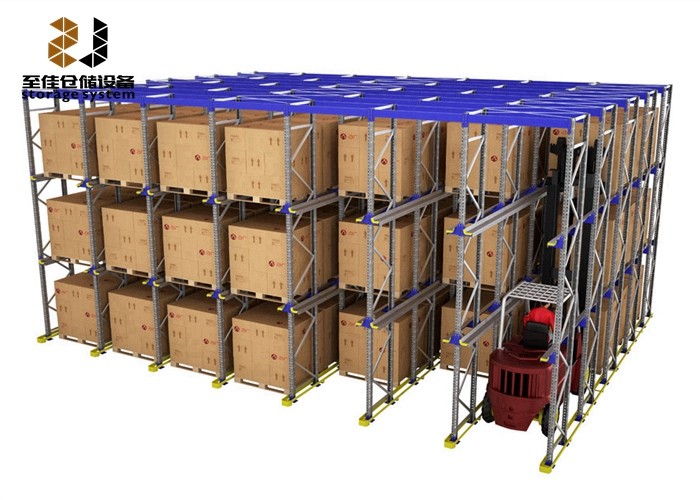

• Dive-in rack consists of a continuous block of racking not divided by aisle.
• The blocks with no cross beam,the pallet is supported on front to back edge continuous rails cantilevered from the side of upright at each pallet level.
• Handing truck can dive into block between any upright on the front face to store in and pick up pallets.

Zhijia-drive in layout plan.pdf

Freezing Room B,D Drive In Rack-ZJ.pdf

Specification:

Frames:Product Details

Frames are made up of two uprights with the corresponding horizontal& diagonal bracings, footplates and accessories.
The frames have slots every 75mm to accommodate the beams and supports.

Arms:
There are two types of arms, which are single arm (left side and right side single arms) and double arm. The single arm is used in each side of the racks, while the double arm is used in between.

Pallet Support Rails:
Support rails are stamp formed and the length can be customized. The rails are designed without connectors to ensure uniform loading.

Top beams and top bracings:
Top beams and top bracings are used to increase integrity and stability of the racking system.
