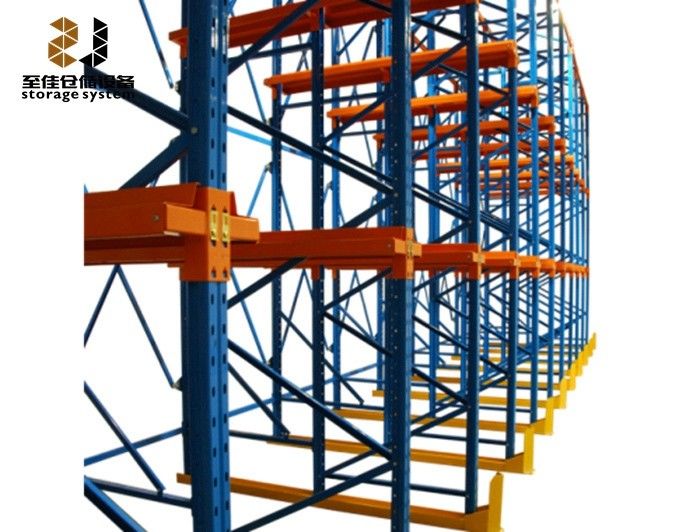

Cold Rolled Steel Warranty 5 Years Flow Through Pallet Racking
Description:
Into type shelves are widely used in high-volume, few varieties of cargo storage, packing such goods unified, single product, such as: food, tobacco, household appliances, chemicals, clothing, cold storage warehouse.
1. Drive in rack designed for storaging volume, fewer varieties of goods;
2. Forklift can pen the tray into the roadway and storing;
3. Access mode for the first-in, last-out;
4. Can greatly improve space utilization
5. Shelf: Guidable for pallet placing by tuck up bevel;
6. Concave bolted to avoid the influence of pallet moving;
7. Pin-type connector: high capacity, deform-proof, easy to install/dismount, safe and reliable.
Zhijia-drive in layout plan.pdf
Freezing Room B,D Drive In Rack-ZJ.pdf
Specification:
| Product name |
Cold Rolled Steel Warranty 5 Years Flow Through Pallet Racking
|
| Features |
Material:high quality cold rolled steel
Weight Capacity:500-4000kg/pallet
store layer:1 to 7 layers per bay
Structure:Assemble
Finish:Powder Coating / galvanization
Technique:Cold Rolled
Size:Customzied
Beam size:80/100/120/140/160/180/200*45*1.5-3.0
Spare Parts:As your requirement
Color:blue/orange/whiate/grey/black
|
| Zhijia Service |
Solution:Available for free
ODM&OEM:Available
Certification:ISO90001/ISO14001
Warranty:warranty 5 years
Business Type:Manufacturer
Advantage:Factory price
Response time:30 mins
|
| Specifications of Upright |
| Item |
Width(mm) |
Depth(mm) |
Thickness(mm) |
Loading Capacity(kg) |
| 1 |
85 |
67 |
1.6 |
7000 |
| 2 |
85 |
67 |
1.8 |
8500 |
| 3 |
85 |
67 |
2 |
10000 |
| 4 |
85 |
67 |
2.3 |
12500 |
| 5 |
100 |
67 |
1.8 |
10500 |
| 6 |
100 |
67 |
2 |
12000 |
| 7 |
100 |
67 |
2.3 |
13800 |
| 8 |
100 |
95 |
2 |
12000 |
| 9 |
100 |
95 |
2.3 |
14500 |
| 10 |
100 |
95 |
2.5 |
16000 |
| 11 |
100 |
95 |
2.75 |
18000 |
| 12 |
100 |
95 |
3 |
20000 |
| 13 |
120 |
95 |
2.5 |
17000 |
| 14 |
120 |
95 |
2.75 |
19000 |
| 15 |
120 |
95 |
3 |
21000 |
Frames:Product Details
Frames are made up of two uprights with the corresponding horizontal& diagonal bracings, footplates and accessories.
The frames have slots every 75mm to accommodate the beams and supports.
Arms:
There are two types of arms, which are single arm (left side and right side single arms) and double arm. The single arm is used in each side of the racks, while the double arm is used in between.
Pallet Support Rails:
Support rails are stamp formed and the length can be customized. The rails are designed without connectors to ensure uniform loading.
Top beams and top bracings:
Top beams and top bracings are used to increase integrity and stability of the racking system.
