Product Details:
Payment & Shipping Terms:
|
Product Name: | Drive Through Pallet Racking | Material: | High Quality Cold Rolled Steel |
---|---|---|---|
Weight Capacity: | 500-4000kg/pallet | Store Layer: | 1 To 7 Layers Per Bay |
Structure: | Assemble | Finish: | Powder Coating / Galvanization |
Installation: | Easy Assemble And Disassemble | Solution: | Available For Free |
Highlight: | drive in racking system,cold storage racking system |

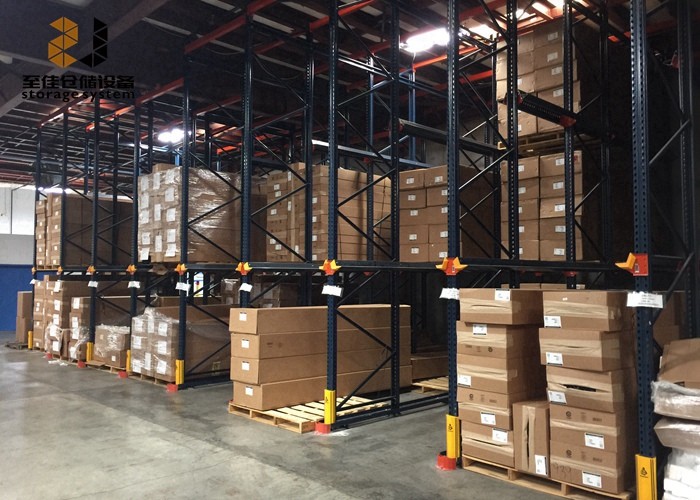

Assemble Or Welded Powder Coating Drive Through Pallet Racking
Description:
Drive through pallet racking timizing available space. Elimination of aisles between shelves. Admits as many references as load lanes. Appropriate system to store homogeneous, low-rotation products with a large number of pallets per reference.
1. Drive in rack system is last in first out store system. Suits for unified palletized goods.
2. Drive in rack system is a high density store system. It can use most of the warehouse space. So it can save space, save store cost. In the same area, push back rack can store much more goods.
3. Push back rack system doesn't need forklift to go into its lanes, so enhance safety for forklift operator.
Zhijia-drive in layout plan.pdf
Freezing Room B,D Drive In Rack-ZJ.pdf
Specification:
Product name |
Assemble Or Welded Powder Coating Drive Through Pallet Racking |
Features |
Material:high quality cold rolled steel Weight Capacity:500-4000kg/pallet store layer:1 to 7 layers per bay Structure:Assemble Finish:Powder Coating / galvanization Technique:Cold Rolled Size:Customzied Beam size:80/100/120/140/160/180/200*45*1.5-3.0 Spare Parts:As your requirement Color:blue/orange/whiate/grey/black |
Zhijia Service |
Solution:Available for free ODM&OEM:Available Certification:ISO90001/ISO14001 Warranty:warranty 5 years Business Type:Manufacturer Advantage:Factory price Response time:30 mins |
Specifications of Upright | ||||
Item | Width(mm) | Depth(mm) | Thickness(mm) | Loading Capacity(kg) |
1 | 85 | 67 | 1.6 | 7000 |
2 | 85 | 67 | 1.8 | 8500 |
3 | 85 | 67 | 2 | 10000 |
4 | 85 | 67 | 2.3 | 12500 |
5 | 100 | 67 | 1.8 | 10500 |
6 | 100 | 67 | 2 | 12000 |
7 | 100 | 67 | 2.3 | 13800 |
8 | 100 | 95 | 2 | 12000 |
9 | 100 | 95 | 2.3 | 14500 |
10 | 100 | 95 | 2.5 | 16000 |
11 | 100 | 95 | 2.75 | 18000 |
12 | 100 | 95 | 3 | 20000 |
13 | 120 | 95 | 2.5 | 17000 |
14 | 120 | 95 | 2.75 | 19000 |
15 | 120 | 95 | 3 | 21000 |

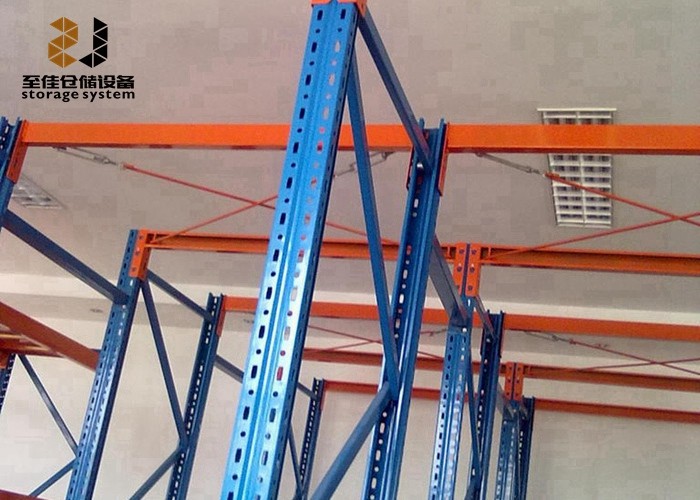

Frames:Product Details
Frames are made up of two uprights with the corresponding horizontal& diagonal bracings, footplates and accessories.
The frames have slots every 75mm to accommodate the beams and supports.
Arms:
There are two types of arms, which are single arm (left side and right side single arms) and double arm. The single arm is used in each side of the racks, while the double arm is used in between.
Pallet Support Rails:
Support rails are stamp formed and the length can be customized. The rails are designed without connectors to ensure uniform loading.
Top beams and top bracings:
Top beams and top bracings are used to increase integrity and stability of the racking system.
