Product Details:
Payment & Shipping Terms:
|
| Product Name: | Drive In Pallet Racking | Material: | High Quality Cold Rolled Steel |
|---|---|---|---|
| Weight Capacity: | 500-4000kg/pallet | Store Layer: | 1 To 7 Layers Per Bay |
| Structure: | Assemble | Finish: | Powder Coating / Galvanization |
| Technique: | Cold Rolled | Size: | Customzied |
| High Light: | drive in racking system,Drive In Pallet Racking 500kg/pallet,4000kg/pallet Commercial Racking And Shelving |
||
Assemble Or Welded Galvanization Easy Assemble Drive In Pallet Racking
Description:

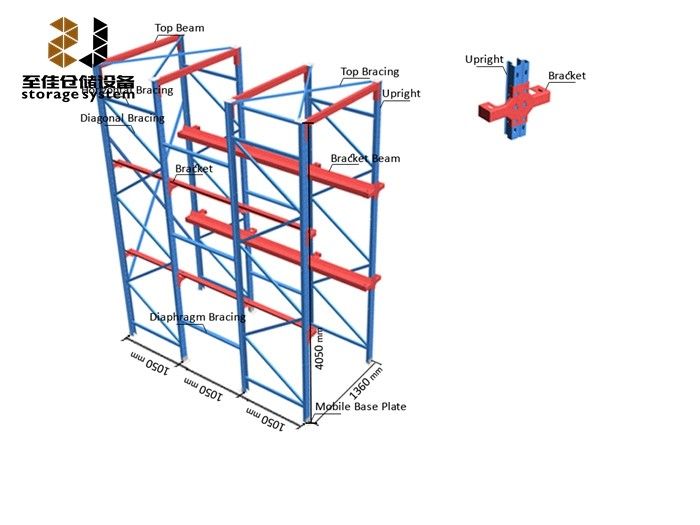

Drive in pallet racking consists of upright frame, pallet rail, single and double side arm, top beam, back beam, single and double side spacer, big and small top bracing, guide rail, upright protector and so on.
Pallet weight is no more than 1500kg. The good stack height on the pallet is no more than 2000mm.

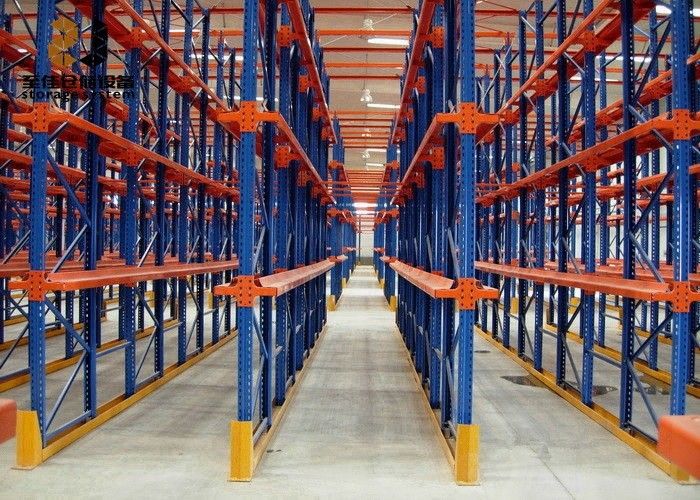

1. Drive in rack system is last in first out store system. Suits for unified palletized goods.
2. Drive in rack system is a high density store system. It can use most of the warehouse space. So it can save space, save store cost. In the same area, push back rack can store much more goods.
3. Push back rack system doesn't need forklift to go into its lanes, so enhance safety for forklift operator.
Zhijia-drive in layout plan.pdf
Freezing Room B,D Drive In Rack-ZJ.pdf
Specification:
| Product name |
Assemble Or Welded Galvanization Easy Assemble Drive In Pallet Racking |
| Features |
Material:high quality cold rolled steel Weight Capacity:500-4000kg/pallet store layer:1 to 7 layers per bay Structure:Assemble Finish:Powder Coating / galvanization Technique:Cold Rolled Size:Customzied Beam size:80/100/120/140/160/180/200*45*1.5-3.0 Spare Parts:As your requirement Color:blue/orange/whiate/grey/black |
| Zhijia Service |
Solution:Available for free ODM&OEM:Available Certification:ISO90001/ISO14001 Warranty:warranty 5 years Business Type:Manufacturer Advantage:Factory price Response time:30 mins |
| Specifications of Upright | ||||
| Item | Width(mm) | Depth(mm) | Thickness(mm) | Loading Capacity(kg) |
| 1 | 85 | 67 | 1.6 | 7000 |
| 2 | 85 | 67 | 1.8 | 8500 |
| 3 | 85 | 67 | 2 | 10000 |
| 4 | 85 | 67 | 2.3 | 12500 |
| 5 | 100 | 67 | 1.8 | 10500 |
| 6 | 100 | 67 | 2 | 12000 |
| 7 | 100 | 67 | 2.3 | 13800 |
| 8 | 100 | 95 | 2 | 12000 |
| 9 | 100 | 95 | 2.3 | 14500 |
| 10 | 100 | 95 | 2.5 | 16000 |
| 11 | 100 | 95 | 2.75 | 18000 |
| 12 | 100 | 95 | 3 | 20000 |
| 13 | 120 | 95 | 2.5 | 17000 |
| 14 | 120 | 95 | 2.75 | 19000 |
| 15 | 120 | 95 | 3 | 21000 |
Frames:Product Details
Frames are made up of two uprights with the corresponding horizontal& diagonal bracings, footplates and accessories.
The frames have slots every 75mm to accommodate the beams and supports.

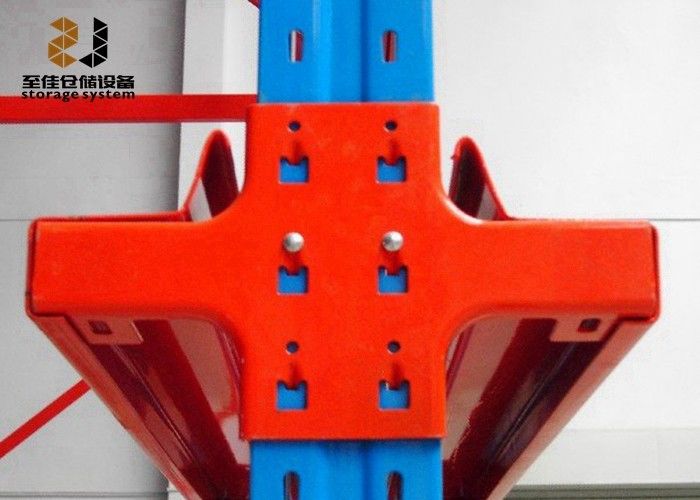

Arms:
There are two types of arms, which are single arm (left side and right side single arms) and double arm. The single arm is used in each side of the racks, while the double arm is used in between.
Pallet Support Rails:
Support rails are stamp formed and the length can be customized. The rails are designed without connectors to ensure uniform loading.
Top beams and top bracings:
Top beams and top bracings are used to increase integrity and stability of the racking system.
