Sliding High Density Mobile Shelving Systems / Storage Systems Large Capacity

2-10 SETS
MOQ
Negotiation
Price
Sliding High Density Mobile Shelving Systems / Storage Systems Large Capacity
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Movable Shelving Units
Material: Metal
Specific Use: Filing Cabinet
Usage: Library,school,office,bank
Feature: Corrosion Protection
Raw Material: High Qulity Cold Roll Steel
Warranty: 3 Years On Normal Use
Structure: Knock Down
Highlight:

Sliding High Density Mobile Shelving Systems

,

High Density Mobile Shelving Systems Large Capacity

Basic Infomation
Certification: ISO9001/14001
Model Number: W-MFC2017526
Payment & Shipping Terms
Packaging Details: Professional & Saft packaging for oversea shipment
Delivery Time: 15-30 Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 SETS
Product Description

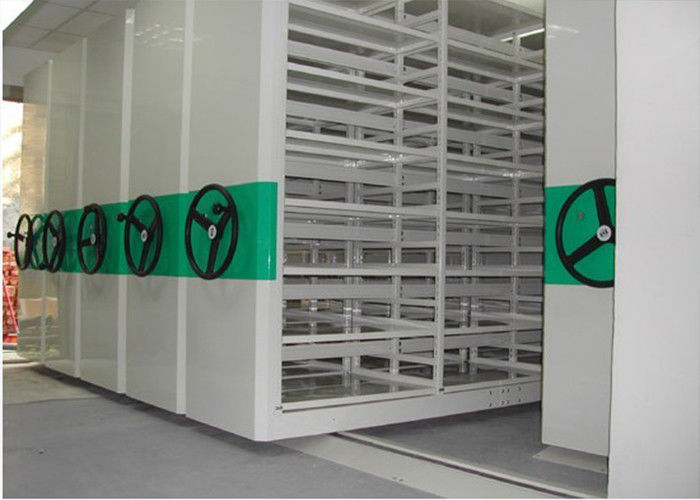

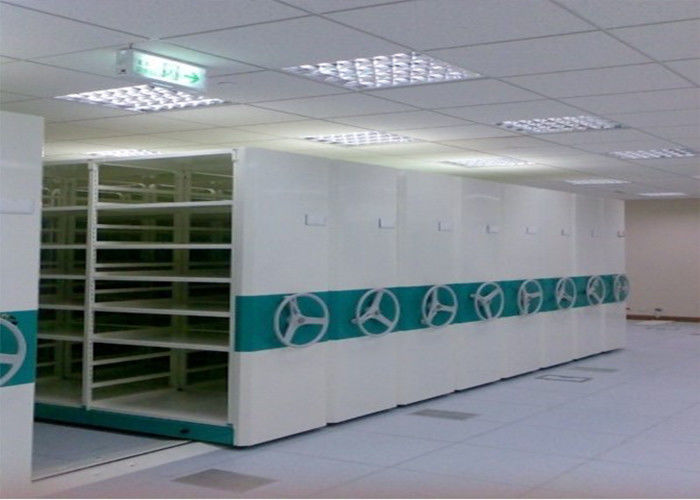

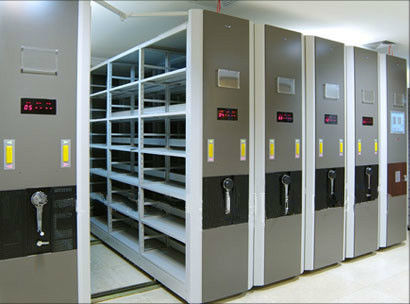

Office large capacity closed high density steel mobile file cabinet for box files


High Density Mobile Shelving Features


. Widely used in archives, library, government, bank and company documents center
. Instruction in package enables your installing very easy and fast
. Consists of fixed shelves installed on mobile chassis at bottom
. Every rack own transmission equipment
. Being compact can utilize room adequately and fully enclosed
. Only one aisle to be used, highest space utilization, nice and practical
. Sealing better, and can be manually and automatically operated
. Neat/elegant for file storage


Description:


Mobile Filing Cabinet is a cost effective way of increasing storage capacity and utilizing valuable floor space, which can double storage capacity compared to conventional static shelving.
It is widely used in offices for file storage and are designed to be easily re-located with no floor fixing. It moves along floor tracks allowing the aisle to be moved so that the required shelves can be accessed, so only one aisle is needed.
Specification:

Shelf body Stand Column Cold-roll steel 1.5mm GB708
Partition Whole body partition partition flange 25mm (reinforcing rib under the partition) Cold-roll steel 1.0mm GB708
Side plate Cold-roll steel 1.0mm GB708
Upper cover plate (whole body side plate dimension 300X100mm) Cold-roll steel 1.0mm GB708
Panel Cold-roll steel 1.0mm GB708
chassis
Main beam and whole frame board
(every wheelo frame board have six : 55mm beam bush hole. every hole have sealing
Hot rolled steel plate 3.0mm GB710
pathway Rail High quality steel plate Solid square tube GB710
Rail box High quality steel plate
26X95mm
Thickness 3.0
GB710
Pathway High quality steel plate
50X185
Thickness 3.0
GB710
Transmission part Handle crank ZG45
Bothway overload clutch
double axis transmission
GB1285
Transmission shaft Solid core 45 steel Φ20 GB699
Linkage rail Seamless steel tube Φ20X2.5 GB699
Bearing Precision bearing HR6204
GB/T
307.3-2005
Chain wheel ZG45   GB1135
Chain FR420
Φ8.5, pitch12.7
breaking force 1800kg
GB1244
Idler wheel HT20-40 Cast iron Gb11351
  Sealing rubber strip Magnetic fluid sealant
Dust shield Cold-roll steel 1.0 Gb710
Barb Hot rolled steel plate 3.0mm Gb711



Our Services
. Factory price with high quality
. OEM /ODM are available.
. Fast delivery.
. ISO,CE certified, one stop solution service for your project.
. Perfect design Exquisite technology, strict management, sincere service.
