High Density File Storage Systems Easy Assemble Mobile Filing Cabinet System

High Density File Storage Systems Easy Assemble Mobile Filing Cabinet System
High Density File Storage Systems Easy Assemble Mobile Filing Cabinet System High Density File Storage Systems Easy Assemble Mobile Filing Cabinet System

Large Image :  High Density File Storage Systems Easy Assemble Mobile Filing Cabinet System

Product Details:
Certification: ISO9001/14001
Model Number: W-MFC2017526
Payment & Shipping Terms:
Minimum Order Quantity: 2-10 SETS
Price: Negotiation
Packaging Details: Professional & Saft packaging for oversea shipment
Delivery Time: 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 SETS
Detailed Product Description
Product Name: Mobile Filing Cabinet System Raw Material: High Qulity Cold Roll Steel
Structure: Knock Down / Easy Assemble Lock: Safety Lock And 3-point Key Lock
Layer Of Each bay: 6 Layers Or Customized Spare Parts: As Your Requirement
ODM&OEM: Available Business Type: Manufacturer
Highlight:

ISO9001 High Density File Storage Systems

,

High Density Mobile Filing Systems

,

Easy Assemble Mobile Filing Cabinet System

Easy Assemble Safety Lock 6 Layers Powder Coating Mobile Wire Shelving



Description:

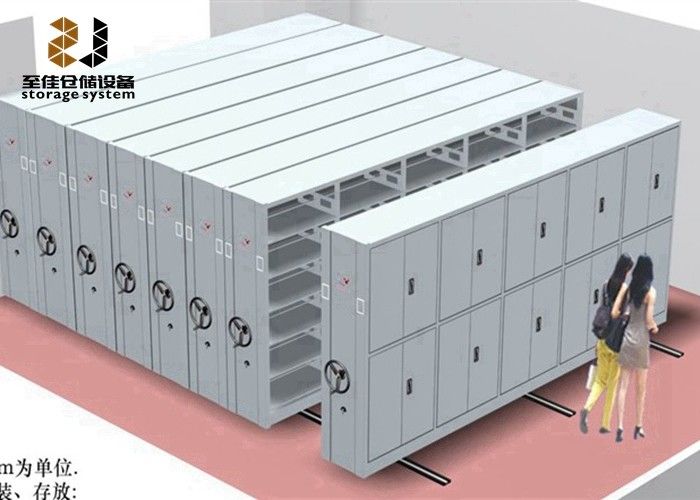

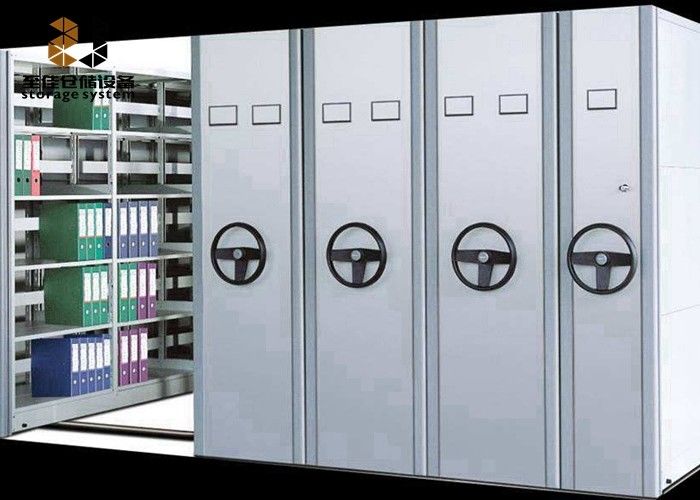

Mobile Wire Shelving​ is of multiple bay types, where the compactor bodies are mounted on trolleys which sway on stainless steel tracks. Stainless Rotating wheel type handles are provided to turn the wheel and roll the trolleys with the help of series linkage and sprockets. The wheel knob can be protected with the help of a cam lock.

Mobile shelves is mainly used for filings, documents and other securities storage, in advantages of confidential, high space utilization and easy access. And it is widely used in offices,warehouses,stock rooms,factories,hospitals,archive and document storage centres etc.

Features:



Raw material:High Qulity Cold Roll Steel

Structure:Knock down,easy assemble

Lock:Safety lock and 3-point key lock

Layer of each:bay 6 layers or customized

Thickness:0.8-2.5mm

Surface:Electrostatic Powder Coating

Spare parts:As your requirement

Color:grey



Solution:Available for free

ODM&OEM:Available

Certification:ISO90001/ISO14001

Warranty:warranty 5 years

Business Type:Manufacturer

Advantage:Factory price

Response time:30 mins





Specification:



Shelf body Stand Column Cold-roll steel 1.5mm GB708
Partition Whole body partition partition flange 25mm (reinforcing rib under the partition) Cold-roll steel 1.0mm GB708
Side plate Cold-roll steel 1.0mm GB708
Upper cover plate (whole body side plate dimension 300X100mm) Cold-roll steel 1.0mm GB708
Panel Cold-roll steel 1.0mm GB708
chassis Main beam and whole frame board Hot rolled steel plate 3.0mm GB710
(every wheelo frame board have six : 55mm beam bush hole. every hole have sealing
pathway Rail High quality steel plate Solid square tube GB710
Rail box High quality steel plate 26X95mm GB710
Thickness 3.0
Pathway High quality steel plate 50X185 GB710
Thickness 3.0
Transmission part Handle crank ZG45 Bothway overload clutch GB1285
double axis transmission
Transmission shaft Solid core 45 steel Φ20 GB699
Linkage rail Seamless steel tube Φ20X2.5 GB699
Bearing Precision bearing HR6204 GB/T
307.3-2005
Chain wheel ZG45   GB1135
Chain FR420 Φ8.5, pitch12.7 GB1244
breaking force 1800kg
Idler wheel HT20-40 Cast iron Gb11351
  Sealing rubber strip Magnetic fluid sealant
Dust shield Cold-roll steel 1 Gb710
Barb Hot rolled steel plate 3.0mm Gb711



High Density File Storage Systems Easy Assemble Mobile Filing Cabinet System 0High Density File Storage Systems Easy Assemble Mobile Filing Cabinet System 1High Density File Storage Systems Easy Assemble Mobile Filing Cabinet System 2
