Product Details:
Payment & Shipping Terms:
|
Product Name: | High Density Storage System | Raw Material: | High Qulity Cold Roll Steel |
---|---|---|---|
Structure: | Knock Down、easy Assemble | Lock: | Safety Lock And 3-point Key Lock |
Layer Of Each bay: | 6 Layers Or Customized | Thickness: | 0.8-2.5mm |
Usage: | Library,school,office,bank | Feature: | Corrosion Protection |
Highlight: | 2.5mm Moving File Cabinets Shelf System,0.8mm Moving File Cabinets Shelf System,Ratproof High Density Storage System |

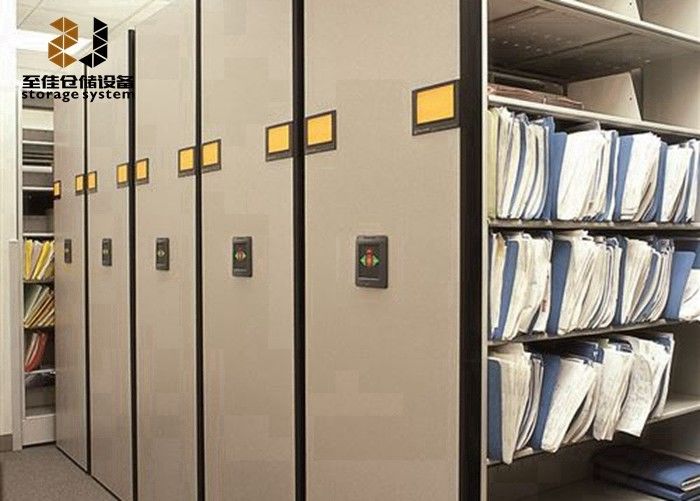

Knock Down Powder Coating Corrosion Protection High Density Shelving
Description:
1. High density shelving made of cold roll steel .undergone phosphorizing and acid-washing.
2. Electrostatic powder coating technology to get environmental protection.
3. Support holes of inner clapboard adopted with modularization technology.position can be
adjusted freely.
4. The joint adopt interlock and interfix structure. which makes users assemble and
disaddemble easily.
5. Sealing better .moistureproof.mothproof.dustproof.ratproof
6. Can be manually and automatically operated.
7. Maximum space utilization.modern and practical.
8. Suitable for files,books disks and so on.
9. Widely used in archives,library,government,bank and company documents center.
10. Customized specifications can be accepted
Features:
Raw material:High Qulity Cold Roll Steel
Structure:Knock down,easy assemble
Lock:Safety lock and 3-point key lock
Layer of each:bay 6 layers or customized
Thickness:0.8-2.5mm
Surface:Electrostatic Powder Coating
Spare parts:As your requirement
Color:grey
Zhijia Service:
Solution:Available for free
ODM&OEM:Available
Certification:ISO90001/ISO14001
Warranty:warranty 5 years
Business Type:Manufacturer
Advantage:Factory price
Response time:30 mins
Specification:
Shelf body | Stand Column | Cold-roll steel | 1.5mm | GB708 |
Partition Whole body partition partition flange 25mm (reinforcing rib under the partition) | Cold-roll steel | 1.0mm | GB708 | |
Side plate | Cold-roll steel | 1.0mm | GB708 | |
Upper cover plate (whole body side plate dimension 300X100mm) | Cold-roll steel | 1.0mm | GB708 | |
Panel | Cold-roll steel | 1.0mm | GB708 | |
chassis | Main beam and whole frame board | Hot rolled steel plate | 3.0mm | GB710 |
(every wheelo frame board have six : 55mm beam bush hole. every hole have sealing | ||||
pathway | Rail | High quality steel plate | Solid square tube | GB710 |
Rail box | High quality steel plate | 26X95mm | GB710 | |
Thickness 3.0 | ||||
Pathway | High quality steel plate | 50X185 | GB710 | |
Thickness 3.0 | ||||
Transmission part | Handle crank | ZG45 | Bothway overload clutch | GB1285 |
double axis transmission | ||||
Transmission shaft | Solid core 45 steel | Φ20 | GB699 | |
Linkage rail | Seamless steel tube | Φ20X2.5 | GB699 | |
Bearing | Precision bearing | HR6204 | GB/T | |
307.3-2005 | ||||
Chain wheel | ZG45 | GB1135 | ||
Chain | FR420 | Φ8.5, pitch12.7 | GB1244 | |
breaking force 1800kg | ||||
Idler wheel | HT20-40 | Cast iron | Gb11351 | |
Sealing rubber strip | Magnetic fluid sealant | |||
Dust shield | Cold-roll steel | 1 | Gb710 | |
Barb | Hot rolled steel plate | 3.0mm | Gb711 |
