Product Details:
Payment & Shipping Terms:
|
| Product Name: | High Density Shelving Systems | Raw Material: | High Qulity Cold Roll Steel |
|---|---|---|---|
| Lock: | Safety Lock And 3-point Key Lock | Layer Of Each bay: | 6 Layers Or Customized |
| Thickness: | 0.8-2.5mm | Structure: | Knock Down / Easy Assemble |
| Usage: | Library,school,office,bank | Feature: | Corrosion Protection |
| High Light: | Durable High Density Shelving Systems,Warehouse High Density Shelving Systems |
||

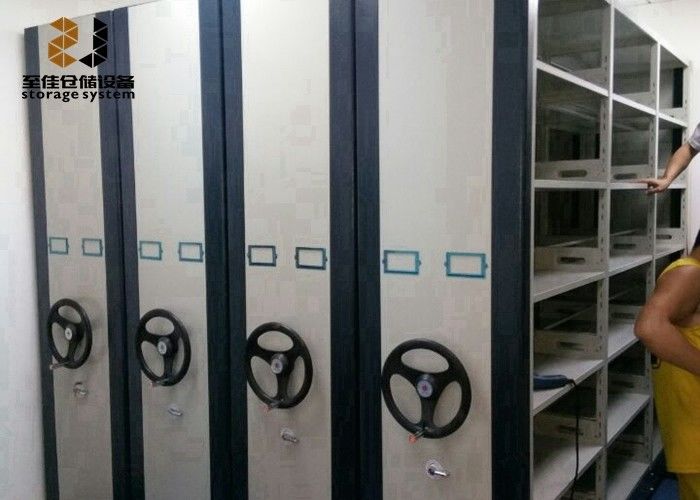

Coldroll Steel Easy Assemble Safety Lock High Density Storage System
Description:
High Density Storage System is very cost effective way to maximise your storage capacity,increase your storage space with mobile shelving and storage solutions from Storage Systems. Whether you need home, office or industrial mobile storage shelving systems, we have durable and cost-effective products available for you.
We specialise in manufacture of value-for-money storage systems to maximise your space and freeing up more space
Usually used in offices, warehouses, stock rooms, factories, hospitals,archive and document storage centres etc.with superior quality, affordable mobile shelving and custom-designed service .Whatever your issue, we can provide a solution for you.
Features:
Raw material:High Qulity Cold Roll Steel
Structure:Knock down,easy assemble
Lock:Safety lock and 3-point key lock
Layer of each:bay 6 layers or customized
Thickness:0.8-2.5mm
Surface:Electrostatic Powder Coating
Spare parts:As your requirement
Color:grey
Zhijia Service:
Solution:Available for free
ODM&OEM:Available
Certification:ISO90001/ISO14001
Warranty:warranty 5 years
Business Type:Manufacturer
Advantage:Factory price
Response time:30 mins
Specification:
| Shelf body | Stand Column | Cold-roll steel | 1.5mm | GB708 |
| Partition Whole body partition partition flange 25mm (reinforcing rib under the partition) | Cold-roll steel | 1.0mm | GB708 | |
| Side plate | Cold-roll steel | 1.0mm | GB708 | |
| Upper cover plate (whole body side plate dimension 300X100mm) | Cold-roll steel | 1.0mm | GB708 | |
| Panel | Cold-roll steel | 1.0mm | GB708 | |
| chassis | Main beam and whole frame board | Hot rolled steel plate | 3.0mm | GB710 |
| (every wheelo frame board have six : 55mm beam bush hole. every hole have sealing | ||||
| pathway | Rail | High quality steel plate | Solid square tube | GB710 |
| Rail box | High quality steel plate | 26X95mm | GB710 | |
| Thickness 3.0 | ||||
| Pathway | High quality steel plate | 50X185 | GB710 | |
| Thickness 3.0 | ||||
| Transmission part | Handle crank | ZG45 | Bothway overload clutch | GB1285 |
| double axis transmission | ||||
| Transmission shaft | Solid core 45 steel | Φ20 | GB699 | |
| Linkage rail | Seamless steel tube | Φ20X2.5 | GB699 | |
| Bearing | Precision bearing | HR6204 | GB/T | |
| 307.3-2005 | ||||
| Chain wheel | ZG45 | GB1135 | ||
| Chain | FR420 | Φ8.5, pitch12.7 | GB1244 | |
| breaking force 1800kg | ||||
| Idler wheel | HT20-40 | Cast iron | Gb11351 | |
| Sealing rubber strip | Magnetic fluid sealant | |||
| Dust shield | Cold-roll steel | 1 | Gb710 | |
| Barb | Hot rolled steel plate | 3.0mm | Gb711 |
