Product Details:
Payment & Shipping Terms:
|
| Type: | High Density Storage Cabinets | Material: | Metal |
|---|---|---|---|
| Specific Use: | Filing Cabinet | Usage: | Library,school,office,bank |
| Feature: | Corrosion Protection | Raw Material: | High Qulity Cold Roll Steel |
| Warranty: | 3 Years On Normal Use | Structure: | Knock Down |
| High Light: | OEM Moving File Cabinets Shelf System,ODM Moving File Cabinets Shelf System |
||
Easy Operation Mechanical Sliding and Mobile File Cabinet with CE Certification
Description:

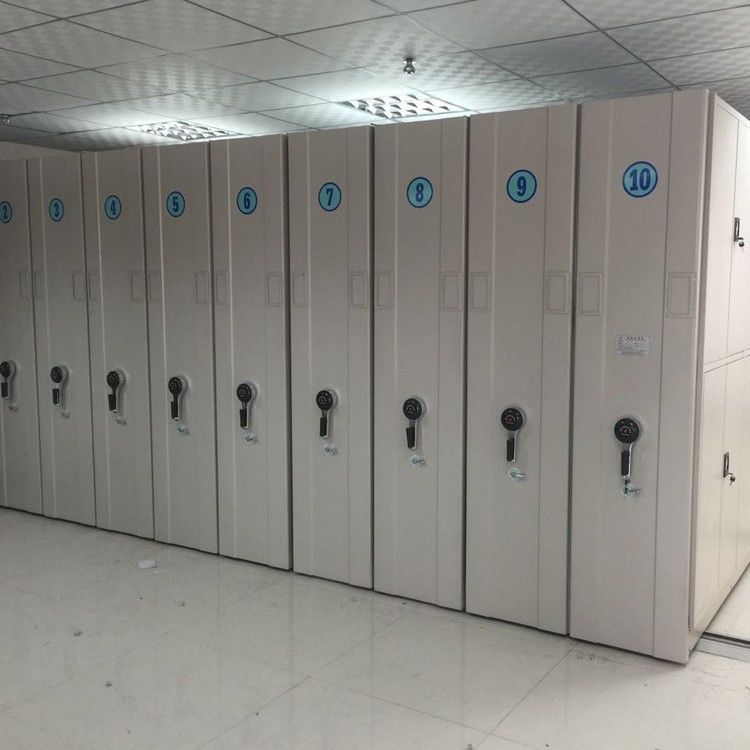

mobile storage systems is a cost effective way of increasing storage capacity and utilizing valuable floor space, which can double storage capacity compared to conventional static shelving.
It is widely used in offices for file storage and are designed to be easily re-located with no floor fixing. It moves along floor tracks allowing the aisle to be moved so that the required shelves can be accessed, so only one aisle is needed.
Features
. Widely used in archives, library, government, bank and company documents center
. Instruction in package enables your installing very easy and fast

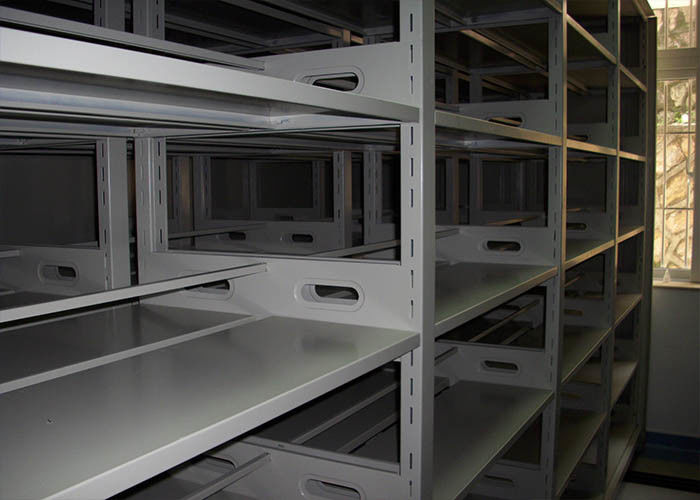

. Consists of fixed shelves installed on mobile chassis at bottom
. Every rack own transmission equipment
. Being compact can utilize room adequately and fully enclosed
. Only one aisle to be used, highest space utilization, nice and practical
. Sealing better, and can be manually and automatically operated
. Neat/elegant for file storage
Specification:
| Shelf body | Stand Column | Cold-roll steel | 1.5mm | GB708 |
| Partition Whole body partition partition flange 25mm (reinforcing rib under the partition) | Cold-roll steel | 1.0mm | GB708 | |
| Side plate | Cold-roll steel | 1.0mm | GB708 | |
| Upper cover plate (whole body side plate dimension 300X100mm) | Cold-roll steel | 1.0mm | GB708 | |
| Panel | Cold-roll steel | 1.0mm | GB708 | |
| chassis |
Main beam and whole frame board
(every wheelo frame board have six : 55mm beam bush hole. every hole have sealing |
Hot rolled steel plate | 3.0mm | GB710 |
| pathway | Rail | High quality steel plate | Solid square tube | GB710 |
| Rail box | High quality steel plate |
26X95mm
Thickness 3.0
|
GB710 | |
| Pathway | High quality steel plate |
50X185
Thickness 3.0
|
GB710 | |

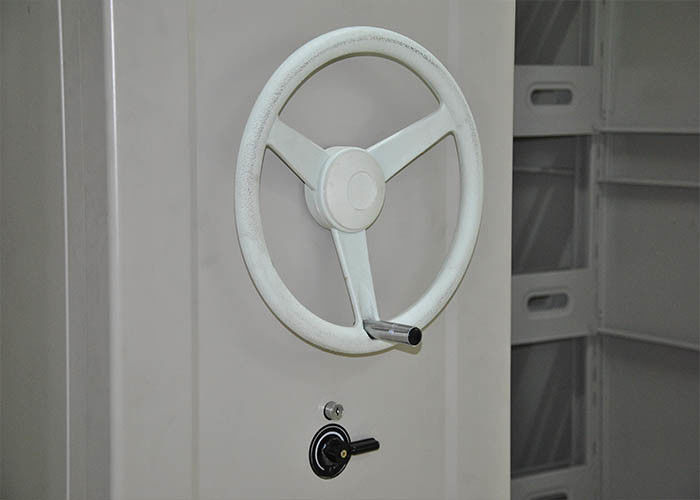

| Transmission part | Handle crank | ZG45 |
Bothway overload clutch
double axis transmission |
GB1285 |
| Transmission shaft | Solid core 45 steel | Φ20 | GB699 | |
| Linkage rail | Seamless steel tube | Φ20X2.5 | GB699 | |
| Bearing | Precision bearing | HR6204 |
GB/T
307.3-2005
|
|
| Chain wheel | ZG45 | GB1135 | ||
| Chain | FR420 |
Φ8.5, pitch12.7
breaking force 1800kg |
GB1244 | |
| Idler wheel | HT20-40 | Cast iron | Gb11351 | |
| Sealing rubber strip | Magnetic fluid sealant | |||
| Dust shield | Cold-roll steel | 1.0 | Gb710 | |
| Barb | Hot rolled steel plate | 3.0mm | Gb711 |
Our Services
. Factory price with high quality
. OEM /ODM are available.
. Fast delivery.
. ISO,CE certified, one stop solution service for your project.
. Perfect design Exquisite technology, strict management, sincere service.
