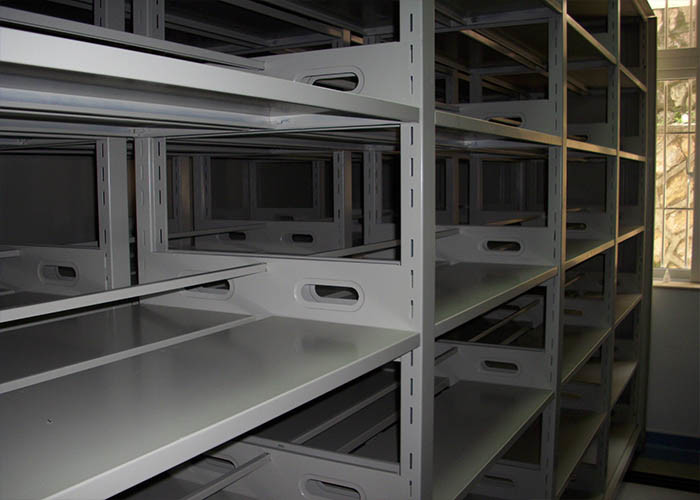

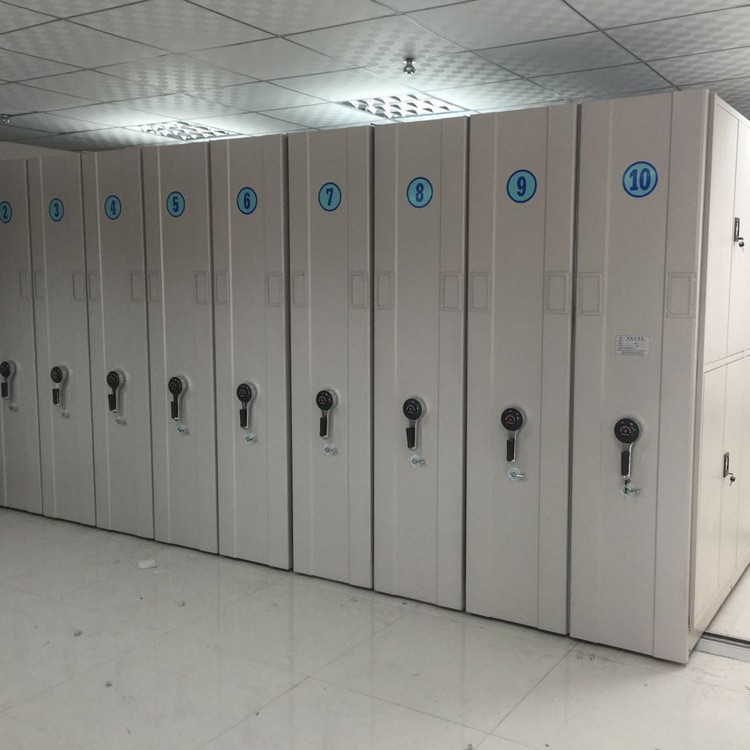

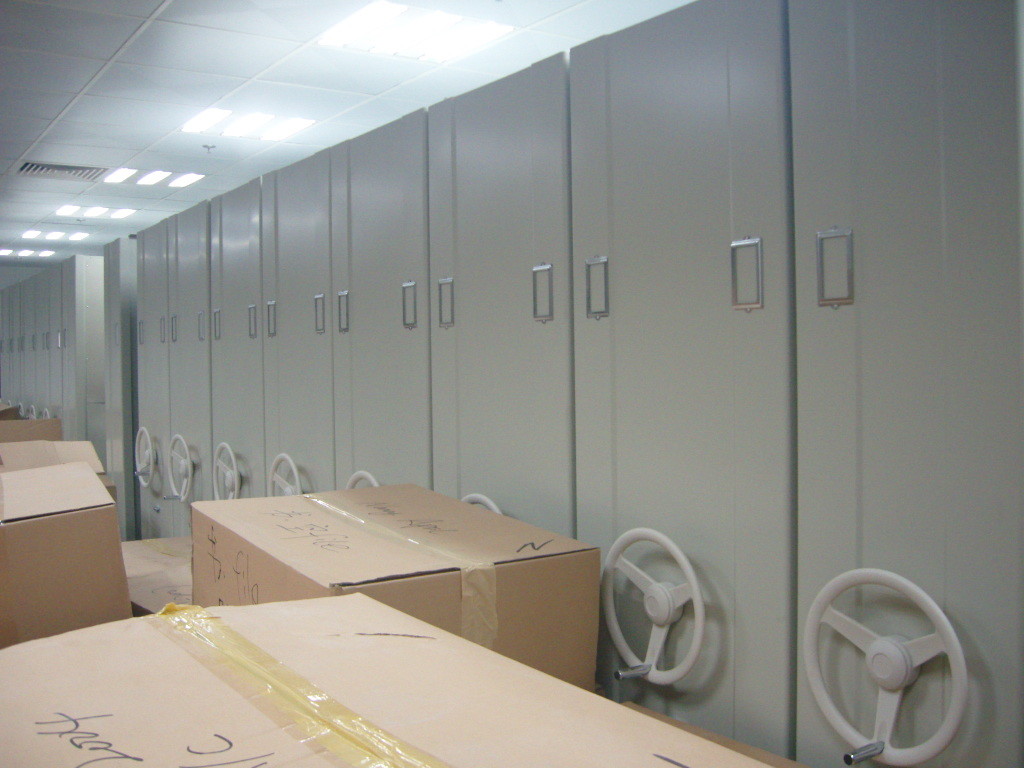

OEM ODM Moving File Cabinets Shelf System For Archives Library

OEM ODM Moving File Cabinets Shelf System For Archives Library
OEM ODM Moving File Cabinets Shelf System For Archives Library OEM ODM Moving File Cabinets Shelf System For Archives Library OEM ODM Moving File Cabinets Shelf System For Archives Library OEM ODM Moving File Cabinets Shelf System For Archives Library

Large Image :  OEM ODM Moving File Cabinets Shelf System For Archives Library

Product Details:
Certification: ISO9001/14001
Model Number: W-MFC2017526
Payment & Shipping Terms:
Minimum Order Quantity: 2-10 SETS
Price: Negotiation
Packaging Details: Professional & Saft packaging for oversea shipment
Delivery Time: 15-30 Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 SETS
Detailed Product Description
Type: High Density Storage Cabinets Material: Metal
Specific Use: Filing Cabinet Usage: Library,school,office,bank
Feature: Corrosion Protection Raw Material: High Qulity Cold Roll Steel
Warranty: 3 Years On Normal Use Structure: Knock Down
Highlight:

OEM Moving File Cabinets Shelf System

,

ODM Moving File Cabinets Shelf System

Easy Operation Mechanical Sliding and Mobile File Cabinet with CE Certification


Description:
mobile storage systems is a cost effective way of increasing storage capacity and utilizing valuable floor space, which can double storage capacity compared to conventional static shelving.
It is widely used in offices for file storage and are designed to be easily re-located with no floor fixing. It moves along floor tracks allowing the aisle to be moved so that the required shelves can be accessed, so only one aisle is needed.

Features
. Widely used in archives, library, government, bank and company documents center
. Instruction in package enables your installing very easy and fast
. Consists of fixed shelves installed on mobile chassis at bottom
. Every rack own transmission equipment
. Being compact can utilize room adequately and fully enclosed
. Only one aisle to be used, highest space utilization, nice and practical
. Sealing better, and can be manually and automatically operated
. Neat/elegant for file storage
Specification:

Shelf body Stand Column Cold-roll steel 1.5mm GB708
Partition Whole body partition partition flange 25mm (reinforcing rib under the partition) Cold-roll steel 1.0mm GB708
Side plate Cold-roll steel 1.0mm GB708
Upper cover plate (whole body side plate dimension 300X100mm) Cold-roll steel 1.0mm GB708
Panel Cold-roll steel 1.0mm GB708
chassis
Main beam and whole frame board
(every wheelo frame board have six : 55mm beam bush hole. every hole have sealing
Hot rolled steel plate 3.0mm GB710
pathway Rail High quality steel plate Solid square tube GB710
Rail box High quality steel plate
26X95mm
Thickness 3.0
GB710
Pathway High quality steel plate
50X185
Thickness 3.0
GB710

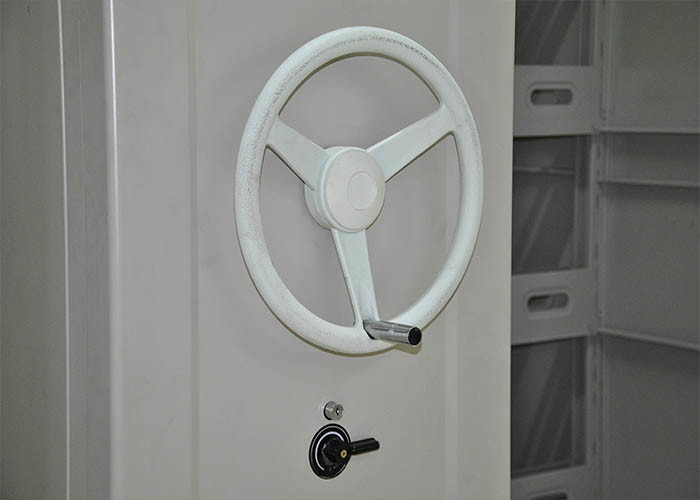

Transmission part Handle crank ZG45
Bothway overload clutch
double axis transmission
GB1285
Transmission shaft Solid core 45 steel Φ20 GB699
Linkage rail Seamless steel tube Φ20X2.5 GB699
Bearing Precision bearing HR6204
GB/T
307.3-2005
Chain wheel ZG45   GB1135
Chain FR420
Φ8.5, pitch12.7
breaking force 1800kg
GB1244
Idler wheel HT20-40 Cast iron Gb11351
  Sealing rubber strip Magnetic fluid sealant
Dust shield Cold-roll steel 1.0 Gb710
Barb Hot rolled steel plate 3.0mm Gb711


Our Services
. Factory price with high quality
. OEM /ODM are available.
. Fast delivery.
. ISO,CE certified, one stop solution service for your project.
. Perfect design Exquisite technology, strict management, sincere service.
OEM ODM Moving File Cabinets Shelf System For Archives Library 0OEM ODM Moving File Cabinets Shelf System For Archives Library 1
