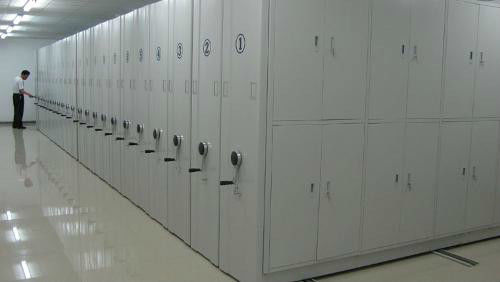

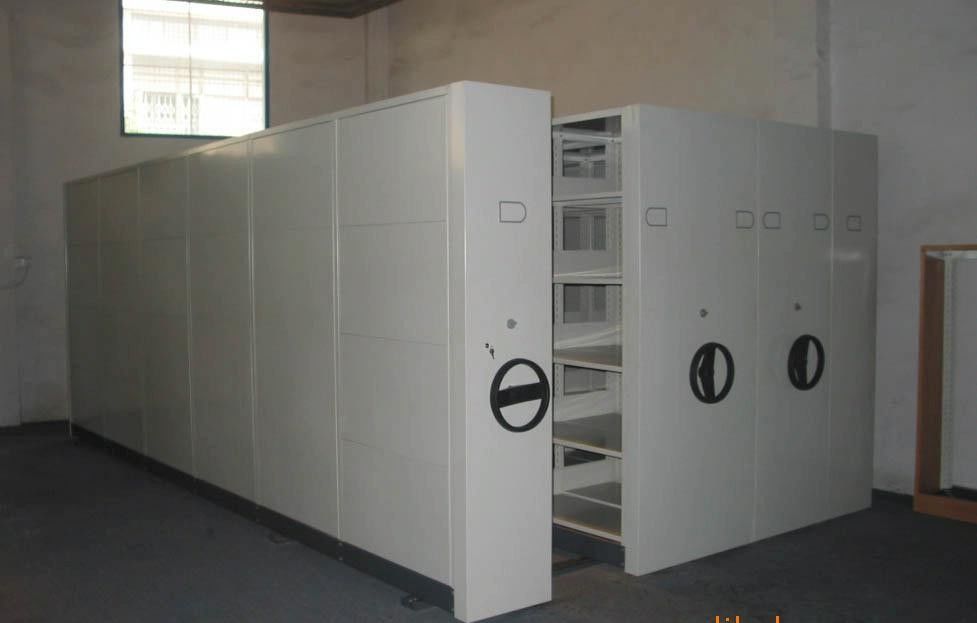

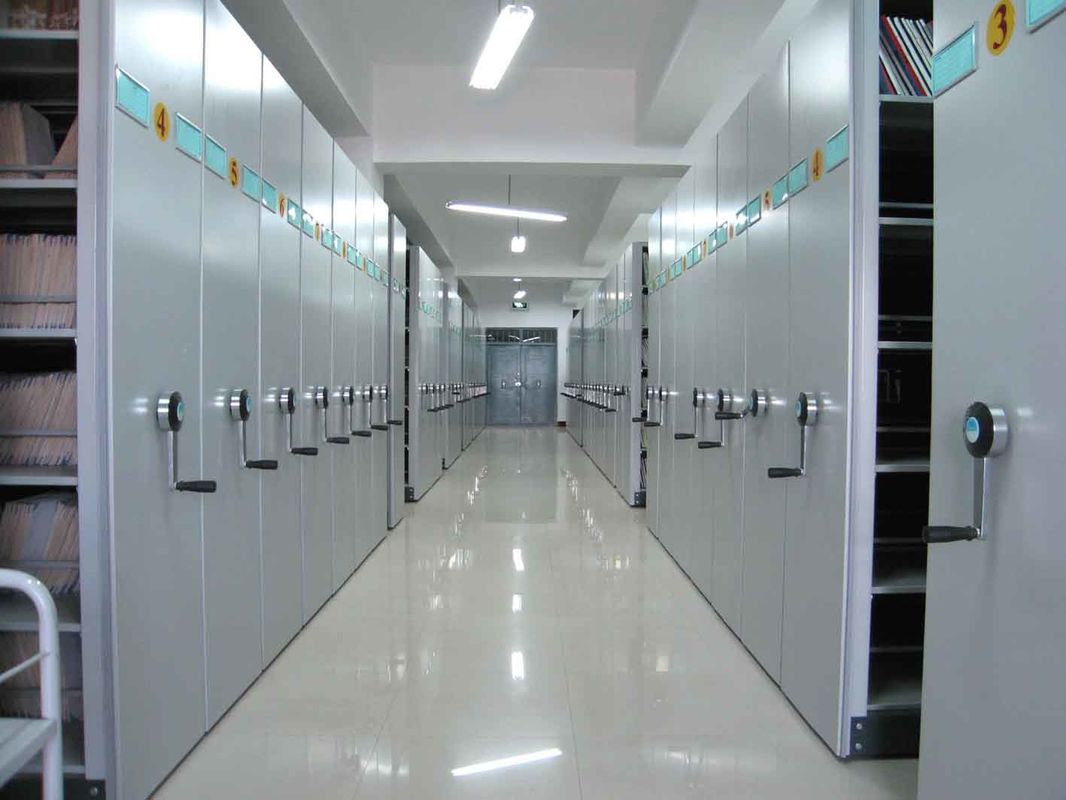

Steel Rolling High Density File Storage Systems For Library / School / Office / Bank

Steel Rolling High Density File Storage Systems For Library / School / Office / Bank
Steel Rolling High Density File Storage Systems For Library / School / Office / Bank Steel Rolling High Density File Storage Systems For Library / School / Office / Bank Steel Rolling High Density File Storage Systems For Library / School / Office / Bank Steel Rolling High Density File Storage Systems For Library / School / Office / Bank

Large Image :  Steel Rolling High Density File Storage Systems For Library / School / Office / Bank

Product Details:
Certification: ISO9001/14001
Model Number: W-MFC2017420
Payment & Shipping Terms:
Minimum Order Quantity: 2-10 SETS
Price: Negotiation
Packaging Details: Professional & Saft packaging for oversea shipment
Delivery Time: 15-30 Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 SETS
Detailed Product Description
Type: Rolling File Storage System Material: Metal
Specific Use: Filing Cabinet Usage: Library,school,office,bank
Feature: Corrosion Protection Raw Material: High Qulity Cold Roll Steel
Warranty: 3 Years On Normal Use Structure: Knock Down
High Light:

Steel Rolling High Density File Storage Systems

,

Library High Density File Storage Systems

Metal movable compactor mobile filing cabinet steel archives mobile shelving


Description:
Compact movable shelving systemis a cost effective way of increasing storage capacity and utilizing valuable floor space, which can double storage capacity compared to conventional static shelving.
It is widely used in offices for file storage and are designed to be easily re-located with no floor fixing. It moves along floor tracks allowing the aisle to be moved so that the required shelves can be accessed, so only one aisle is needed.

Our Services
. Factory price with high quality
. OEM /ODM are available.
. Fast delivery.
. ISO,CE certified, one stop solution service for your project.
. Perfect design Exquisite technology, strict management, sincere service.
Specification:

Shelf body Stand Column Cold-roll steel 1.5mm GB708
Partition Whole body partition partition flange 25mm (reinforcing rib under the partition) Cold-roll steel 1.0mm GB708
Side plate Cold-roll steel 1.0mm GB708
Upper cover plate (whole body side plate dimension 300X100mm) Cold-roll steel 1.0mm GB708
Panel Cold-roll steel 1.0mm GB708
chassis
Main beam and whole frame board
(every wheelo frame board have six : 55mm beam bush hole. every hole have sealing
Hot rolled steel plate 3.0mm GB710
pathway Rail High quality steel plate Solid square tube GB710
Rail box High quality steel plate
26X95mm
Thickness 3.0
GB710
Pathway High quality steel plate
50X185
Thickness 3.0
GB710
Transmission part Handle crank ZG45
Bothway overload clutch
double axis transmission
GB1285
Transmission shaft Solid core 45 steel Φ20 GB699
Linkage rail Seamless steel tube Φ20X2.5 GB699
Bearing Precision bearing HR6204
GB/T
307.3-2005
Chain wheel ZG45   GB1135
Chain FR420
Φ8.5, pitch12.7
breaking force 1800kg
GB1244
Idler wheel HT20-40 Cast iron Gb11351
  Sealing rubber strip Magnetic fluid sealant
Dust shield Cold-roll steel 1.0 Gb710
Barb Hot rolled steel plate 3.0mm Gb711


Features
. Widely used in archives, library, government, bank and company documents center
. Instruction in package enables your installing very easy and fast
. Consists of fixed shelves installed on mobile chassis at bottom
. Every rack own transmission equipment
. Being compact can utilize room adequately and fully enclosed
. Only one aisle to be used, highest space utilization, nice and practical
. Sealing better, and can be manually and automatically operated
. Neat/elegant for file storage
