Product Details:
Payment & Shipping Terms:
|
| Product Name: | Space Saver Shelves | Raw Material: | High Qulity Cold Roll Steel |
|---|---|---|---|
| Structure: | Knock Down、easy Assemble | Lock: | Safety Lock And 3-point Key Lock |
| Layer Of Each bay: | 6 Layers Or Customized | Type: | Metal Sliding File Cabinets |
| ODM&OEM: | Available | Response Time: | 30 Mins |
| High Light: | Six Layers Mobile High Density Shelving,Mobile High Density Shelving Systems,Six Layers Movable Filing System |
||
Coldroll Steel Knock Down Safety Lock Powder Coating Space Saver Shelves
Description:

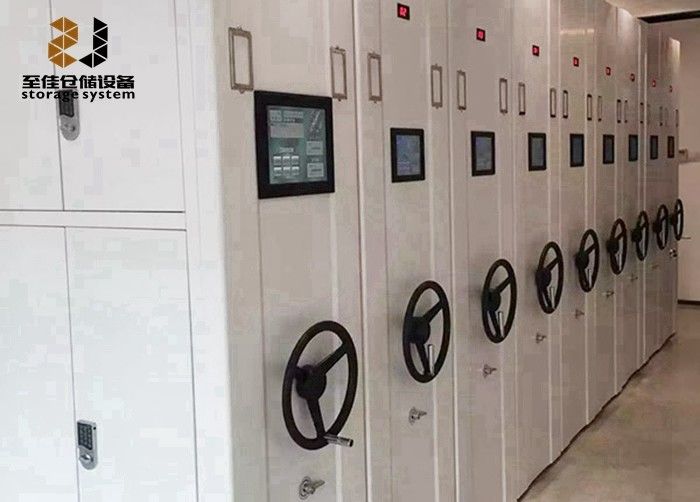

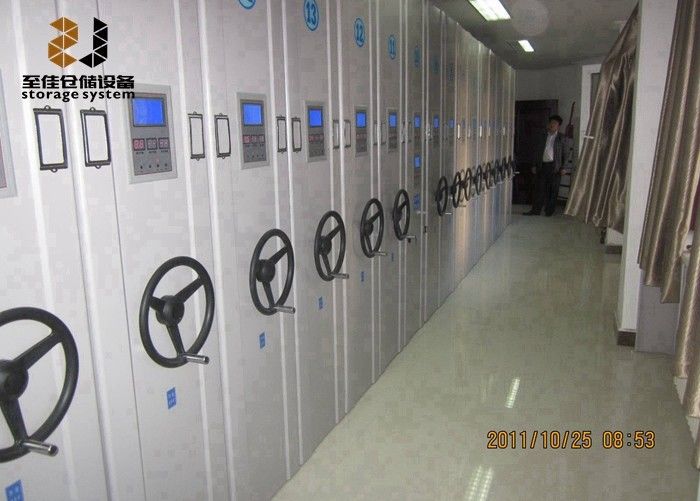

Space Saver Shelves have huge storage space for all kinds of documents. Cabines are made of cold roller steel metal sheet with epoxy power coating, rails are made of 25mm concrete steel.
It is designed by using different gear ratio to move the cabinet by generally turning the handwheel, minimize power to move a huge object.
It is a cost effective way of increasing storage capacity and utilizing valuable floor space, which can double storage capacity compared to conventional static shelving.
Please feel free to tell me your demands, We will try to give you the professional suggestion
Features:
♦Cutting: According to the design-drawings, the steel sheets(open and flat) are cut into the different sizes by the high-accuracy cutting machine, without error and burrs
♦Pressing: The CNC machine tools and other machine tools work with the moulds together to realize the standard, which assure the production efficiency and quality
♦Bending: Skilled manpower and advanced facilities make sure the clear lines and perfect appearance
♦Welding: Locate the work pieces into the mould, firmly weld with CO2 shielded welding or argon-arc welding and then conduct slag removing and polishing.
♦Coatings: All the sheet material parts will go through frofessional treatments of water cleaning, acid-washing, phosphating etc. The importing automatic spray facilities and top-quality powder promise the coating to be flat and smooth, non-toxic smell
♦Installation: To ensure the firm of every screw, the installation work shop adopts pneumatic tools to conduct mass and
flowline production
♦Packing and storage: Strict and special testing before packing and storage to make sure the percentage of the pass.
Solution:Available for free
ODM&OEM:Available
Certification:ISO90001/ISO14001
Warranty:warranty 5 years
Business Type:Manufacturer
Advantage:Factory price
Response time:30 mins
Specification:
| Shelf body | Stand Column | Cold-roll steel | 1.5mm | GB708 |
| Partition Whole body partition partition flange 25mm (reinforcing rib under the partition) | Cold-roll steel | 1.0mm | GB708 | |
| Side plate | Cold-roll steel | 1.0mm | GB708 | |
| Upper cover plate (whole body side plate dimension 300X100mm) | Cold-roll steel | 1.0mm | GB708 | |
| Panel | Cold-roll steel | 1.0mm | GB708 | |
| chassis | Main beam and whole frame board | Hot rolled steel plate | 3.0mm | GB710 |
| (every wheelo frame board have six : 55mm beam bush hole. every hole have sealing | ||||
| pathway | Rail | High quality steel plate | Solid square tube | GB710 |
| Rail box | High quality steel plate | 26X95mm | GB710 | |
| Thickness 3.0 | ||||
| Pathway | High quality steel plate | 50X185 | GB710 | |
| Thickness 3.0 | ||||
| Transmission part | Handle crank | ZG45 | Bothway overload clutch | GB1285 |
| double axis transmission | ||||
| Transmission shaft | Solid core 45 steel | Φ20 | GB699 | |
| Linkage rail | Seamless steel tube | Φ20X2.5 | GB699 | |
| Bearing | Precision bearing | HR6204 | GB/T | |
| 307.3-2005 | ||||
| Chain wheel | ZG45 | GB1135 | ||
| Chain | FR420 | Φ8.5, pitch12.7 | GB1244 | |
| breaking force 1800kg | ||||
| Idler wheel | HT20-40 | Cast iron | Gb11351 | |
| Sealing rubber strip | Magnetic fluid sealant | |||
| Dust shield | Cold-roll steel | 1 | Gb710 | |
| Barb | Hot rolled steel plate | 3.0mm | Gb711 |
