Customized Mobile Shelving Systems / Knock Down Rolls Filing Systems

Customized Mobile Shelving Systems / Knock Down Rolls Filing Systems

high density mobile shelving

rolling shelving systems

Certification:

ISO9001/14001

Model Number:

W-MFC2017526

Contact Us
Request A Quote
Product Details
Product Name:
Rolling Track Shelving Systems
Raw Material:
High Qulity Cold Roll Steel
Structure:
Knock Down、easy Assemble
Lock:
Safety Lock And 3-point Key Lock
Layer Of Each bay:
6 Layers Or Customized
Type:
Metal Sliding File Cabinets
Specific Use:
Filing Cabinet
Advantage:
Factory Price
Highlight:

high density mobile shelving

,

rolling shelving systems

Payment & Shipping Terms
Minimum Order Quantity
2-10 SETS
Price
Negotiation
Packaging Details
Professional & Saft packaging for oversea shipment
Delivery Time
15-30 Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
100 SETS
Product Description

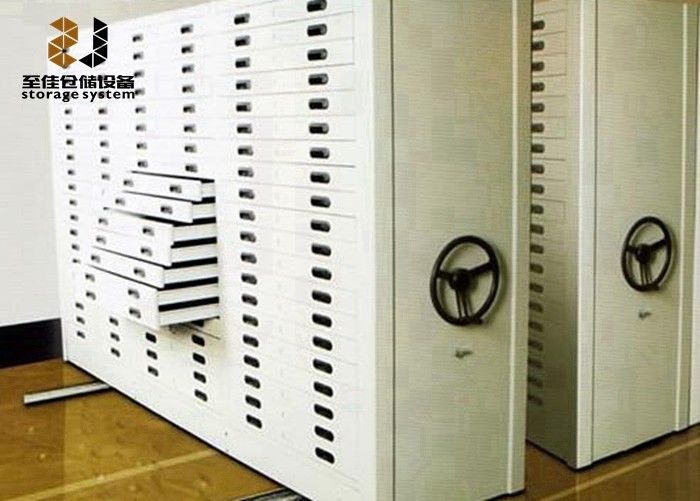

Knock Down 3-Point Key Lock 6 Layers Powder Coating Rolls Filing Systems



Description:



Rolls Filing Systems are three times more spacesaving efficient than conventional shelving.Regardless of their size, weight or shape, virtually any type of material can be stored. The more, they can be stored in less floor space, reducing your building lease and construction costs.



High density mobile storage systems have been installed in Offices, Banks, Hospitals, Schools, Libraries, Museums, Archives, Factories, Laboratories, Government Agencies and Military Bases as well, and for some uniquely demanding environments.



Drawing on this abundant experience we provide each customer with a solution that is custom figured to meet a storage solution that is custom figured to meet their specific needs.



Features:



Raw material:High Qulity Cold Roll Steel

Structure:Knock down,easy assemble

Lock:Safety lock and 3-point key lock

Layer of each:bay 6 layers or customized

Thickness:0.8-2.5mm

Surface:Electrostatic Powder Coating

Spare parts:As your requirement

Color:grey

Zhijia Service:



Solution:Available for free

ODM&OEM:Available

Certification:ISO90001/ISO14001

Warranty:warranty 5 years

Business Type:Manufacturer

Advantage:Factory price

Response time:30 mins





Specification:



Shelf body Stand Column Cold-roll steel 1.5mm GB708
Partition Whole body partition partition flange 25mm (reinforcing rib under the partition) Cold-roll steel 1.0mm GB708
Side plate Cold-roll steel 1.0mm GB708
Upper cover plate (whole body side plate dimension 300X100mm) Cold-roll steel 1.0mm GB708
Panel Cold-roll steel 1.0mm GB708
chassis Main beam and whole frame board Hot rolled steel plate 3.0mm GB710
(every wheelo frame board have six : 55mm beam bush hole. every hole have sealing
pathway Rail High quality steel plate Solid square tube GB710
Rail box High quality steel plate 26X95mm GB710
Thickness 3.0
Pathway High quality steel plate 50X185 GB710
Thickness 3.0
Transmission part Handle crank ZG45 Bothway overload clutch GB1285
double axis transmission
Transmission shaft Solid core 45 steel Φ20 GB699
Linkage rail Seamless steel tube Φ20X2.5 GB699
Bearing Precision bearing HR6204 GB/T
307.3-2005
Chain wheel ZG45   GB1135
Chain FR420 Φ8.5, pitch12.7 GB1244
breaking force 1800kg
Idler wheel HT20-40 Cast iron Gb11351
  Sealing rubber strip Magnetic fluid sealant
Dust shield Cold-roll steel 1 Gb710
Barb Hot rolled steel plate 3.0mm Gb711
