Product Details:
Payment & Shipping Terms:
|
| Product Name: | Movable Shelves | Raw Material: | High Qulity Cold Roll Steel |
|---|---|---|---|
| Structure: | Knock Down、easy Assemble | Lock: | Safety Lock And 3-point Key Lock |
| Layer Of Each bay: | 6 Layers Or Customized | Usage: | Library,school,office,bank |
| Specific Use: | Filing Cabinet | Business Type: | Manufacturer |
| Highlight: | Conventional Moving File Cabinets Shelf System,6 Layers Movable Shelving Systems |
||

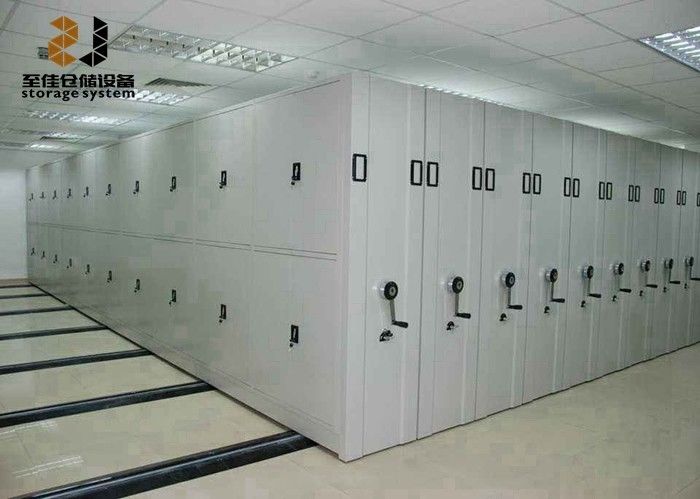

Knock Down 6 Layers Powder Coating Corrosion Protection Movable Shelves
Description:
Movable Shelves is a cost effective way of increasing storage capacity and utilizing valuable floor space, which can double storage capacity compared to conventional static shelving.
It is widely used in offices for file storage and are designed to be easily re-located with no floor fixing. It moves along floor tracks allowing the aisle to be moved so that the required shelves can be accessed, so only one aisle is needed.
Features:
Raw material:High Qulity Cold Roll Steel
Structure:Knock down,easy assemble
Lock:Safety lock and 3-point key lock
Layer of each:bay 6 layers or customized
Thickness:0.8-2.5mm
Surface:Electrostatic Powder Coating
Spare parts:As your requirement
Color:grey
Zhijia Service:
Solution:Available for free
ODM&OEM:Available
Certification:ISO90001/ISO14001
Warranty:warranty 5 years
Business Type:Manufacturer
Advantage:Factory price
Response time:30 mins
Specification:
| Shelf body | Stand Column | Cold-roll steel | 1.5mm | GB708 |
| Partition Whole body partition partition flange 25mm (reinforcing rib under the partition) | Cold-roll steel | 1.0mm | GB708 | |
| Side plate | Cold-roll steel | 1.0mm | GB708 | |
| Upper cover plate (whole body side plate dimension 300X100mm) | Cold-roll steel | 1.0mm | GB708 | |
| Panel | Cold-roll steel | 1.0mm | GB708 | |
| chassis | Main beam and whole frame board | Hot rolled steel plate | 3.0mm | GB710 |
| (every wheelo frame board have six : 55mm beam bush hole. every hole have sealing | ||||
| pathway | Rail | High quality steel plate | Solid square tube | GB710 |
| Rail box | High quality steel plate | 26X95mm | GB710 | |
| Thickness 3.0 | ||||
| Pathway | High quality steel plate | 50X185 | GB710 | |
| Thickness 3.0 | ||||
| Transmission part | Handle crank | ZG45 | Bothway overload clutch | GB1285 |
| double axis transmission | ||||
| Transmission shaft | Solid core 45 steel | Φ20 | GB699 | |
| Linkage rail | Seamless steel tube | Φ20X2.5 | GB699 | |
| Bearing | Precision bearing | HR6204 | GB/T | |
| 307.3-2005 | ||||
| Chain wheel | ZG45 | GB1135 | ||
| Chain | FR420 | Φ8.5, pitch12.7 | GB1244 | |
| breaking force 1800kg | ||||
| Idler wheel | HT20-40 | Cast iron | Gb11351 | |
| Sealing rubber strip | Magnetic fluid sealant | |||
| Dust shield | Cold-roll steel | 1 | Gb710 | |
| Barb | Hot rolled steel plate | 3.0mm | Gb711 |
