Product Details:
Payment & Shipping Terms:
|
| Product Name: | Mobile Racking System | Raw Material: | High Qulity Cold Roll Steel |
|---|---|---|---|
| Structure: | Knock Down、easy Assemble | Lock: | Safety Lock And 3-point Key Lock |
| Layer Of Each bay: | 6 Layers Or Customized | Spare Parts: | As Your Requirement |
| Color: | Grey | Feature: | Corrosion Protection |
| Highlight: | ISO9001 Moving File Cabinets Shelf System,6 Layers Moving File Cabinets Shelf System |
||
3-Point Key Lock 6 Layers Corrosion Protection Mobile Racking System
Description:

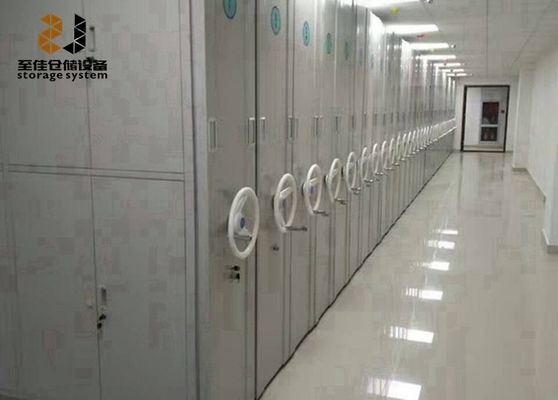

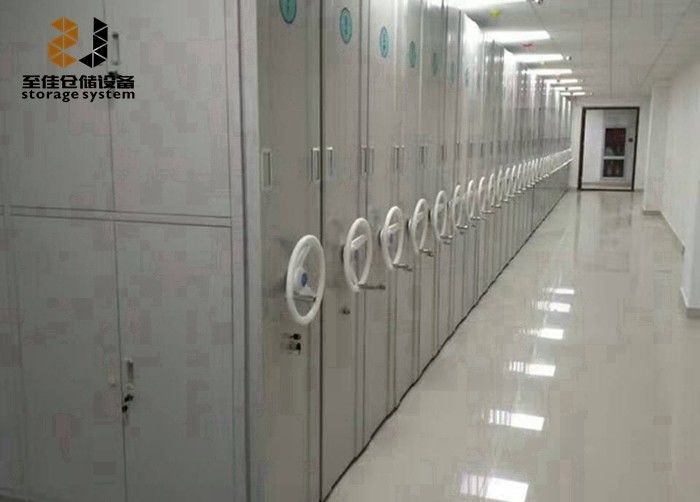

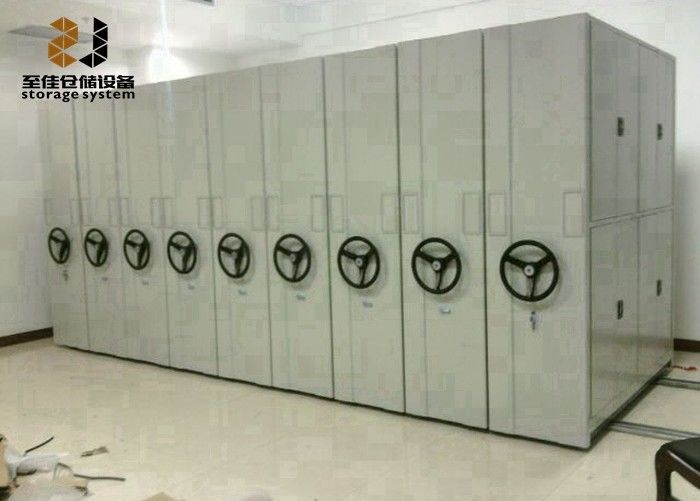

1. Mobile Racking System consists of fixed shelves installed on mobile chassis at the bottom.
2. Every rack has its own transmission equipment.
3. It is suitable for the storage of museum, chancery, library, hospital and bank.
4. It has the advantage of being compact and could utilize the room adequately, fully enclosed all.
5. Only one aisle to be used, the highest space utilization, beautiful and practical, sealing better, which can be manually and automatically operated.
6. Widely used in archives, library, bank and company documents center, etc
Please feel free to tell me your demands, We will try to give you the professional suggestion.The product can be customized according your using space and your drawing or layout !
Features:
Raw material: High Qulity Cold Roll Steel
Structure: Knock down,easy assemble
Lock: Safety lock and 3-point key lock
Layer of each:bay 6 layers or customized
Thickness: 0.8-2.5mm
Surface: Electrostatic Powder Coating
Spare parts: As your requirement
Color: grey
Zhijia Service:
Solution: Available for free
ODM&OEM:Available
Certification:ISO90001/ISO14001
Warranty:warranty 5 years
Business Type:Manufacturer
Advantage:Factory price
Response time:30 mins
Specification:
| Shelf body | Stand Column | Cold-roll steel | 1.5mm | GB708 |
| Partition Whole body partition partition flange 25mm (reinforcing rib under the partition) | Cold-roll steel | 1.0mm | GB708 | |
| Side plate | Cold-roll steel | 1.0mm | GB708 | |
| Upper cover plate (whole body side plate dimension 300X100mm) | Cold-roll steel | 1.0mm | GB708 | |
| Panel | Cold-roll steel | 1.0mm | GB708 | |
| chassis | Main beam and whole frame board | Hot rolled steel plate | 3.0mm | GB710 |
| (every wheelo frame board have six : 55mm beam bush hole. every hole have sealing | ||||
| pathway | Rail | High quality steel plate | Solid square tube | GB710 |
| Rail box | High quality steel plate | 26X95mm | GB710 | |
| Thickness 3.0 | ||||
| Pathway | High quality steel plate | 50X185 | GB710 | |
| Thickness 3.0 | ||||
| Transmission part | Handle crank | ZG45 | Bothway overload clutch | GB1285 |
| double axis transmission | ||||
| Transmission shaft | Solid core 45 steel | Φ20 | GB699 | |
| Linkage rail | Seamless steel tube | Φ20X2.5 | GB699 | |
| Bearing | Precision bearing | HR6204 | GB/T | |
| 307.3-2005 | ||||
| Chain wheel | ZG45 | GB1135 | ||
| Chain | FR420 | Φ8.5, pitch12.7 | GB1244 | |
| breaking force 1800kg | ||||
| Idler wheel | HT20-40 | Cast iron | Gb11351 | |
| Sealing rubber strip | Magnetic fluid sealant | |||
| Dust shield | Cold-roll steel | 1 | Gb710 | |
| Barb | Hot rolled steel plate | 3.0mm | Gb711 |
