| Product Name: | Mobile Shelving Unit | Raw Material: | High Qulity Cold Roll Steel |
|---|---|---|---|
| Structure: | Knock Down、easy Assemble | Lock: | Safety Lock And 3-point Key Lock |
| Layer Of Each bay: | 6 Layers Or Customized | Spare Parts: | As Your Requirement |
| Specific Use: | Filing Cabinet | Solution: | Available For Free |
| High Light: | high density mobile shelving,rolling shelving systems |
||

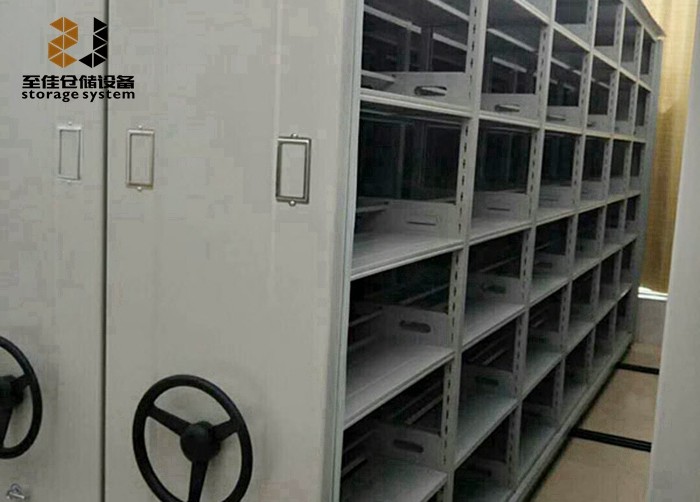

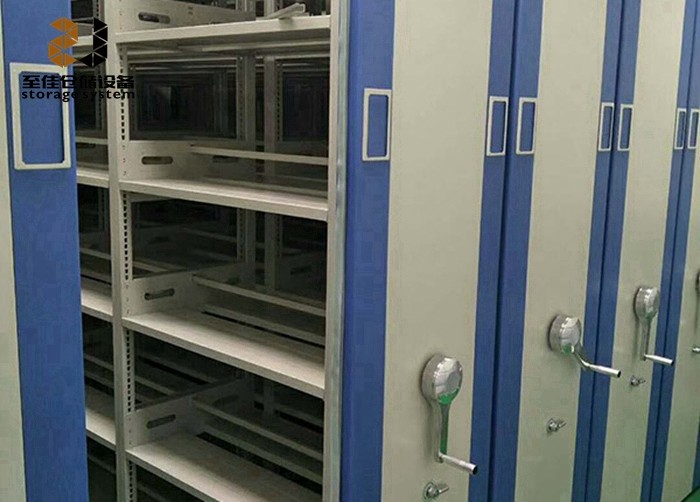

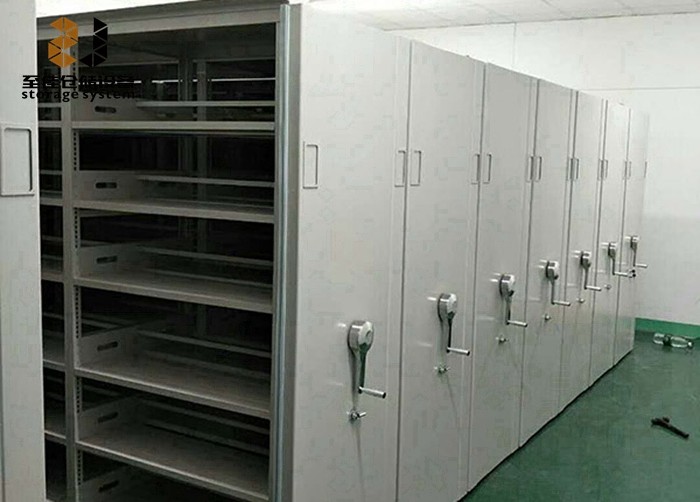

3-Point Key Lock For Library School Office Bank Mobile Shelving Unit
Description:
Mobile Shelving Unit is widely used in archives, library, bank and company documents center, etc,is suitable for the storage of museum, chancery, library, hospital and bank.it consists of fixed shelves installed on mobile chassis at the bottom.It has the advantage of being compact and could utilize the room adequately, fully enclosed all.
With years of export experience along with excellent quality, advanced services and competitive prices, Sanen has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices,Sanen has won numerous customers' trust and support.
Features:
Raw material:High Qulity Cold Roll Steel
Structure:Knock down,easy assemble
Lock:Safety lock and 3-point key lock
Layer of each:bay 6 layers or customized
Thickness:0.8-2.5mm
Surface:Electrostatic Powder Coating
Spare parts:As your requirement
Color:grey
Zhijia Service:
Solution:Available for free
ODM&OEM:Available
Certification:ISO90001/ISO14001
Warranty:warranty 5 years
Business Type:Manufacturer
Advantage:Factory price
Response time:30 mins
Specification:
| Shelf body | Stand Column | Cold-roll steel | 1.5mm | GB708 |
| Partition Whole body partition partition flange 25mm (reinforcing rib under the partition) | Cold-roll steel | 1.0mm | GB708 | |
| Side plate | Cold-roll steel | 1.0mm | GB708 | |
| Upper cover plate (whole body side plate dimension 300X100mm) | Cold-roll steel | 1.0mm | GB708 | |
| Panel | Cold-roll steel | 1.0mm | GB708 | |
| chassis | Main beam and whole frame board | Hot rolled steel plate | 3.0mm | GB710 |
| (every wheelo frame board have six : 55mm beam bush hole. every hole have sealing | ||||
| pathway | Rail | High quality steel plate | Solid square tube | GB710 |
| Rail box | High quality steel plate | 26X95mm | GB710 | |
| Thickness 3.0 | ||||
| Pathway | High quality steel plate | 50X185 | GB710 | |
| Thickness 3.0 | ||||
| Transmission part | Handle crank | ZG45 | Bothway overload clutch | GB1285 |
| double axis transmission | ||||
| Transmission shaft | Solid core 45 steel | Φ20 | GB699 | |
| Linkage rail | Seamless steel tube | Φ20X2.5 | GB699 | |
| Bearing | Precision bearing | HR6204 | GB/T | |
| 307.3-2005 | ||||
| Chain wheel | ZG45 | GB1135 | ||
| Chain | FR420 | Φ8.5, pitch12.7 | GB1244 | |
| breaking force 1800kg | ||||
| Idler wheel | HT20-40 | Cast iron | Gb11351 | |
| Sealing rubber strip | Magnetic fluid sealant | |||
| Dust shield | Cold-roll steel | 1 | Gb710 | |
| Barb | Hot rolled steel plate | 3.0mm | Gb711 |
