Product Name: | File Storage System | Raw Material: | High Qulity Cold Roll Steel |
---|---|---|---|
Structure: | Knock Down、easy Assemble | Lock: | Safety Lock And 3-point Key Lock |
Layer Of Each bay: | 6 Layers Or Customized | Thickness: | 0.8-2.5mm |
Certification: | ISO90001/ISO14001 | Solution: | Available For Free |
Highlight: | Grey Mobile Shelving Systems,High Density Filing Cabinet Systems Office |
Easy Assemble 3-Point Key Lock Corrosion Protection File Storage System
Description:

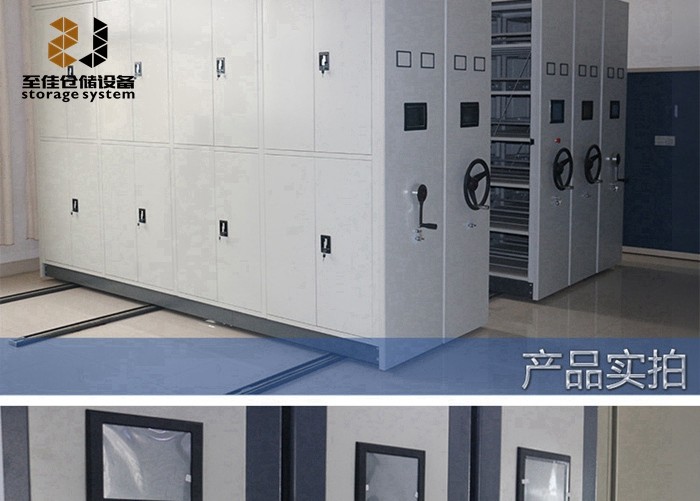

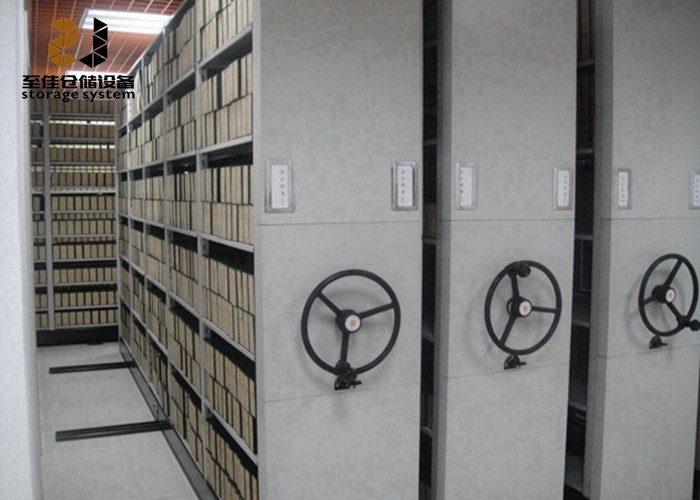

File Storage System Mobile shelving is a kind of intensive storage solution, which goes beyond traditional shelving, it can eliminate most of the aisle space and therefore substantially increase the storage capacity (70% to 100%) with a given place.
Features:
Raw material:High Qulity Cold Roll Steel
Structure:Knock down,easy assemble
Lock:Safety lock and 3-point key lock
Layer of each:bay 6 layers or customized
Thickness:0.8-2.5mm
Surface:Electrostatic Powder Coating
Spare parts:As your requirement
Color:grey
Zhijia Service:
Solution:Available for free
ODM&OEM:Available
Certification:ISO90001/ISO14001
Warranty:warranty 5 years
Business Type:Manufacturer
Advantage:Factory price
Response time:30 mins
Specification:
Shelf body | Stand Column | Cold-roll steel | 1.5mm | GB708 |
Partition Whole body partition partition flange 25mm (reinforcing rib under the partition) | Cold-roll steel | 1.0mm | GB708 | |
Side plate | Cold-roll steel | 1.0mm | GB708 | |
Upper cover plate (whole body side plate dimension 300X100mm) | Cold-roll steel | 1.0mm | GB708 | |
Panel | Cold-roll steel | 1.0mm | GB708 | |
chassis | Main beam and whole frame board | Hot rolled steel plate | 3.0mm | GB710 |
(every wheelo frame board have six : 55mm beam bush hole. every hole have sealing | ||||
pathway | Rail | High quality steel plate | Solid square tube | GB710 |
Rail box | High quality steel plate | 26X95mm | GB710 | |
Thickness 3.0 | ||||
Pathway | High quality steel plate | 50X185 | GB710 | |
Thickness 3.0 | ||||
Transmission part | Handle crank | ZG45 | Bothway overload clutch | GB1285 |
double axis transmission | ||||
Transmission shaft | Solid core 45 steel | Φ20 | GB699 | |
Linkage rail | Seamless steel tube | Φ20X2.5 | GB699 | |
Bearing | Precision bearing | HR6204 | GB/T | |
307.3-2005 | ||||
Chain wheel | ZG45 | GB1135 | ||
Chain | FR420 | Φ8.5, pitch12.7 | GB1244 | |
breaking force 1800kg | ||||
Idler wheel | HT20-40 | Cast iron | Gb11351 | |
Sealing rubber strip | Magnetic fluid sealant | |||
Dust shield | Cold-roll steel | 1 | Gb710 | |
Barb | Hot rolled steel plate | 3.0mm | Gb711 |
