Dongguan Zhijia Storage Equipment Co.,Ltd.
Home ProductsMoving File Cabinets Shelf System

Anti Tilt Mechanism Mobile Archive Shelving Systems For Library / School

China Dongguan Zhijia Storage Equipment Co.,Ltd. certification
China Dongguan Zhijia Storage Equipment Co.,Ltd. certification
Thank you for you mail. We are seeking approval from management.Thank you for your cooperation.

—— Howard

Your products use well.

—— Helen

The drawing is accurate, please provide quotation.

—— Michael

Thank you for your considerate servive and high quality products.

—— Julian

I'm Online Chat Now

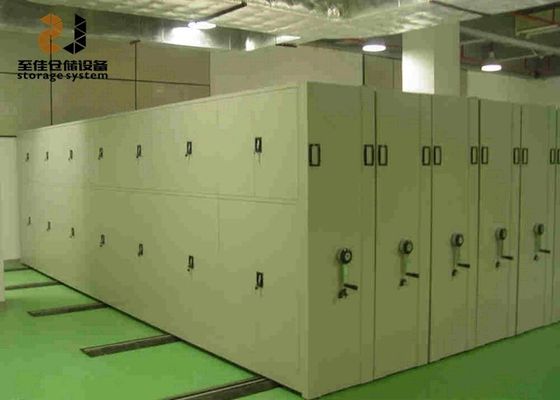

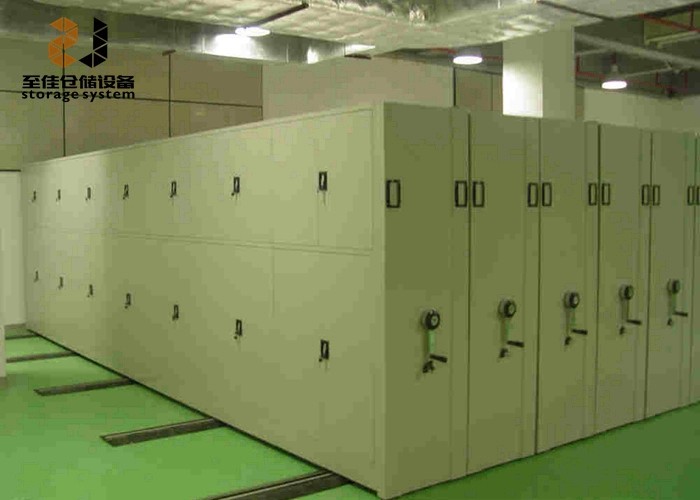

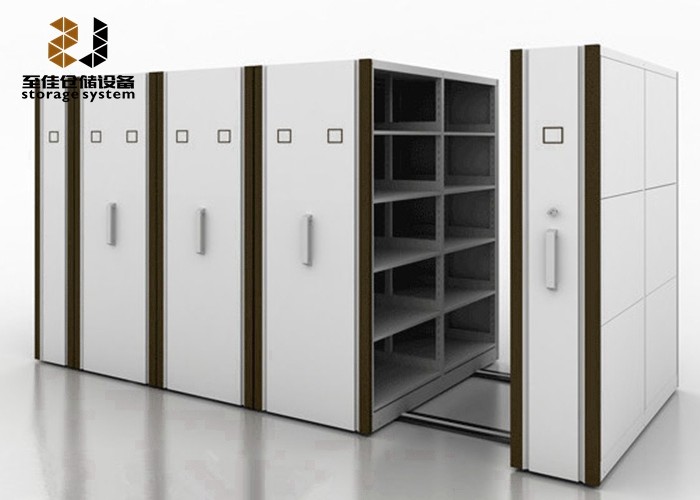

Anti Tilt Mechanism Mobile Archive Shelving Systems For Library / School

Anti Tilt Mechanism Mobile Archive Shelving Systems For Library / School
Anti Tilt Mechanism Mobile Archive Shelving Systems For Library / School Anti Tilt Mechanism Mobile Archive Shelving Systems For Library / School

Large Image :  Anti Tilt Mechanism Mobile Archive Shelving Systems For Library / School

Product Details:
Certification: ISO9001/14001
Model Number: W-MFC2017526
Payment & Shipping Terms:
Minimum Order Quantity: 2-10 SETS
Price: Negotiation
Packaging Details: Professional & Saft packaging for oversea shipment
Delivery Time: 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 SETS
Detailed Product Description
Product Name: Archive Shelving Raw Material: High Qulity Cold Roll Steel
Structure: Knock Down、easy Assemble Lock: Safety Lock And 3-point Key Lock
Layer Of Each bay: 6 Layers Or Customized Thickness: 0.8-2.5mm
Surface: Electrostatic Powder Coating Spare Parts: As Your Requirement
Highlight:

Mechanism Mobile Archive Shelving

,

Mobile Archive Shelving Systems

,

Anti Tilt Mobile Archive Shelving

Knock Down Safety Lock For Library School Office Bank Archive Shelving



Description:

Archive Shelving is a cost effective way of increasing storage capacity and utilizing valuable floor space, which can double storage capacity compared to conventional static shelving.



1 .Surface: environmental electrostatic coating
2. Color: different color available according to RAL sample.
3. Structure: Completely knock down structure and packing, save space, reduce transport cost
4. Packing: with poly foam inner lining and multi-layer carton box.
5. Well and high quality control system

6. Advanced knock down own construction which could be assembled within 6~10 minutes.
7. Anti-tilt mechanism.
8. Different style and dimensions available.
9. Different handles available.
10. Customization is avaliable.



We have over 10 years experience in the material handling industry and we have been in business setting up storage systems for over 10 years, now that’s experience and professional you can trust!

Features:



Raw material:High Qulity Cold Roll Steel

Structure:Knock down,easy assemble

Lock:Safety lock and 3-point key lock

Layer of each:bay 6 layers or customized

Thickness:0.8-2.5mm

Surface:Electrostatic Powder Coating

Spare parts:As your requirement

Color:grey

Zhijia Service:



Solution:Available for free

ODM&OEM:Available

Certification:ISO90001/ISO14001

Warranty:warranty 5 years

Business Type:Manufacturer

Advantage:Factory price

Response time:30 mins





Specification:



Shelf body Stand Column Cold-roll steel 1.5mm GB708
Partition Whole body partition partition flange 25mm (reinforcing rib under the partition) Cold-roll steel 1.0mm GB708
Side plate Cold-roll steel 1.0mm GB708
Upper cover plate (whole body side plate dimension 300X100mm) Cold-roll steel 1.0mm GB708
Panel Cold-roll steel 1.0mm GB708
chassis Main beam and whole frame board Hot rolled steel plate 3.0mm GB710
(every wheelo frame board have six : 55mm beam bush hole. every hole have sealing
pathway Rail High quality steel plate Solid square tube GB710
Rail box High quality steel plate 26X95mm GB710
Thickness 3.0
Pathway High quality steel plate 50X185 GB710
Thickness 3.0
Transmission part Handle crank ZG45 Bothway overload clutch GB1285
double axis transmission
Transmission shaft Solid core 45 steel Φ20 GB699
Linkage rail Seamless steel tube Φ20X2.5 GB699
Bearing Precision bearing HR6204 GB/T
307.3-2005
Chain wheel ZG45   GB1135
Chain FR420 Φ8.5, pitch12.7 GB1244
breaking force 1800kg
Idler wheel HT20-40 Cast iron Gb11351
  Sealing rubber strip Magnetic fluid sealant
Dust shield Cold-roll steel 1 Gb710
Barb Hot rolled steel plate 3.0mm Gb711



Anti Tilt Mechanism Mobile Archive Shelving Systems For Library / School 0Anti Tilt Mechanism Mobile Archive Shelving Systems For Library / School 1Anti Tilt Mechanism Mobile Archive Shelving Systems For Library / School 2
