Product Name: | Speed Rack Pallet Rack | Material: | High Quality Cold Rolled Steel |
---|---|---|---|
Weight Capacity: | 200-500kg/level | Type: | Multi-Level |
Structure: | Easy Assemble Or Welded | Color: | Customizable |
Feature: | Corrosion Protection, Adjustable | Certification: | ISO90001/ISO14001 |
Highlight: | medium duty shelving system,industrial warehouse racks |

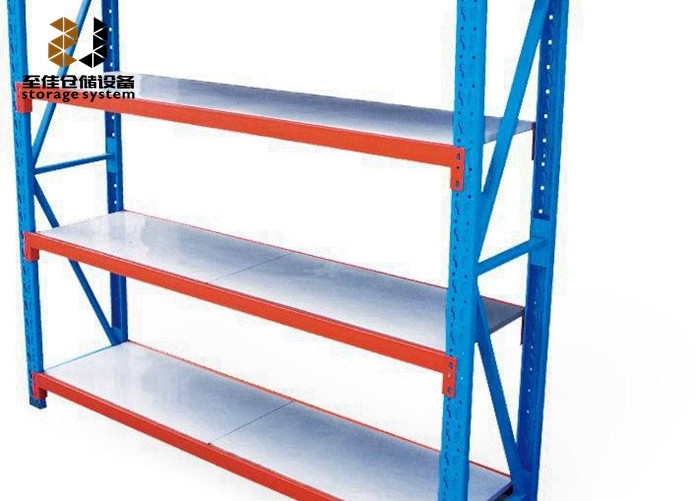

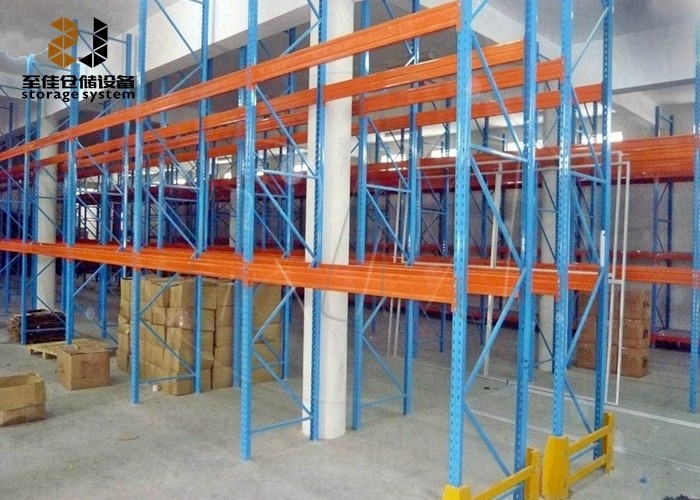

Assemble Or Welded Epoxy Powder Coated Galvanized Speed Rack Pallet Rack
Description:
Speed Rack Pallet Racks is also named beam rack,storage rack or long span rack,which is the most conventional racking.
It is convenient at joint together with structure of butterfly hole.Solid and strong,with good bearing capacity,connect the add-on unit on the started unit freely to realize the high efficiency.Besides,wooden board with the P shaped beam is acceptable,which is much more economic.
Simple adjustable height medium duty shelving system comprises uprights and beams,suitable for medium duty load rack and long unit rack.It can be used alone or jointed together freely.This item is simple structure with convenient installation and dismantlement.It is widely used in various industries.
Specification:
Product name |
Assemble Or Welded Epoxy Powder Coated Galvanized Speed Rack Pallet Rack |
Features |
Material:high quality cold rolled steel Weight Capacity:200-500kg/level Type:Multi-Level Structure:Easy Assemble or welded Surface treatment:Epoxy Powder Coated/galvanized Size:Customzied Height:1500-11000mm Spare Parts:As your requirement Color:customizable |
Zhijia Service |
Solution:Available for free ODM&OEM:Available Certification:ISO90001/ISO14001 Warranty:warranty 5 years Business Type:Manufacturer Advantage:Factory price Response time:30 mins |
Standards Size | Layers | Loading Weight | Beam(mm) | Upright(mm) | Thickness of Board(mm) |
L2000*D600*H2000mm | 4 | 200~300kg/layer | 60*40*1.0 | 60*40*1.0 | 0.4 |
L2000*D600*H2000mm | 4 | 400~500kg/layer | 80*40*1.2 | 55*45*1.5 | 0.7 |
Please kindly provide the below to us for quotation of heavy duty pallet racking :
• the CAD drawing of the warehouse (if available);
• the sizes and weight of the pallet (length, width, height)
• the size of the warehouse (length, width, clear height)
• the layers of each shelf
• the color that you want;
• the loading weight of each layer
• WE WILL PROVIDE Competitive price, GOOD QUALITY
Advantages of warehouse storage pallet racking :
• Indibidual access to all pallet to full height of warehouse.
• Simple stock rotation achieved
• Easy beam adjustment
• Compatible with many handling equipment style.
• Economical shelving beams can be added for level picking
