Product Details:
Payment & Shipping Terms:
|
| Material: | Steel Q235/Q345, Steel Q235/245 | Finish: | Corrosion Protection |
|---|---|---|---|
| Size: | Customzied | Structure: | Assemble |
| Type: | Medium Duty Rack | Color: | Customized RAL Color |
| Feature: | Corrosion Protection, Adjustable | Weight Capacity: | 200-500kg/layer |
| High Light: | Manual Handling Longspan Shelving Units,Medium Duty Longspan Shelving Units |
||

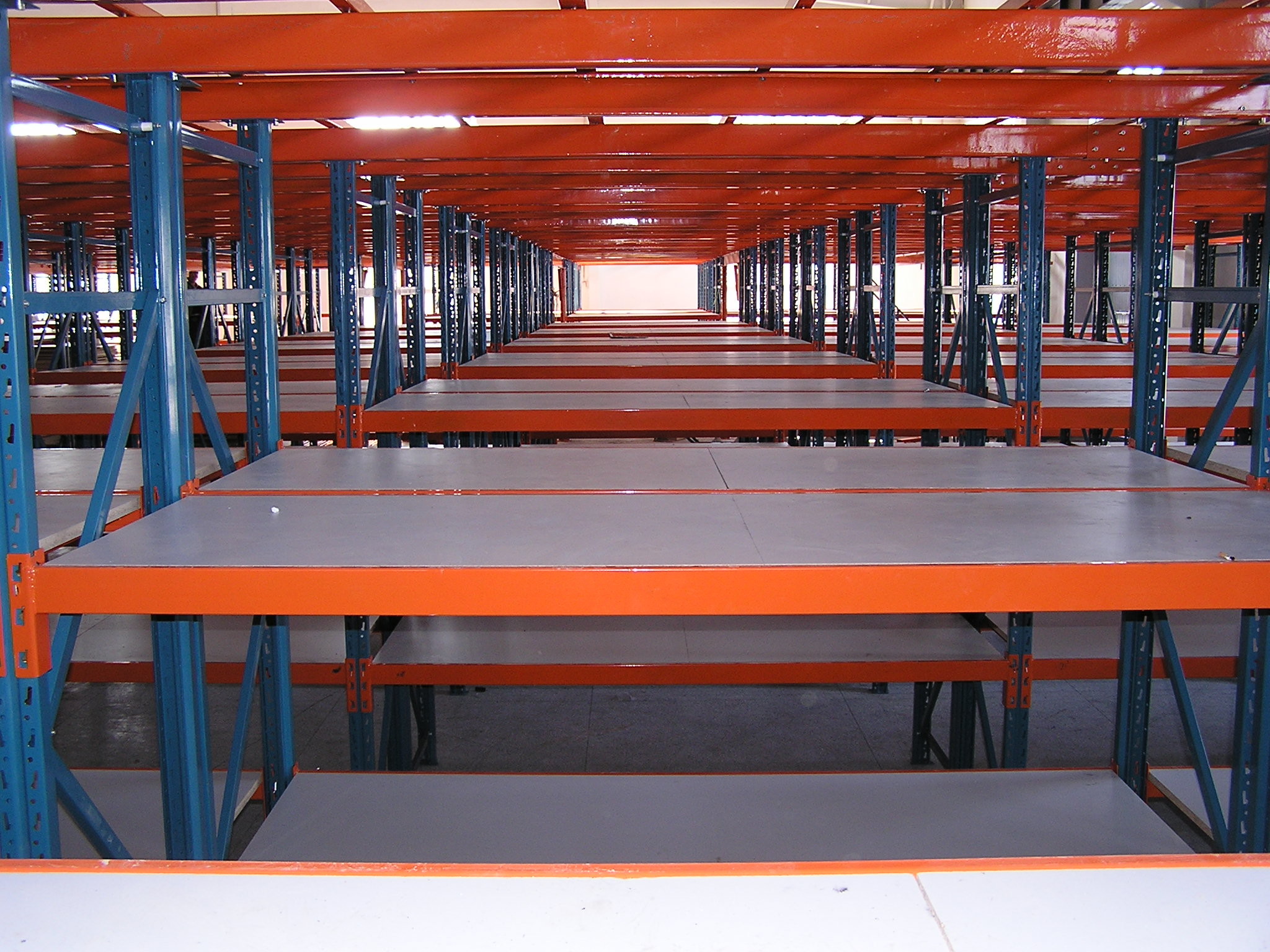

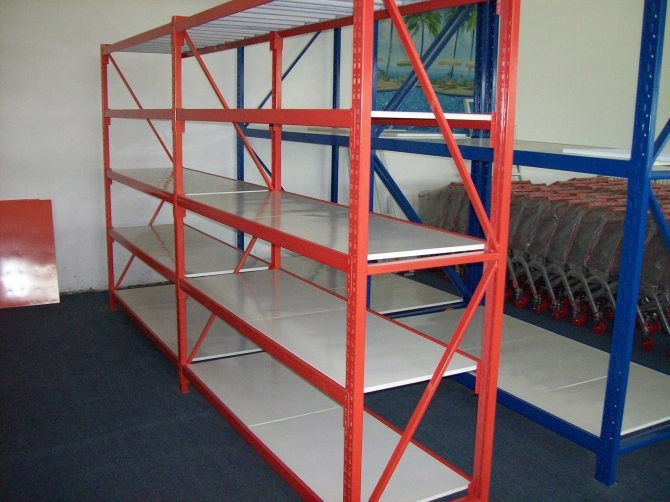

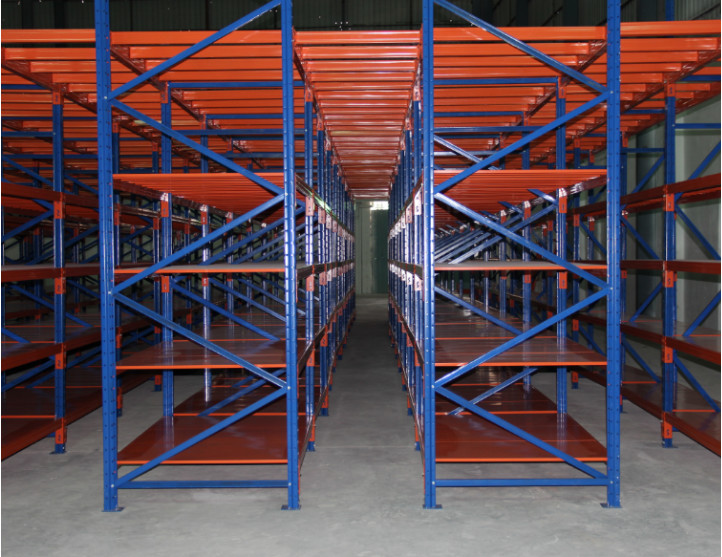

Manual Handling Medium Duty Long Span Racking For Equipment Storage
Description:
Long span metal shelving, which also called medium duty racking B, is also used for hand loading application, which loading capacity is twice of medium duty racking A. Compared with the NMA, it is more suitable for storage of metal components and is widely used in the warehouse storage of manufacture industry.
It has nice appearance and simple structure with ultra high-strength steel panel, easy to install and disassemble without using a single bolt.
Medium duty rack belongs to warehouse storage racking systems.It can be adjusted by each 75mm,and the load capacity can be reach 200~500kg.The beam is "P" type beam,whose height mataches with that of the layer board.
|
Standards Size
|
Layer
|
Loading Weight
|
Beam(mm)
|
Upright(mm)
|
Thickness of Board(mm)
|
|
L2000*D600*H2000
|
4
|
200~300kg/layer
|
60*40*1.0
|
55*45*1.0
|
0.4
|
|
L2000*D600*H2000
|
4
|
400~500kg/layer
|
80*40*1.2
|
55*45*1.5
|
0.7
|
Middle Duty Storage Racks, structured with pallets and beams are most widely used in warehouse industry. This kind of steel middle duty racking is widely used together with forklifts , steel storage containers, steel pallets and storage boxes.
Features:
|
Material
|
steel Q235, or other type steel according to weather, temperature or moisture requirement
|
|
Finish & Color
|
powder coating finish, color to customer option according to RAL color
|
|
Upright
|
55x47 or 60x50mm, thickness 1.5-2.0mm
|
|
Decking
|
steel decking or wood
|
|
Step beam
|
P50x30, P60x40, P80x50, P100X50 etc, thickness 1.2-2.0mm
|
|
installation
|
upright frame and beam structure, upright and bracing connected with bolts & nuts
|
|
Usage
|
for industrial and commercial warehouse and shop storage, pick by hand.
|
1. Anti-slip rubber inserted;
2. Advantage of Heavy Duty Storage Racks :Eco-friendly, Durable, Safe, Recyclable, Hygienic, No worry about termites, No daily Maintenance;
3. Color: Blue, other colors accroding to clients' request.
4. Racking surface treatment is static powder coating;
5. Upright frame include 2 uprights, several bracing and Bolts.
Please kindly provide the below to us for quotation of heavy duty pallet racking :
• the CAD drawing of the warehouse (if available);
• the sizes and weight of the pallet (length, width, height)
• the size of the warehouse (length, width, clear height)
• the layers of each shelf
• the color that you want;
• the loading weight of each layer
• WE WILL PROVIDE Competitive price, GOOD QUALITY
