Product Details:
Payment & Shipping Terms:
|
| Material: | Steel Q235/Q345, Steel Q235/245 | Structure: | Assemble Or Welded |
|---|---|---|---|
| Type: | Industrial Rack Shelving | Color: | Customized RAL Color |
| Feature: | Corrosion Protection, Adjustable | Weight Capacity: | 1000kg/pallet |
| High Light: | Steel Medium Duty Racking System,Warehouse Medium Duty Racking System,Adjustable Warehouse Shelving Rack System |
||

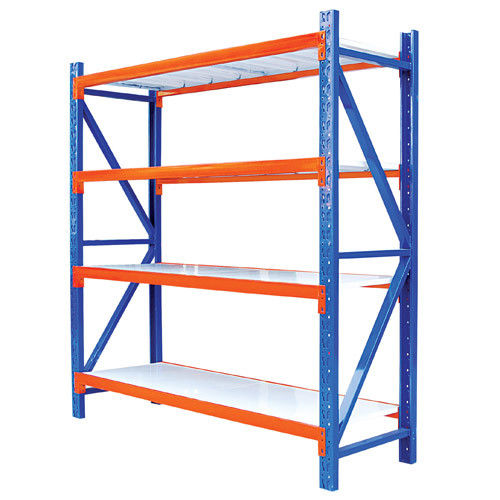

Steel Warehouse Storage Middle Duty Racking with High Quality
Description:
The shelf storage device is one of the most basic and the most important equipment in warehouse, make full use of warehouse space and reduce the storage cost; on the other hand, through the reasonable arrangement, the access operation can effectively save the human resources.Shelf is a kind of storage system which is born from the idea of unit storage. The storage unit can be divided into four categories, such as single product, container, pallet and special products. Using storage unit for special items by single element location,Warehouse management using electronic label recognition technology, through the computer teYinhoonal, to control the storage of goods, sorting, handling, shipment, specifications, quantity, time to master the storage area of the goods, in order to achieve smooth logistics, reasonable and maximize the use of warehouse.
Specification:
|
1. Features
|
1) Beam levers are adjustable in 75mm pitch interval.
|
|
2) Different sizes, various specifications and colors are available according to your different needs.
|
|
|
3) Maximizes space utility ratio while retaining optimum product accessibility.
|
|
|
4) Strength and rigidity prevents compression damage to goods.
|
|
|
5) Bottom level of pallets can be stored on the floor, lowering structure costs.
|
|
|
2. Material:
|
High grade Q235B Cold Rolled Steel
|
|
3. Surface Treatment:
|
High-quality Powder Coating Finishing.
|
|
4. Load Capacity & Dimension:
|
1) Loading capacity: 200-500 kgs /pair beam.
|
|
2) Height: 1000-5000mm
|
|
|
3) Depth: single row 600mm,3 uprights:1200mm
|
|
|
4) Length: 1200/1500/1800/2000/2500mm
|
|
|
Special sizes also available to specific storage needs.
|
|
|
5. Main Parts Specs(mm):
|
1) Upright: 80*40*1.0/80*40*1.5
|
|
2) Beams:60*40*1.0/60*40*1.5/80*50*1.5
|
|
|
3) Horizontal & diagonal bracings: 40*24*1.5
|
|
|
4) Upright Footplates: 8*8*2.0mm
|
|
|
5) Bolts & nuts
|
|
|
|
6) Anchors and all necessary components.
|
|
6. Certificates.
|
CE certified, ISO9001,
|
|
7. Quick Delivery.
|
Within 15 workdays (negotiable), according to quantity
|
