Product Details:
Payment & Shipping Terms:
|
| Material: | Steel Q235/Q345, Steel Q235/245 | Name: | Industrial Shelving Racks |
|---|---|---|---|
| Size: | Customzied | Structure: | Assemble Or Welded |
| Type: | Heavy Duty Storage Racks For Outdoor And Inside Warehouse | Color: | Customized RAL Color |
| Feature: | Corrosion Protection, Adjustable | Weight Capacity: | 300-500kg/layer |
| High Light: | Adjustable Medium Duty Storage Rack,Medium Duty Storage Rack Customzied,Customzied Industrial Warehouse Shelving Systems |
||

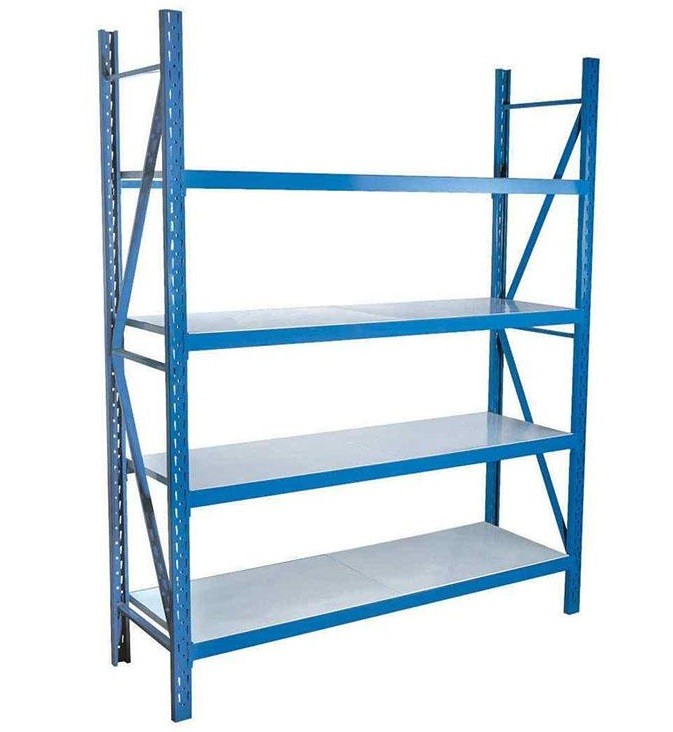

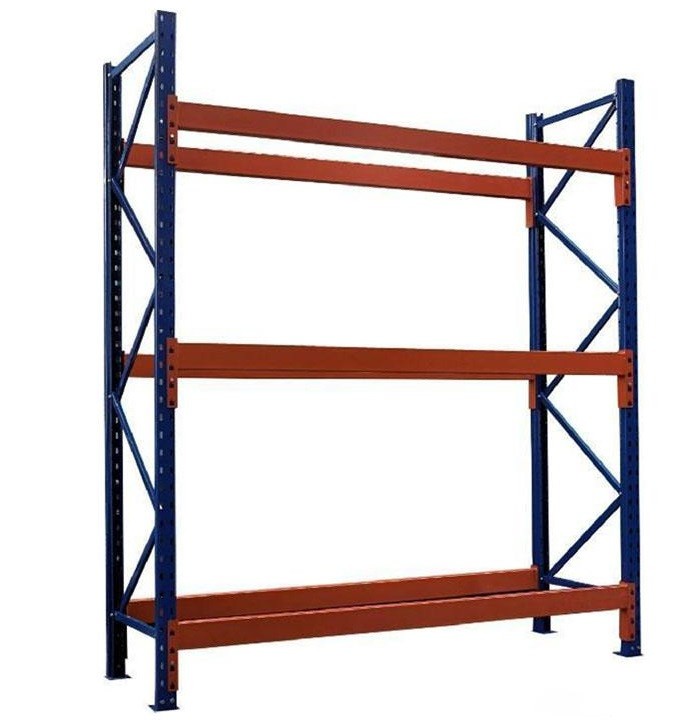

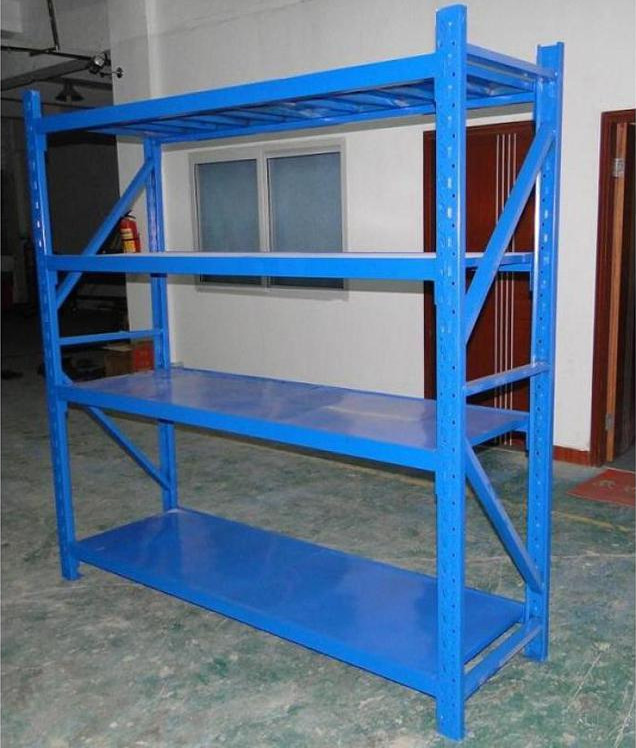

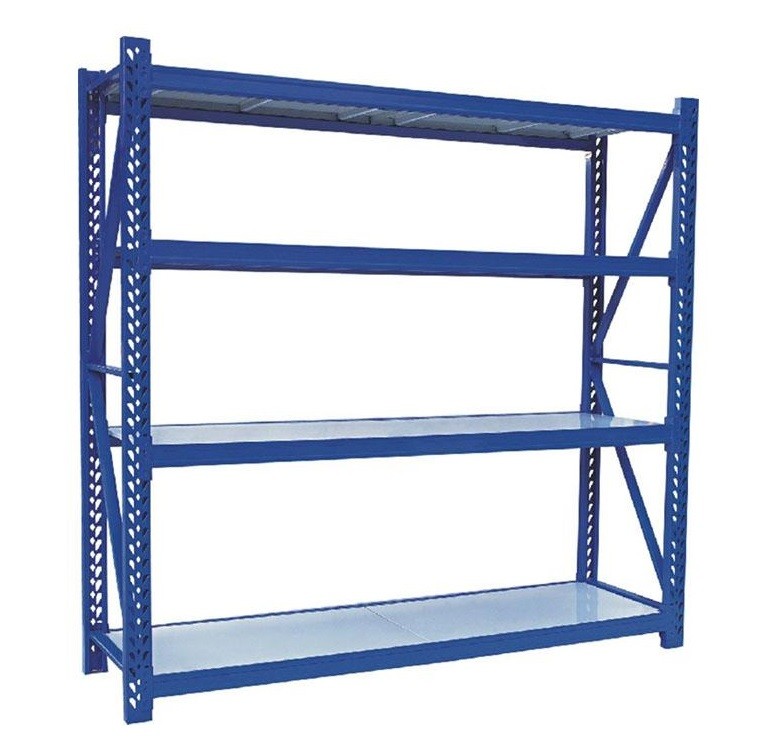

Factory Supply Adjustable High Quality Medium Duty Storage Rack
Description:
Medium Duty Storage Racks, structured with pallets and beams are most widely used in warehouse industry. This product is versatile, given its adaptability to any type of unit load; selective, as it allows immediate access to all unit loads and/or references stored; and dynamic, since it is easily assembled and/or disassembled, and components are also easily replaced and/or added.This kind of steel middle duty racking is widely used together with forklifts , steel storage containers, steel pallets and storage boxes.
Each level can be adjustable at 75mm per pitch and the maxmum loading is 25000kg with the maxmum length of 12 meters; Each level loading duty is from 200kgs to 500kgs, depending on the beam length.
Pallets made of different material with various sizes, can be used on practical stackable pallet racks.
Features:
1. Anti-slip rubber inserted;
2. Upright frame include 2 uprights, several bracing and Bolts.
3. Color: Blue, other colors accroding to clients' request.
4. Racking surface treatment is static powder coating;
| Standards Size | Layer | Loading Weight | Beam(mm) | Upright(mm) | Thickness of Board(mm) |
| L2000*D600*H2000 | 4 | 200~300kg/layer | 60*40*1.0 | 55*45*1.0 | 0.4 |
| L2000*D600*H2000 | 4 | 400~500kg/layer | 80*40*1.2 | 55*45*1.5 | 0.7 |
Please kindly provide the below to us for quotation of heavy duty pallet racking :
• the CAD drawing of the warehouse (if available);
• the sizes and weight of the pallet (length, width, height)
• the size of the warehouse (length, width, clear height)
• the layers of each shelf
• the color that you want;
• the loading weight of each layer
• WE WILL PROVIDE Competitive price, GOOD QUALITY
Advantages of warehouse storage pallet racking :
• Indibidual access to all pallet to full height of warehouse.
• Simple stock rotation achieved
• Easy beam adjustment
• Compatible with many handling equipment style.
• Economical shelving beams can be added for level picking
