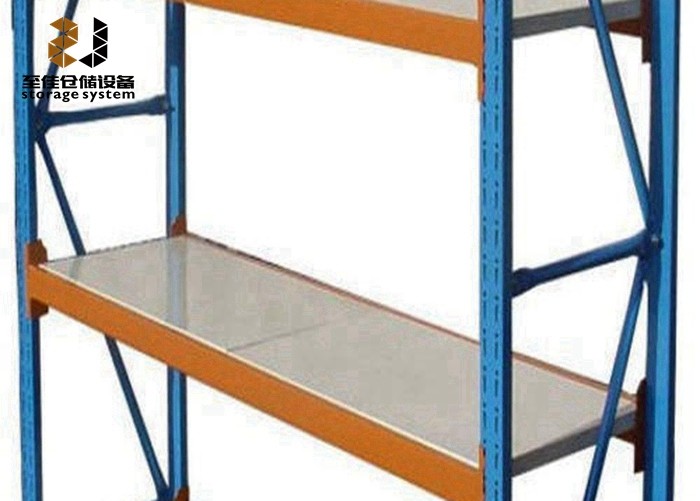

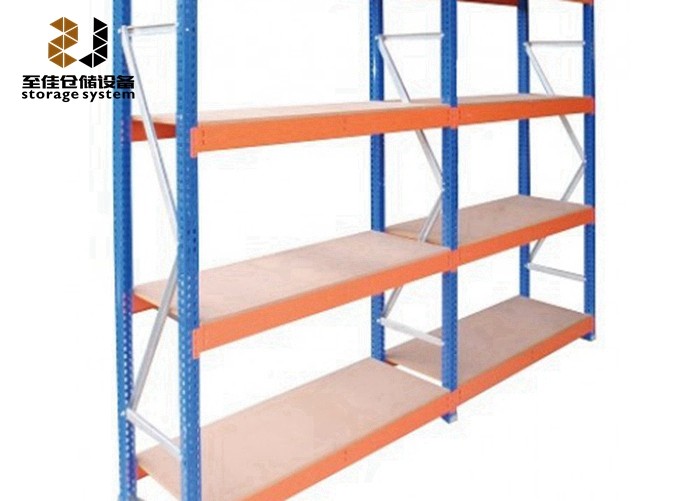

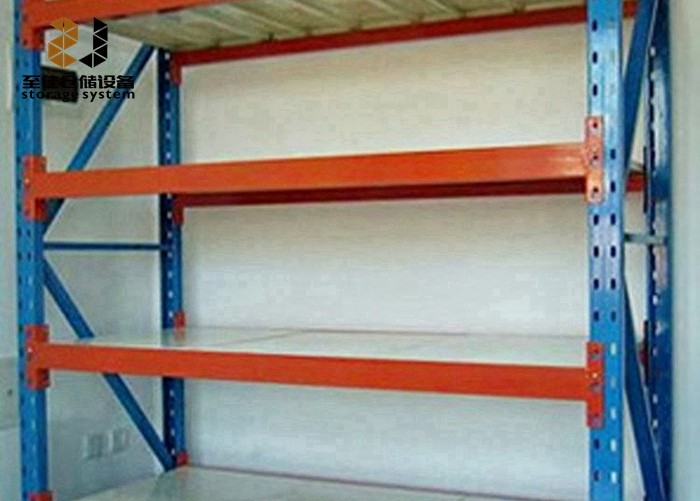

Assemble Or Welded Galvanized Custome Size 1500-8000mm Height Rack De Pallet
Description:
Display stand/racks is mainly composed of uprights, beams and panels.
It is suitable for manual operation.
According to different sizes and loading requirements, the different specification and thickness of uprights, beams and panels can be chosen.
The climbing equipment can be used for a higher shelving.
*Suitable for manual operation.
*Average loading for each layer:200-800kgs.
*Can be adjusted by pitch of 50mm.
*Frame-style structure; easily assembled, disassembled and maintained.
*Side and back wire mesh, side and back board and dividers can be equipped.
Our company is one of the leading supplier and manufacturer in storage solutions, providing all forms of pallet racking for you. If you need help storing and customizing your pallets, please contact us!
Specification:
| Product name |
Assemble Or Welded Galvanized Custome Size 1500-8000mm Height Rack De Pallet
|
| Features |
Material:high quality cold rolled steel
Weight Capacity:200-800kg/level
Type:Multi-Level
Structure:Easy Assemble or welded
Surface treatment:Epoxy Powder Coated/galvanized
Size:Customzied
Height:1500-11000mm
Spare Parts:As your requirement
Color:customizable
|
| Zhijia Service |
Solution:Available for free
ODM&OEM:Available
Certification:ISO90001/ISO14001
Warranty:warranty 5 years
Business Type:Manufacturer
Advantage:Factory price
Response time:30 mins
|
| Standards Size |
Layers |
Loading Weight |
Beam(mm) |
Upright(mm) |
Thickness of Board(mm) |
| L2000*D600*H2000mm |
4 |
200~300kg/layer |
60*40*1.0 |
60*40*1.0 |
0.4 |
| L2000*D600*H2000mm |
4 |
400~500kg/layer |
80*40*1.2 |
55*45*1.5 |
0.7 |
Please kindly provide the below to us for quotation of heavy duty pallet racking :
• the CAD drawing of the warehouse (if available);
• the sizes and weight of the pallet (length, width, height)
• the size of the warehouse (length, width, clear height)
• the layers of each shelf
• the color that you want;
• the loading weight of each layer
• WE WILL PROVIDE Competitive price, GOOD QUALITY
Advantages of warehouse storage pallet racking :
• Indibidual access to all pallet to full height of warehouse.
• Simple stock rotation achieved
• Easy beam adjustment
• Compatible with many handling equipment style.
• Economical shelving beams can be added for level picking
