Product Details:
Payment & Shipping Terms:
|
| Product Name: | Medium Duty Pallet Racking | Material: | High Quality Cold Rolled Steel |
|---|---|---|---|
| Weight Capacity: | 200-500kg/level | Type: | Multi-Level |
| Structure: | Easy Assemble Or Welded | Height: | 1500-11000mm |
| Installation: | Easy Assemble And Disassemble | Packing: | Film Wrapping & Carton |
| High Light: | 500kg/Level Warehouse Pallet Shelves,Warehouse Pallet Shelves Multi Level,Multi Level Medium Duty Pallet Racking |
||
500-2000kg Per Layer Customzied Size Warehouse Storage Racking
Description:
Pallet Shelves are absolute storage system perfect for warehouse and industrial applications. These characteristically include automotive and other spare hardware, parts, bulk retail, and common purposes carton and archive storage. The Medium Duty Storage Racks can be configured to accommodate a wide range of storage requirements. These racks are suitable for storage of small boxes and cartons. Further, these racks are available with adjustable shelving system along with the load bearing capacity up to 1.2 ton per level.
Specification:
| Product name |
500-2000kg Per Layer Customzied Size Warehouse Storage Racking |
| Features |
Material:high quality cold rolled steel Weight Capacity:200-500kg/level Type:Multi-Level Structure:Easy Assemble or welded Surface treatment:Epoxy Powder Coated/galvanized Size:Customzied Height:1500-11000mm Spare Parts:As your requirement Color:customizable |
| Zhijia Service |
Solution:Available for free ODM&OEM:Available Certification:ISO90001/ISO14001 Warranty:warranty 5 years Business Type:Manufacturer Advantage:Factory price Response time:30 mins |
| Standards Size | Layers | Loading Weight | Beam(mm) | Upright(mm) | Thickness of Board(mm) |
| L2000*D600*H2000mm | 4 | 200~300kg/layer | 60*40*1.0 | 60*40*1.0 | 0.4 |
| L2000*D600*H2000mm | 4 | 400~500kg/layer | 80*40*1.2 | 55*45*1.5 | 0.7 |

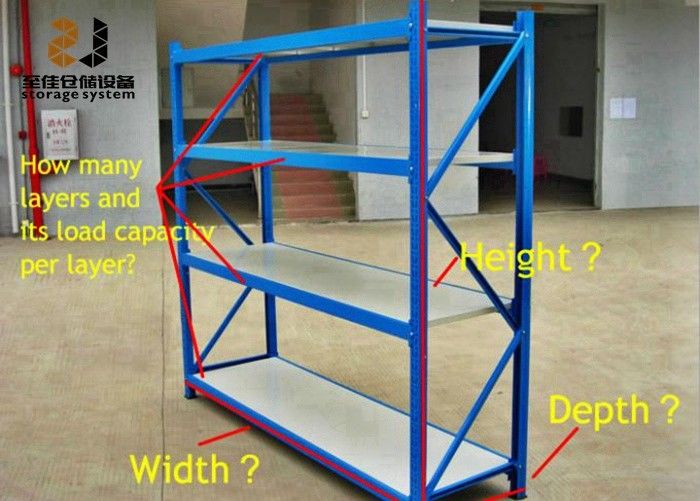

Please kindly provide the below to us for quotation of heavy duty pallet racking :
• the CAD drawing of the warehouse (if available);
• the sizes and weight of the pallet (length, width, height)
• the size of the warehouse (length, width, clear height)
• the layers of each shelf
• the color that you want;
• the loading weight of each layer
• WE WILL PROVIDE Competitive price, GOOD QUALITY
Advantages of warehouse storage pallet racking :
• Indibidual access to all pallet to full height of warehouse.
• Simple stock rotation achieved
• Easy beam adjustment
• Compatible with many handling equipment style.
• Economical shelving beams can be added for level picking
