500-2000kg Per Layer Powder Coating Galvanization Rack Drive In
Description:

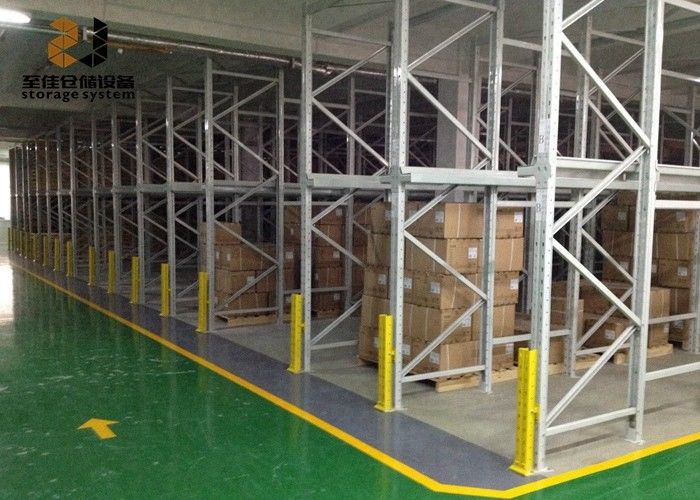

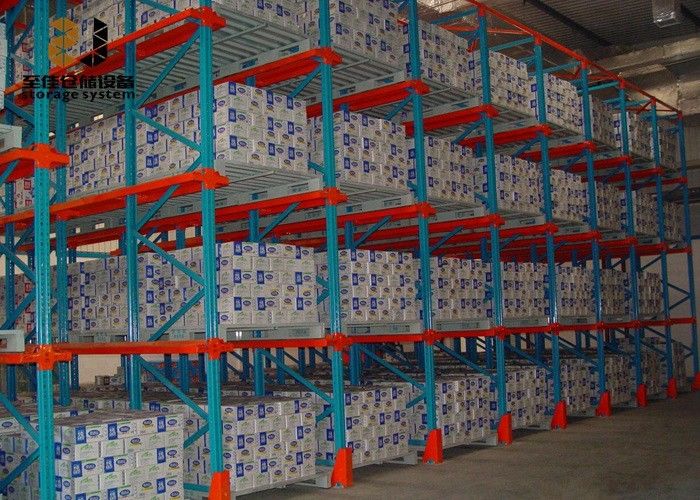

Rack drive is suitable for volume cargo with few categories, it consists of a continuous block of frames ,undivided by aisles.Trucks can drive right into the center of the block between any uprights on the front face to pick up pallets, can realize first in last out arrangement, maximize utility rate of warehouse space.This design does not require cross beams which would block entry.Instead the pallets are put on the continuous rails which are supported by cor-bels on each level.Top and back link bars are configured.
Zhijia-drive in layout plan.pdf
Freezing Room B,D Drive In Rack-ZJ.pdf
Specification:
| Product name |
500-2000kg Per Layer Powder Coating Galvanization Rack Drive In
|
| Features |
Material:high quality cold rolled steel
Weight Capacity:500-4000kg/pallet
store layer:1 to 7 layers per bay
Structure:Assemble
Finish:Powder Coating / galvanization
Technique:Cold Rolled
Size:Customzied
Beam size:80/100/120/140/160/180/200*45*1.5-3.0
Spare Parts:As your requirement
Color:blue/orange/whiate/grey/black
|
| Zhijia Service |
Solution:Available for free
ODM&OEM:Available
Certification:ISO90001/ISO14001
Warranty:warranty 5 years
Business Type:Manufacturer
Advantage:Factory price
Response time:30 mins
|
| Specifications of Upright |
| Item |
Width(mm) |
Depth(mm) |
Thickness(mm) |
Loading Capacity(kg) |
| 1 |
85 |
67 |
1.6 |
7000 |
| 2 |
85 |
67 |
1.8 |
8500 |
| 3 |
85 |
67 |
2 |
10000 |
| 4 |
85 |
67 |
2.3 |
12500 |
| 5 |
100 |
67 |
1.8 |
10500 |
| 6 |
100 |
67 |
2 |
12000 |
| 7 |
100 |
67 |
2.3 |
13800 |
| 8 |
100 |
95 |
2 |
12000 |
| 9 |
100 |
95 |
2.3 |
14500 |
| 10 |
100 |
95 |
2.5 |
16000 |
| 11 |
100 |
95 |
2.75 |
18000 |
| 12 |
100 |
95 |
3 |
20000 |
| 13 |
120 |
95 |
2.5 |
17000 |
| 14 |
120 |
95 |
2.75 |
19000 |
| 15 |
120 |
95 |
3 |
21000 |
Frames:Product Details
Frames are made up of two uprights with the corresponding horizontal& diagonal bracings, footplates and accessories.
The frames have slots every 75mm to accommodate the beams and supports.
Arms:
There are two types of arms, which are single arm (left side and right side single arms) and double arm. The single arm is used in each side of the racks, while the double arm is used in between.
Pallet Support Rails:
Support rails are stamp formed and the length can be customized. The rails are designed without connectors to ensure uniform loading.
Top beams and top bracings:
Top beams and top bracings are used to increase integrity and stability of the racking system.
