| Product Name: | Drive In Rack System | Material: | High Quality Cold Rolled Steel |
|---|---|---|---|
| Weight Capacity: | 500-4000kg/pallet | Size: | Customzied |
| Spare Parts: | As Your Requirement | Store Layer: | 1 To 7 Layers Per Bay |
| Color: | Blue/orange/whiate/grey/black | Structure: | Assemble |
| High Light: | Assemble Drive In Rack System,Warehouse Drive Through Pallet Racking |
||
Cold Rolled Steel Customzied Size Warranty 5 Years Push Back
Description:

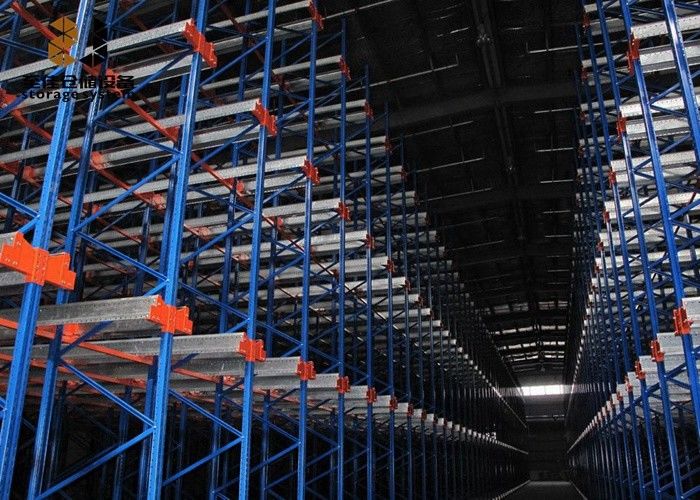

Drive In Pallet Racking are the most common form of storage rack. Pallets of materials are placed directly on the rack system by a forklift. Each load in pallet racks is readily accessible, making the 100% selective storage rack systems are both economical and efficient. Pallet rack designs come in numerous configurations to handle any storage need and can be easily expanded as your company grows. They are well built and extremely durable. Pallet rack systems are available in slotted, tear drop and structural.
1. Drive in rack system is last in first out store system. Suits for unified palletized goods.
2. Drive in rack system is a high density store system. It can use most of the warehouse space. So it can save space, save store cost. In the same area, push back rack can store much more goods.
3. Push back rack system doesn't need forklift to go into its lanes, so enhance safety for forklift operator.
Zhijia-drive in layout plan.pdf
Freezing Room B,D Drive In Rack-ZJ.pdf
Specification:
| Product name |
Cold Rolled Steel Customzied Size Warranty 5 Years Push Back |
| Features |
Material:high quality cold rolled steel Weight Capacity:500-4000kg/pallet store layer:1 to 7 layers per bay Structure: Assemble Finish: Powder Coating / galvanization Technique: Cold Rolled Size: Customzied Beam size: 80/100/120/140/160/180/200*45*1.5-3.0 Spare Parts: As your requirement Color: blue/orange/whiate/grey/black |
| Zhijia Service |
Solution:Available for free ODM&OEM: Available Certification:ISO90001/ISO14001 Warranty:warranty 5 years Business Type:Manufacturer Advantage:Factory price Response time:30 mins |
| Specifications of Upright | ||||
| Item | Width(mm) | Depth(mm) | Thickness(mm) | Loading Capacity(kg) |
| 1 | 85 | 67 | 1.6 | 7000 |
| 2 | 85 | 67 | 1.8 | 8500 |
| 3 | 85 | 67 | 2 | 10000 |
| 4 | 85 | 67 | 2.3 | 12500 |
| 5 | 100 | 67 | 1.8 | 10500 |
| 6 | 100 | 67 | 2 | 12000 |
| 7 | 100 | 67 | 2.3 | 13800 |
| 8 | 100 | 95 | 2 | 12000 |
| 9 | 100 | 95 | 2.3 | 14500 |
| 10 | 100 | 95 | 2.5 | 16000 |
| 11 | 100 | 95 | 2.75 | 18000 |
| 12 | 100 | 95 | 3 | 20000 |
| 13 | 120 | 95 | 2.5 | 17000 |
| 14 | 120 | 95 | 2.75 | 19000 |
| 15 | 120 | 95 | 3 | 21000 |

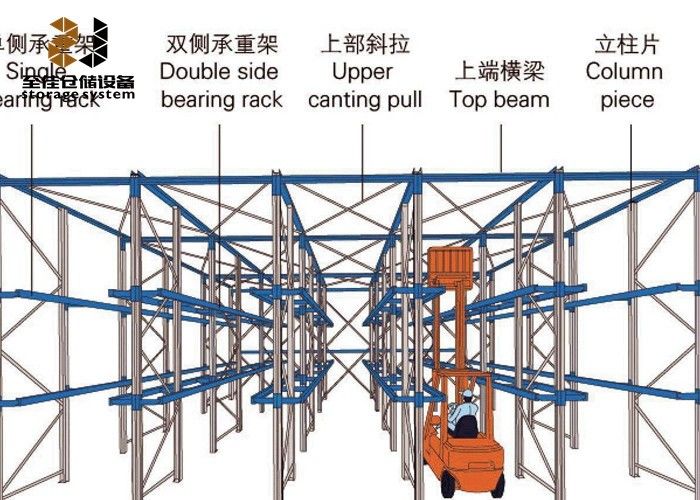

Frames:Product Details
Frames are made up of two uprights with the corresponding horizontal& diagonal bracings, footplates and accessories.
The frames have slots every 75mm to accommodate the beams and supports.
Arms:
There are two types of arms, which are single arm (left side and right side single arms) and double arm. The single arm is used in each side of the racks, while the double arm is used in between.
Pallet Support Rails:
Support rails are stamp formed and the length can be customized. The rails are designed without connectors to ensure uniform loading.
Top beams and top bracings:
Top beams and top bracings are used to increase integrity and stability of the racking system.
