Beverage Industrial Shelving Systems Powder Coating Narrow Aisle Pallet Racking

500-2000kg Per Layer Powder Coating Narrow Aisle Pallet Racking

Description:

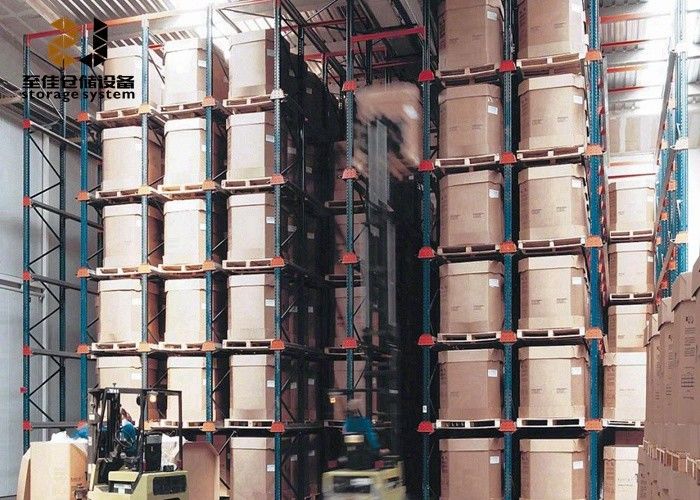

Drive in racking is one of the intensive storage racking.

The main supporting is post , lateral brace and inclined brace.

The Depth way ‘s main supporting is corbels and corbels beam .

corbels beam’s Effect :place pallet and cargo , cooperate with the top rack pull rod ,Strengthen the connection between the racks

1.Cargo storage ways: first -in -last- out , or first- in- first- out

2. Advantages: space utilization up to 80%

3.The truck traveling directly in the channel between the corbel beams to cargo access.

4.Suitable for small varieties and large quantity cargo storage

5. Applicable industries: dairy industry, beverage industry, food, household appliances, cold storage, tobacco, etc.

6. The size of rack can be customized

Zhijia-drive in layout plan.pdf

Freezing Room B,D Drive In Rack-ZJ.pdf

Specification:

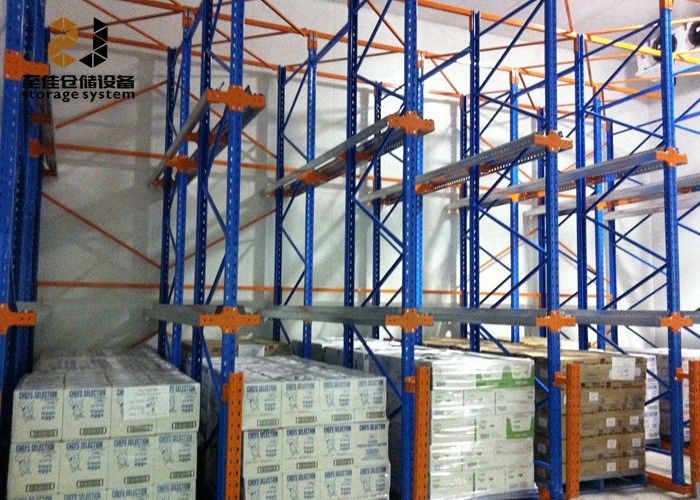

Frames:Product Details

Frames are made up of two uprights with the corresponding horizontal& diagonal bracings, footplates and accessories.
The frames have slots every 75mm to accommodate the beams and supports.

Arms:
There are two types of arms, which are single arm (left side and right side single arms) and double arm. The single arm is used in each side of the racks, while the double arm is used in between.

Pallet Support Rails:
Support rails are stamp formed and the length can be customized. The rails are designed without connectors to ensure uniform loading.

Top beams and top bracings:
Top beams and top bracings are used to increase integrity and stability of the racking system.
