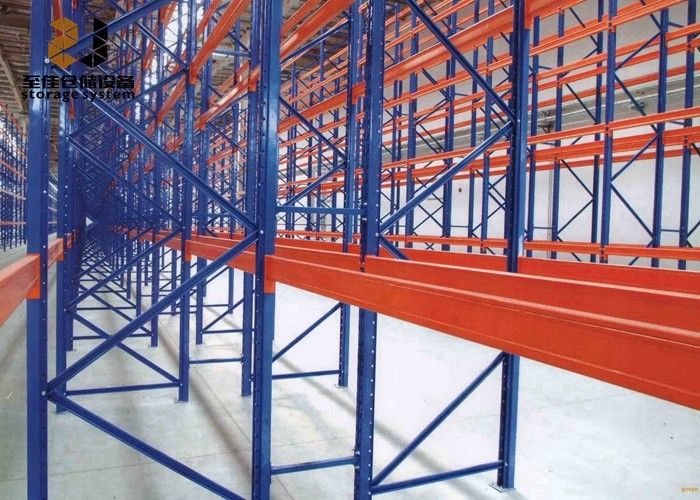

Warehouse High Density Pallet Racking System , Assemble Pallet Flow Racking Systems

Cold Rolled Steel Powder Coating Customzied Size Pallet Flow Rack

Description:

It is designed for the storage of homogenous products. It accommodates a large number of pallets for each SKU. This system makes better use of the floor area and height space than any other.

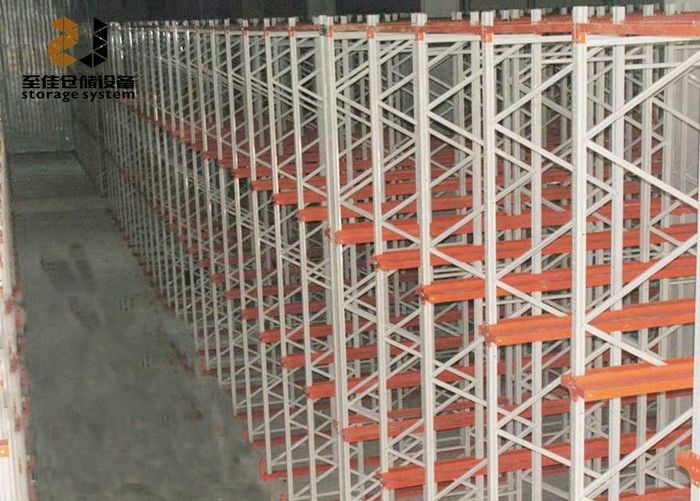

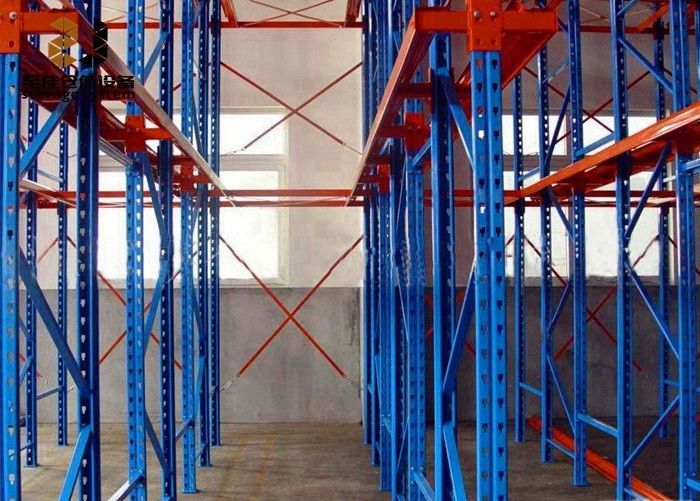

Jracking Drive in installation is made up of a set of racking units that form inner loading aisles, with support rails for the pallets. The fork-lift trucks enter these inner aisles with their load held higher than the level at which it is to be deposited.

1. Drive in rack system is last in first out store system. Suits for unified palletized goods.

2. Drive in rack system is a high density store system. It can use most of the warehouse space. So it can save space, save store cost. In the same area, push back rack can store much more goods.

3. Push back rack system doesn't need forklift to go into its lanes, so enhance safety for forklift operator.

Zhijia-drive in layout plan.pdf

Freezing Room B,D Drive In Rack-ZJ.pdf

Specification:

Frames:Product Details

Frames are made up of two uprights with the corresponding horizontal& diagonal bracings, footplates and accessories.
The frames have slots every 75mm to accommodate the beams and supports.

Arms:
There are two types of arms, which are single arm (left side and right side single arms) and double arm. The single arm is used in each side of the racks, while the double arm is used in between.

Pallet Support Rails:
Support rails are stamp formed and the length can be customized. The rails are designed without connectors to ensure uniform loading.

Top beams and top bracings:
Top beams and top bracings are used to increase integrity and stability of the racking system.
