Powder Coating File Cabinet Storage Systems , Mobile Library Shelving Systems With Safety Lock

China Dongguan Zhijia Storage Equipment Co.,Ltd. certification
China Dongguan Zhijia Storage Equipment Co.,Ltd. certification
Thank you for you mail. We are seeking approval from management.Thank you for your cooperation.

—— Howard

Your products use well.

—— Helen

The drawing is accurate, please provide quotation.

—— Michael

I'm Online Chat Now

Powder Coating File Cabinet Storage Systems , Mobile Library Shelving Systems With Safety Lock

Powder Coating File Cabinet Storage Systems , Mobile Library Shelving Systems With Safety Lock
Powder Coating File Cabinet Storage Systems , Mobile Library Shelving Systems With Safety Lock Powder Coating File Cabinet Storage Systems , Mobile Library Shelving Systems With Safety Lock Powder Coating File Cabinet Storage Systems , Mobile Library Shelving Systems With Safety Lock

Large Image :  Powder Coating File Cabinet Storage Systems , Mobile Library Shelving Systems With Safety Lock

Product Details:
Certification: ISO9001/14001
Model Number: W-MFC2017526
Payment & Shipping Terms:
Minimum Order Quantity: 2-10 SETS
Price: Negotiation
Packaging Details: Professional & Saft packaging for oversea shipment
Delivery Time: 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 SETS
Detailed Product Description
Product Name: Mobile Storage Racks Raw Material: High Qulity Cold Roll Steel
Structure: Knock Down、easy Assemble Lock: Safety Lock And 3-point Key Lock
Layer Of Each bay: 6 Layers Or Customized Spare Parts: As Your Requirement
ODM&OEM: Available Certification: ISO90001/ISO14001
High Light:

Powder Coating File Cabinet Storage Systems

,

Mobile File Cabinet Storage Systems

,

Mobile Library Shelving Systems

Coldroll Steel Safety Lock Powder Coating Mobile Storage Racks



Description:

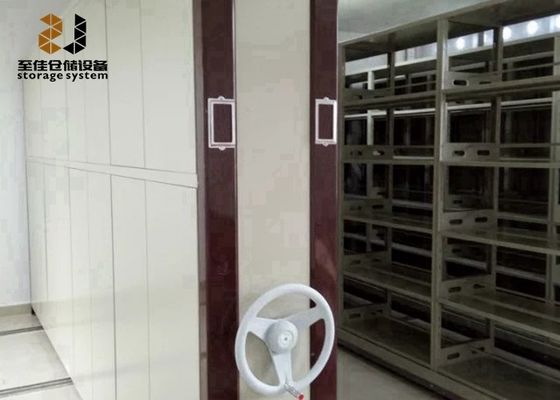

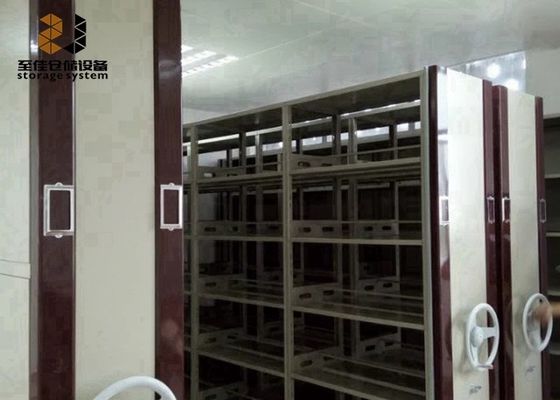

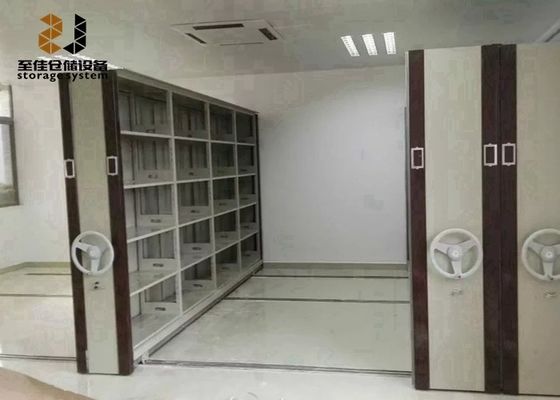

Mobile Storage Racks offers the highest possible density for storing files and other goods. Mobile shelving systems maximize existing storage space by eliminating aisles and compacting several storage cabinets or shelving systems into a much smaller amount of space. An aisle or access to your files is opened up only when and where you need it by easily shifting entire rows of high-density shelving.



Features:

  1. Cutting: According to the design-drawings, the steel sheets(open and flat) are cut into the different sizes by the high-accuracy cutting machine, without error and burrs
  2. Pressing: The CNC machine tools and other machine tools work with the moulds together to realize the standard, which assure the production efficiency and quality.
  3. Bending: Skilled manpower and advanced facilities make sure the clear lines and perfect appearance
  4. Welding: Locate the work pieces into the mould, firmly weld with CO2 shielded welding or argon-arc welding and then conduct slag removing and polishing.
  5. Coatings: All the sheet material parts will go through professional treatments of water cleaning, acid-washing, phosphating etc. The importing automatic spray facilities and top-quality powder promise the coating to be flat and smooth, non-toxic smell
  6. Installation: To ensure the firm of every screw, the installation work shop adopts pneumatic tools to conduct mass and flowline production
  7. Packing and storage: Strict and special testing before packing and storage to make sure the percentage of the pass.

Solution:Available for free

ODM&OEM:Available

Certification:ISO90001/ISO14001

Warranty:warranty 5 years

Business Type:Manufacturer

Advantage:Factory price

Response time:30 mins





Specification:



Shelf body Stand Column Cold-roll steel 1.5mm GB708
Partition Whole body partition partition flange 25mm (reinforcing rib under the partition) Cold-roll steel 1.0mm GB708
Side plate Cold-roll steel 1.0mm GB708
Upper cover plate (whole body side plate dimension 300X100mm) Cold-roll steel 1.0mm GB708
Panel Cold-roll steel 1.0mm GB708
chassis Main beam and whole frame board Hot rolled steel plate 3.0mm GB710
(every wheelo frame board have six : 55mm beam bush hole. every hole have sealing
pathway Rail High quality steel plate Solid square tube GB710
Rail box High quality steel plate 26X95mm GB710
Thickness 3.0
Pathway High quality steel plate 50X185 GB710
Thickness 3.0
Transmission part Handle crank ZG45 Bothway overload clutch GB1285
double axis transmission
Transmission shaft Solid core 45 steel Φ20 GB699
Linkage rail Seamless steel tube Φ20X2.5 GB699
Bearing Precision bearing HR6204 GB/T
307.3-2005
Chain wheel ZG45   GB1135
Chain FR420 Φ8.5, pitch12.7 GB1244
breaking force 1800kg
Idler wheel HT20-40 Cast iron Gb11351
  Sealing rubber strip Magnetic fluid sealant
Dust shield Cold-roll steel 1 Gb710
Barb Hot rolled steel plate 3.0mm Gb711







Powder Coating File Cabinet Storage Systems , Mobile Library Shelving Systems With Safety Lock 0Powder Coating File Cabinet Storage Systems , Mobile Library Shelving Systems With Safety Lock 1
