Product Details:
Payment & Shipping Terms:
|
| Material: | Steel Q235 | Finish: | Corrosion Protection |
|---|---|---|---|
| Size: | Customzied | Structure: | Assemble |
| Floor Capacity: | Maximum 500kg/m² | Color: | Orange,Blue,Black,Gray |
| Length: | Customized | Width: | Customized |
| High Light: | industrial warehouse shelving systems,industrial pallet racks |
||
Powder Coating Rack Supported Industrial Steel Storage Mezzanine With Walkways
Description:
Mezzanine floors take maximum advantage of the height of premises, doubling or tripling the surface area and enabling it to be fitted out as a storage area, changing room, or offices, etc. The installation of a mezzanine is an ideal solution to maximise the space available by taking advantage of the height of the building.
Mezzanine floors are totally dismountable and re-usable, and their structure, dimensions and location are easily modified. Loading: within 500kg per square meter

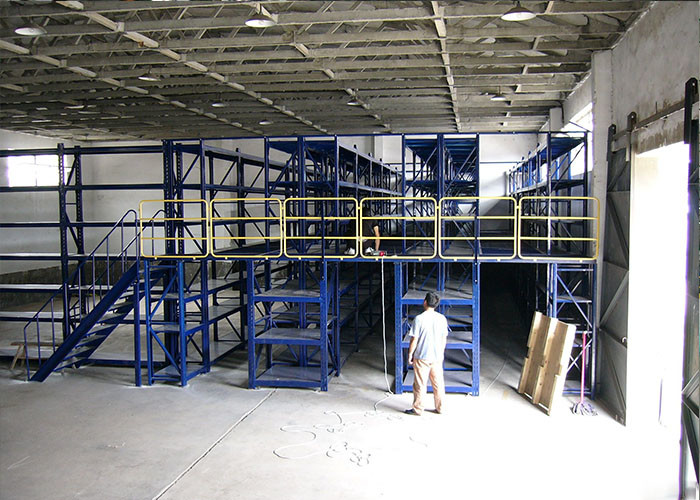

It's supported by racks,and a mezzanine is built on the upper layer,them the lower racks can store goods in order.The upper mezzanine has better load capacity,and the ground load capacity is relatively average.
It's widely used in these situations:warehouse is high;goo`ds are small;accessing goods by manpower,storage edmand is large.Besides,it can be applied to renovate old warehouse,to improve the warehouse space utilization.Single layer or multi-layer mezzanine can be designed according to the acrtual area and specifica requirements to make full use of space and save warehosue area.Normally it's 2-layer or 3-layer,and stairs,handrails and cargo elevators are equipped.
Rack-supported mezzanines are the most economical way to create an additional floor level using standard pallet rack components, which utilize the cubic area of warehouses and maximizes your storage space.
Rack-supported mezzanines can be built over existing equipment and work areas. By improving workflow efficiency and space utilization, rack-supported mezzanines can eliminate downtime and expensive relocation costs.

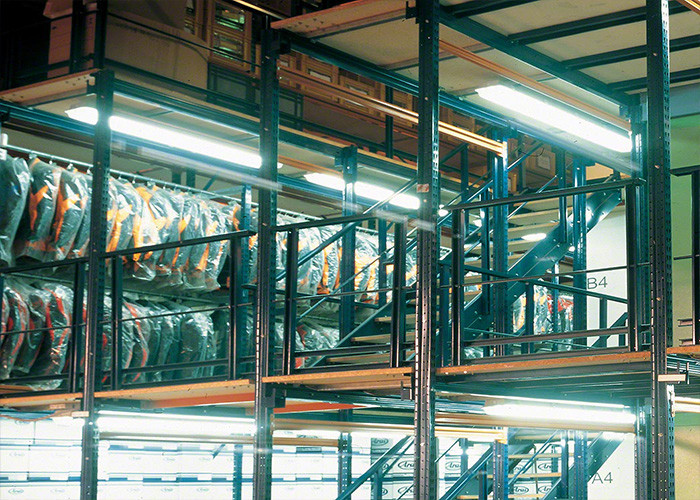

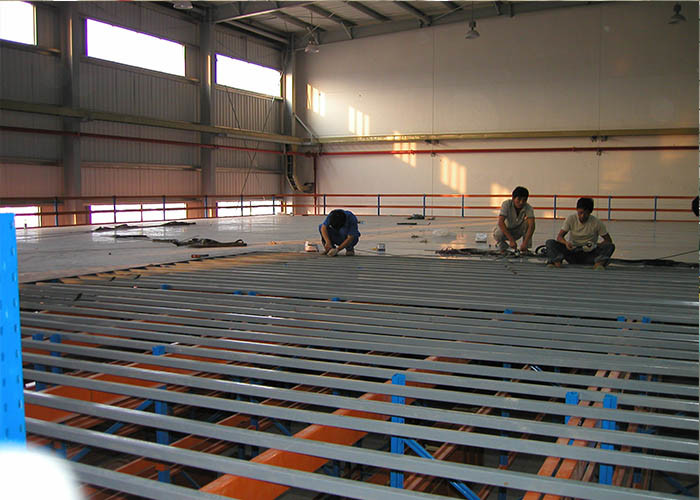

Heavy (medium) duty racking forms the main parts of the Mezzanine, and cold rolling walkways connect all shelving to build a whole structure of Mezzanine. Special locks are used to fix walkway and catwalk tightly. The walkway has such advantages as good loading capacity, high precision, quite smooth walkway surface, and it's easy to be fixed. The mezzanine is equipped with lighting system, easy for accessing and management of goods.

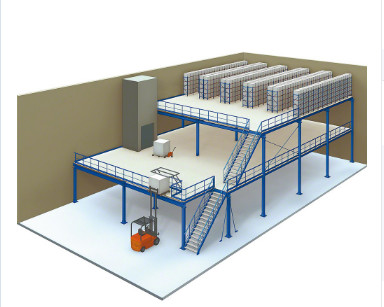

Warehouse Rack Supported Steel platform System that double (with one storey) or triple (with two storeys) the surface of warehouses and premises.
Quick, easy and clean to assemble.
The lifting of loads can be done using manual handling machines, cranes or even by hand when the load allows this option.
| Customized Specification |
|
|
|
|
|
|
|
|
|
|
|
|
300KG, 500KG, 800KG, 1000KG per square meter |
| Raw Material |
|
|
|
|
|
|
|
|
|
|
|
|
|
Application:
1.Mezzanine Racking System are widely used in high warehouse, small goods, manual access, access to a larger amount under the circumstances, from the minute use of space. Save the Treasury area. More particularly applicable to auto parts, electronics, light industry, clothing, and other enterprises of the products classified preservation.
2.Mezzanine Racking System medium-shelf shelves or use heavy shelf shelves plus floor as the main support panel (based on the total weight of the negative shelf unit to determine what kind of shelf), plate appearances usually use wood or cold-rolled steel gusset plate and the like.
Get a quote today:
| 1 | Size of Pallet Racking Supported Mezzanine (L*D*H) |
| 2 | Total or Each Level of Loading Capacity |
| 3 | Warehouse Drawing |
| 4 | Floor Plan |
| 5 | Levels you would like |
| 6 | The quantity (quantity for stater bay and add-on bay) |
FAQ:
1.. Q: What is the raw material of your products?
A: As general, the raw material of steel code is Q235.High quality steel from BAO Steel
Co. Ltd., the largest steel manufacturer in China.Other steel is also available to
clients’ requirements.
2. Q: What is the term of payment?
A: As general, T/T 30% deposit+70% against B/L copy.L/C is availabe.
3. Q: What is delivery times?
A: It depends on the order quantity and racking types. As general, within 30 days after we receive 30% deposit.
4. Q: Which port will be used as loading port?
A: Shenzhen and Guangzhou port.
5. Q: May I know the status of my order?
A: Yes. We will send you information and photos at different production stage of your order. You will get the latest information in time.
6. Q: Are samples available?
A: Yes. Short sections of samples could be provided, they are free of charge, but international courier costs to be borne by clients.
