Product Details:
Payment & Shipping Terms:
|
Name: | Industrial Metal Storage Racks | Material: | Steel Q235B |
---|---|---|---|
Finish: | Corrosion Protection | Structure: | Assembled |
Type: | Heavy Duty Storage Racks For Outdoor And Inside Warehouse | Color: | Customized RAL Color |
Feature: | Corrosion Protection, Adjustable | Weight Capacity: | 1000kg/pallet |
High Light: | Heavy Duty Industrial Steel Storage Racks,Warehouse Industrial Steel Storage Racks,Warehouse Steel Storage Racks Customized |

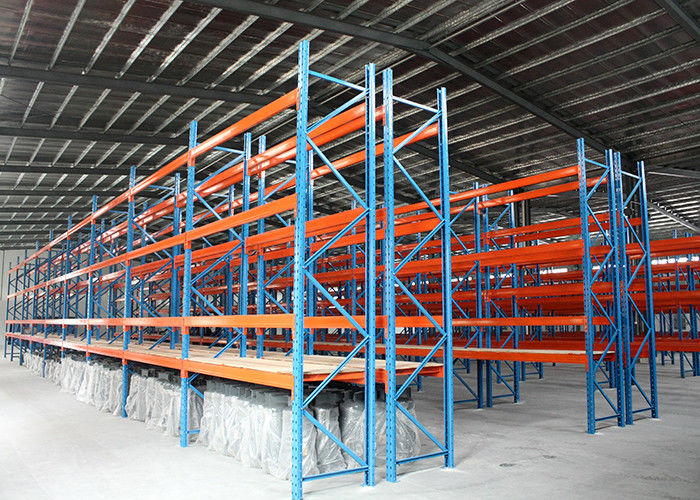

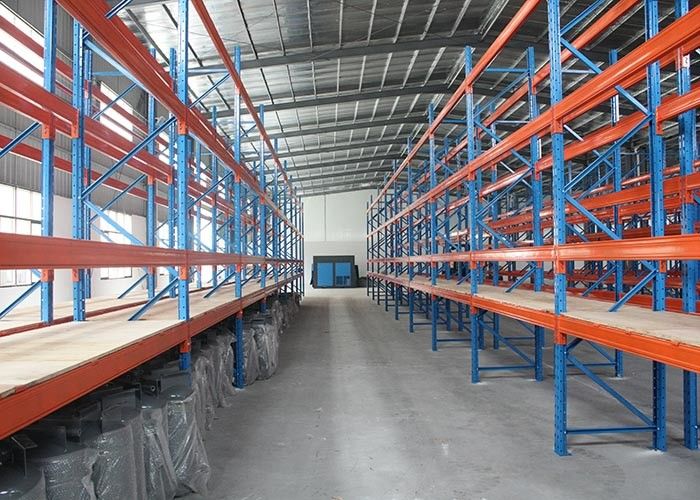

Heavy Duty Industrial Steel Storage Racks with Plywood Board for Huge Warehouse
Selective Pallet Racking is a cost effective storage system providing direct access to all pallets. It provides high capacity storage, is easily installed and adjusted, and has low equipment and capital costs.
Commonly known as adjustable pallet racking, this is perhaps the most popular and economical form of pallet racking because it provides 100% selective storage up to 12.8 meters in height, fully utilizing valuable air space.
Features:
1) Pallets can be located, accessed and moved individually.
2) Rapid handling of almost all types of palletized goods.
3) Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs.
4) Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
5) Strength and rigidity prevents compression damage to goods.
6) Bottom level of pallets can be stored on the floor, lowering structure costs.
Benefits Using Selective Pallet Racking:
1) Selective pallet racking allows 100% access to every pallet location at any time.
2) When correctly designed there are few limitations to the type of goods that can be stored in selective pallet racking.
3) Selective rack is designed for your individual needs. It is configurable to suit your storage requirements, your warehouse parameters and your materials handling equipment.
4) Selective racking requires a relatively low capital investment, yet provides the highest flexibility.
Standard Specification (Customized Available) |
W2500×D800×H4000mm W2500×D900×H5000mm W2700×D900×H5000mm W2700×D1000×H6000mm W3000×D900×H4000mm W3000×D1000×H5000mm W3300×D1000×H5000mm W3300×D1200×H6000mm W3800×D1200×H7000mm W3800×D1200×H8000mm |
Rack Levels | 3 levels, 4 levels, 5 levels, 6 levels |
Load Capacity per Level | 1000KG, 2000KG, 3000KG, 4000KG |
Raw Material | high quality cold rolling steel Q235B(SS400) purchased from Shanghai Baosteel Group |
Material Thickness | 1.5mm, 1.8mm, 2.0mm, 2.5mm |
Surface Treatment | deoil, derusting and powder coat paint finish |
Rack Colors | standard blue, orange and customized available |
HS Code | 7308900000 |
Please kindly provide the below to us for quotation of heavy duty pallet racking :
• the CAD drawing of the warehouse (if available);
• the sizes and weight of the pallet (length, width, height)
• the size of the warehouse (length, width, clear height)
• the layers of each shelf
• the color that you want;
• the loading weight of each layer
• WE WILL PROVIDE Competitive price, GOOD QUALITY
Advantages of warehouse storage pallet racking :
• Indibidual access to all pallet to full height of warehouse.
• Simple stock rotation achieved
• Easy beam adjustment
• Compatible with many handling equipment style.
• Economical shelving beams can be added for level picking
