Product Details:
Payment & Shipping Terms:
|
Material: | Steel Q235B | Finish: | Corrosion Protection |
---|---|---|---|
Size: | Customzied | Structure: | Assembled |
Type: | Gravity Pallet Flow Racks | Color: | Customized RAL Color |
Feature: | Corrosion Protection, Adjustable | Weight Capacity: | 1000kg/pallet |
Highlight: | 1000kg/pallet Industrial Steel Storage Racks,Warehouse Industrial Steel Storage Racks,Gravity Flow Rack In Warehouse |

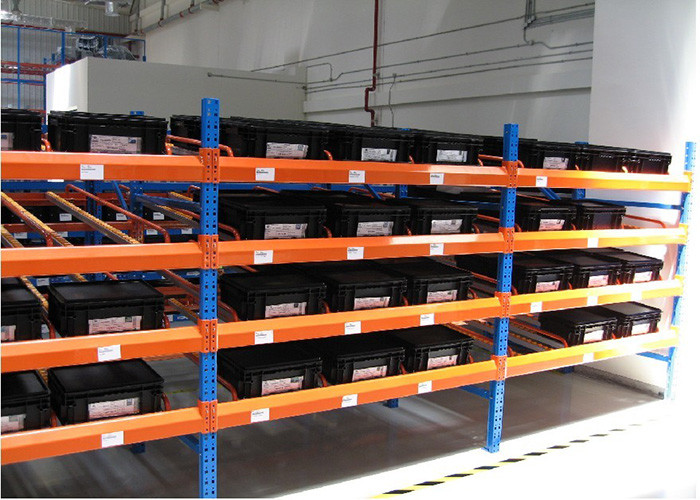

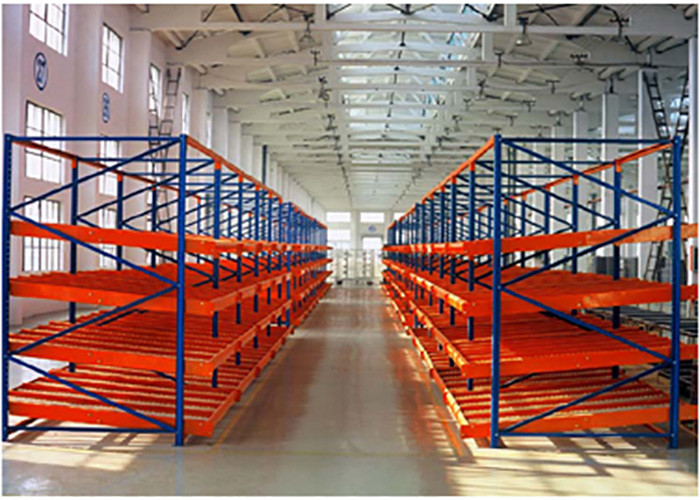

Heavy Duty Warehouse Industrial Steel Storage Gravity Pallet Flow Racks
Product Description:

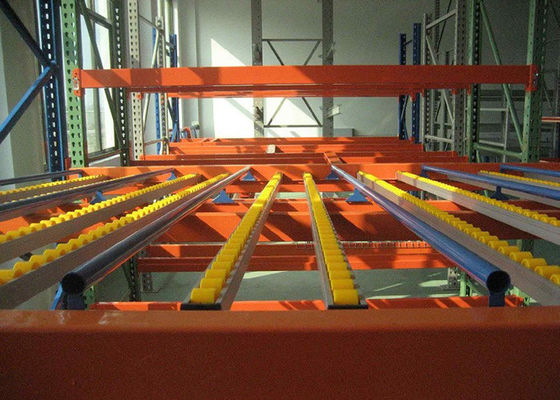

Regarding the gravity pallet flow rack, pallets are placed on rollers that slope toward the pick face by gravity driven, “first in and first out” is achieved. Pallets are fed in from one side, and retrieved from the opposite side eliminating double handling from the receiving area. Speed of throughput combined with automatic stock rotation is the major advantage of this system.
Features:
a) Cargo pallet save from higher end and slide to lower end, forklift can getthe first cargo easily;
b) greatly improvedwarehouse cargo access efficiency ;
c) High warehouse utilization rate & work efficiency, greatly reduce job waiting time;
d) No power needed, low energy consumption, no noise;
e) Dampers on the slide to lower cargo slide speed;
f) First in first out can be realized;
g) can be automatically sorted and inventory
h) No aisle needed, save forlift's driving time and less forklift needed.
Application:
It is suitable for storing goods with large quantity and same type taking full advantage of storage space. It is especially suit for the goods with short expiration date. Brakes should be equipped if the slope is long; separators and buffer is necessary to prevent the goods turn over.
The loading capacity is less than 1000kg per pallet. It can be used as buffer storage in shipping areas, production, goods reception and dispatch.
Food, beverage, chemical, tobacco and other single species, large quantities and relatively single item product.
Date critical cargo such as fruit and food can also be stored.
Specification:
Type | Pallet Flow Pallet Rack |
Dimension |
Width : 1800 2000 2300 2500 2700mm Depth : 600 800 900 1000 1200 mm Height : 1800 2000 2500 3000 4000 4500 5000 mm etc
|
Beam |
Box beam : 60*40, 80*40,80x45, 100x45, 120x45, 140x45, 160x45mm,180x45mm thickness 1.5-2.0mm |
Upright | 55x45, 90x65, 120x90mm, thickness 1.5-2.5mm |
Surface treatment | Electrostatic powder coating surface |

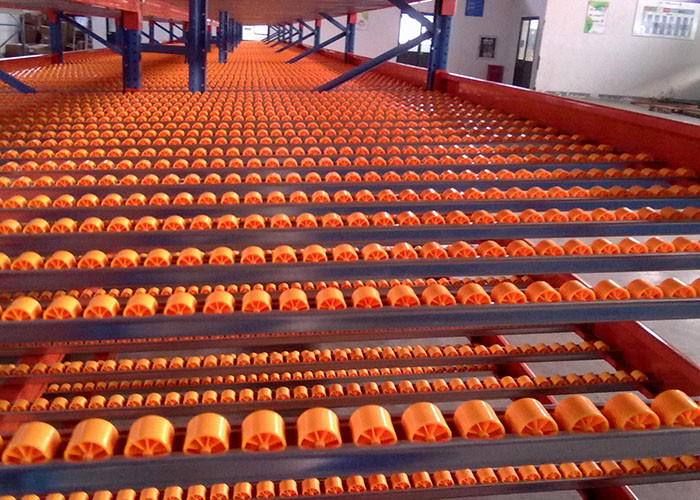

Gravity flow track | Roller gravity track, dimension according to pallet size |
Weight capacity | 1000--2000kg per pallet |
Package | export package by steel straps and plastic filims. |
Our Services:
We ensure the most productive warehouse pallet rack solution is provided whether working from your plans or developing a cost-effective layout that is just right for your needs. You are assured of the best designed, most efficient and safest racking.
We also supply accessories like collumn guard, barrier, decking panel, adjustable base plate, wire mesh plate, truck rail etc, and other material handling equipment for warehouse storage.
Please kindly provide the below to us for quotation of heavy duty pallet racking :
• the CAD drawing of the warehouse (if available);
• the sizes and weight of the pallet (length, width, height)
• the size of the warehouse (length, width, clear height)
• the layers of each shelf
• the color that you want;
• the loading weight of each layer
• WE WILL PROVIDE Competitive price, GOOD QUALITY
