Carbon Steel Q235 Cantilever Warehouse Racks , Raw Material Storage Racks

20 Sets
MOQ
Negotiation
Price
Carbon Steel Q235 Cantilever Warehouse Racks , Raw Material Storage Racks
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Carbon Steel Q235
Application: Pipe, Wood,plate, Steel Pipe, Constructure Material
Scale: Heavy Duty Material Racking Systems
Capacity: 250~800 Lbs (500~1500 Kgs)
Usage: Industrial Rack
Size: Customized Size
Application Environment: Normal Temperature Or Cold Room
Beam Connector Type: Slotted Rivet With Safelock
Highlight:

cantilever storage racks

,

industrial cantilever racks

Basic Infomation
Certification: ISO9001/14001
Model Number: W-CR2017522-2
Payment & Shipping Terms
Packaging Details: Wrapt in plastic film or in bulk.
Delivery Time: 15-20 Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 3500 Ton/Tons per Month
Product Description

Massive plate-type Cantilever Pallet Racking used pallet racking craigslist



Description:

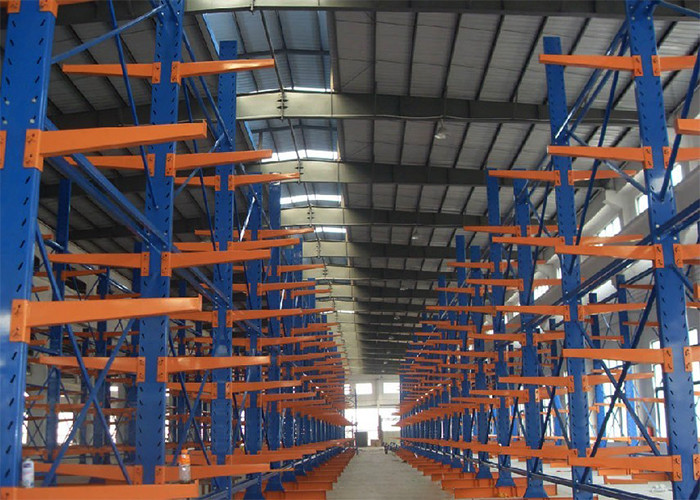

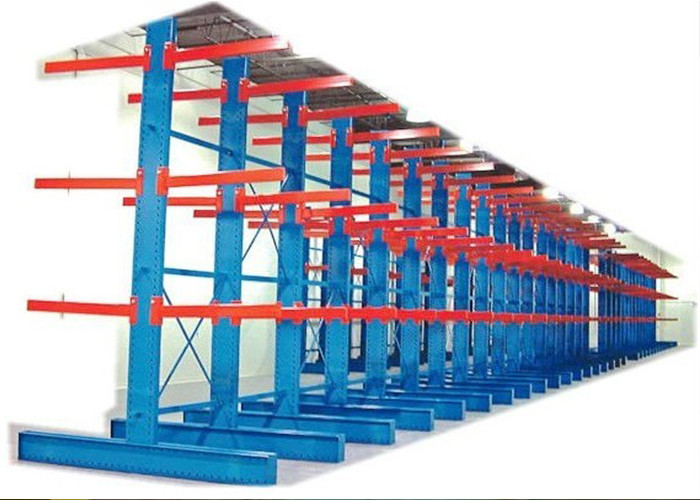

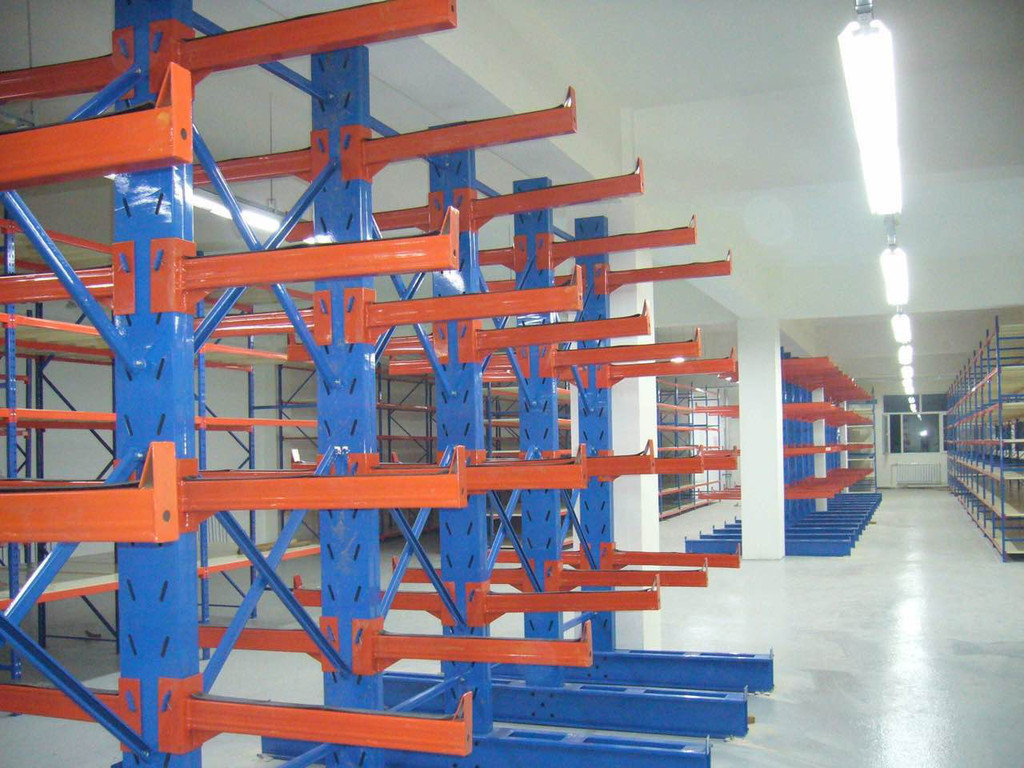

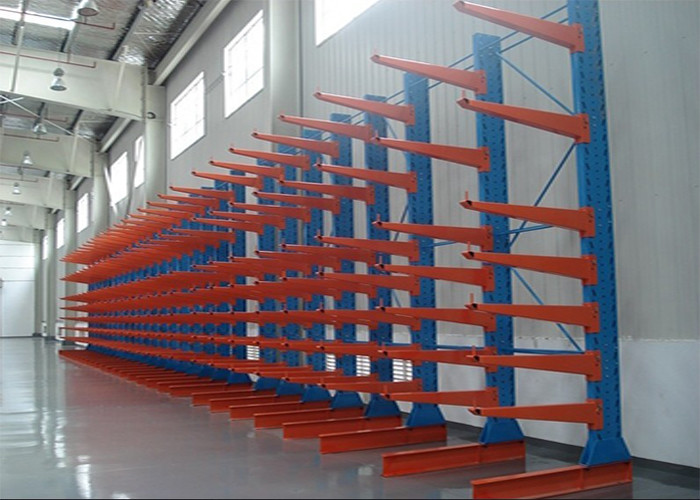

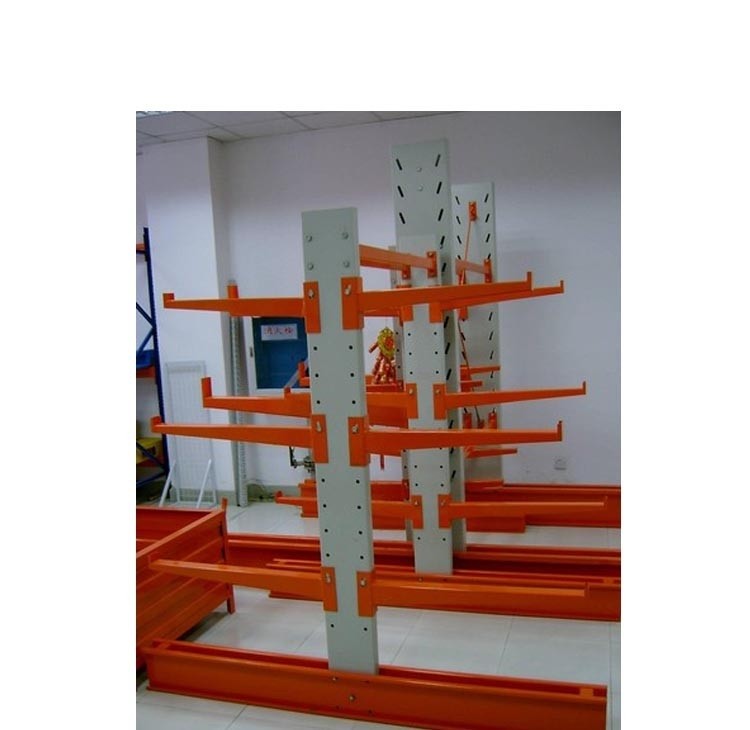

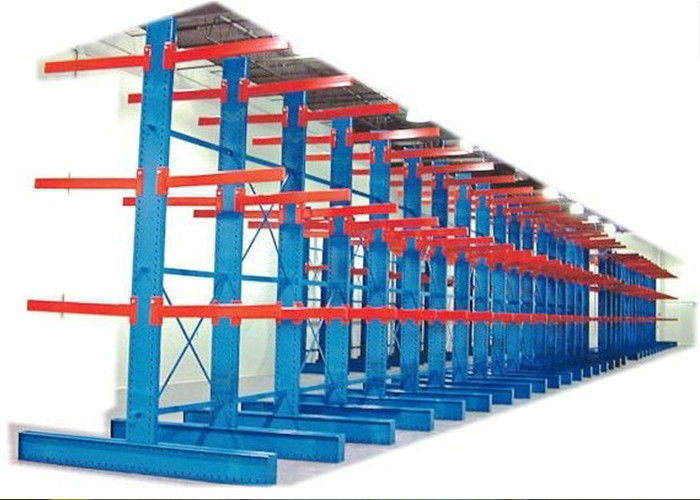

Cantilever rack is suitable for keeping materials of big, long size, such as pipes and shaped steel, etc. Materials are put on the cantilever. This is suitable for small warehouse, and is popular with machinery processing and building-material supermarket.Uprights, box beams, horizontal & diagonal braces, Upright footplates, safety locking pins, bolts & anchors Upright protectors,frame protectors Steel panels,wire mesh decks,side or back mesh panels High-quality static powder paint coating .High-quality steel Q235 (SS400). We are professional in making and designing varies storage shelves, also we can make it according to your requirement. If you are interested in our products, please feel free to contact us, there are various color, style, and sample for your selection. We will be at your service any time.



Specification:



Material
high quality cold rolled steel
Size
customized
upright
70x90x(1.8-2.5)mm
60x80x(1.5-2.0)mm
pipe
50x(80-160)x(1.5-2.0)mm
Surface treatment
plastic powder coating
colour
custom's need available according to Pantone colour
Features
-easy to install and dismantle
-service before and after sale
-high quality goods and checking carefully before delivery
-professional and in time delivery
package
separate packed,the truss,the shelves and upright posts wrapped with bubble film for long distance transportation.



Heavy weight shelves for warehouses Beam Post Distributed Loading Chart

UPRIGHT LOADING TABLE
  80x60x1.8 8500KG/BAY
  80x60x2.0 9400KG/BAY   100x70x1.8 11800KG/BAY
  90x70x1.8 10000KG/BAY   100x70x2.0 13500KG/BAY
  90x70x2.0 11800KG/BAY   100x70x2.3 15000KG/BAY
  90x70x2.5 15000KG/BAY   100x70x2.5 16300KG/BAY
BOX BEAM LOADING TABLE
Beam length (mm) 80*50*1.5 100*40*1.5 100*50*1.5 110*50*1.5 120*40*1.5 120*50*1.5 140*40*1.4 140*50*1.5 160*40*1.5 160*50*1.5
1500 4286
1800 2977
1900 2672 3809 4535
2200 1993 2841 3382 4219
2300 1823 2599 3095 3860 3918 4665
2400 1674 2387 2842 3545 3598 4284
2500 1403 2000 2381 2970 3014 3598 4340 5160
2600 1297 1849 2201 2745 2787 3318 4010 4771
2700 1203 1715 2041 2546 2584 3077 3716 4425 5068 6033
3000 974 1389 1655 2065 2093 2492 3010 3585 4105 4887
3300 708 1010 1202 1500 1522 1812 2189 2610 2985 3555
3600 600 849 1010 1260 1279 1523 1839 2190 2508 2986
3800 540 762 907 1135 1148 1369 1658 1965 2251 2680
4000 485 687 818 1024 1036 1235 1550 1774 2032 2419


 FAQ



Q: What is your trading terms?
A:
1. Payment term: T/T 30% deposit after order confirmed, 70% balance paid against bill of lading. Or L/C.
2. Lead time: Normally in 30 days after deposit received.
3. Sample policy: Samples are always available for each model. Samples can be ready in 7-15 days once payment received.
4. Shipping port: Shanghai China.


Q: What is your service?
A:
1.Your inquiry related to our products or prices will be replied in 24 hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English.
3.OEM&ODM, any your customized racks we can help you to design product.
4.We have very experienced professional engineers to make best solutions.



Q: How I can delivery my goods?
A:

1. Sea Freight: We will update sea freight once we know your sea port where goods will be delivered.
2. Agent designated by client: Please tell us the contact detail of your shipping agent and we will arrange to deliver the items.


Q: How to purchase your product?
A:
Design drawing → Confirm drawing →Quotation → PI → Confirm PI → Arrange 30% deposit →Manufacturer→QC inspect → Pay balance → Shipping

Q: What is your advantage?
A:
1. Warranty: Two years warranty, the broken parts will be replaced and sent to you.
2. Factory price: Factory direct sale competitive price.
