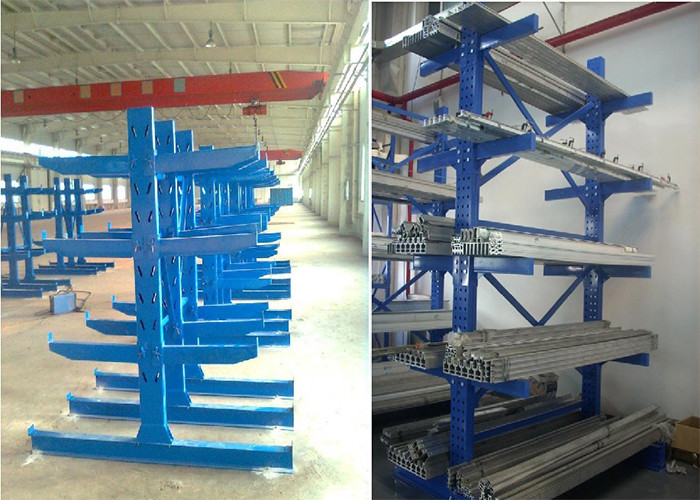

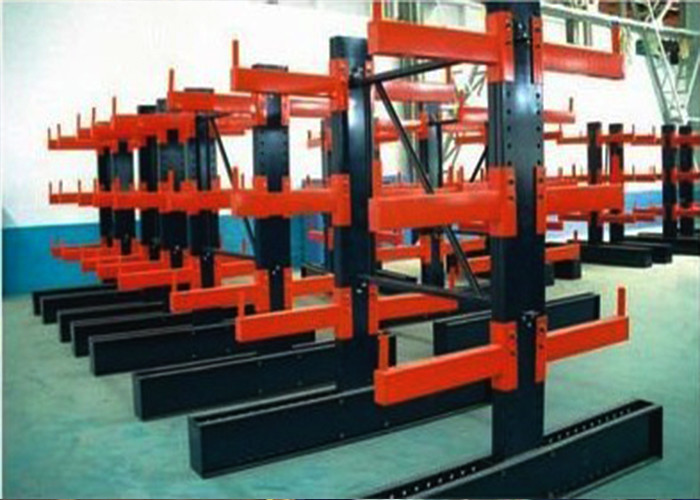

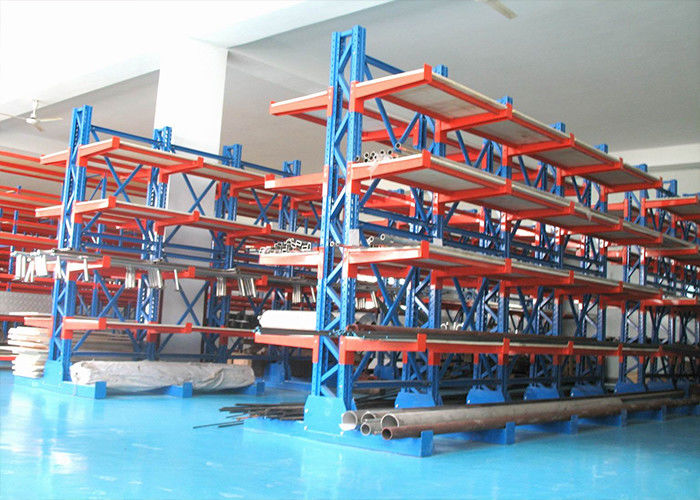

Double Sided Cantilever Pallet Racking Shelving Customized Size

Double Sided Cantilever Pallet Racking Shelving Customized Size
Double Sided Cantilever Pallet Racking Shelving Customized Size Double Sided Cantilever Pallet Racking Shelving Customized Size Double Sided Cantilever Pallet Racking Shelving Customized Size

Large Image :  Double Sided Cantilever Pallet Racking Shelving Customized Size

Product Details:
Certification: AS4084
Model Number: ZJ-CR20174296
Payment & Shipping Terms:
Minimum Order Quantity: 10 Sets
Price: Negotiation
Packaging Details: foam or in bulk.
Delivery Time: 15-20 Days
Payment Terms: T/T, L/C, Paypal
Supply Ability: 3500 Ton/Tons per Month
Detailed Product Description
Material: Steel Q235 Name: Heavy Duty Cantilever Warehouse Racks
Capacity: 250~800 Lbs (500~1500 Kgs) Usage: Industrial Rack
Size: Customized Size Application Environment: Normal Temperature Or Cold Room
Beam Connector Type: Slotted Rivet With Safelock
High Light:

Double Sided Cantilever Pallet Racking


Customized Cantilever Pallet Racking


Cantilever Pallet Rack Shelving

High Quality Double-Sided Heavy Duty Storage Cantilever Pallet Racking


Designing factors:


What types of cantilever racking you need -- double sided or single sided?


What’s the rack size W×D×H? -- most popular is W=1200mm and extra bay can be extended, D=1000mm or 2000mm, H=3600mm


How many arm levels you want-- most popular is 3 or 4 levels


Load carry capacity per arm-- most popular is 300 or 500KG


If possible send us your warehouse layout and tell us your requirements so that we can set up designing for your side confirmation




We offer a complete range of cantilever racking systems for the storage of long goods. For loads varying from 50 to 1000 kg per cantilever arm and for most types of long goods an optimized storage solution can be provided.


Typical long goods are metal and plastic tubes, wooden boards, hot rolled steel profiles. The construction of our cantilever racking is made of hot rolled steel profiles  in various sizes. The standard finish is a high quality epoxy polyester powder coating for inside applications or a hot galvanized coating for outside applications.


Zhijia line of cantilever storage racks are an ideal storage solution in many situations. These flexible and compact industrial storage rack designs help you lower handling time and costs.

Cantilever racking is ideal for the safe and organized storage of long and heavy loads. They are also ideal systems for storing steel bars, pipes, tubes, furniture and packs of timber. Some of them are also suitable for storing boards, metal sheets or large and valuable items such as crates or boxes and even white goods.

The products are stored horizontally on the arms and handled either manually or by using forklift truck or cranes. The best solutions provide a clear layout with easy access, as they do away with the need for vertical uprights at the front of the racking and use the minimum of space, all at low cost.

Cantilever racking is available in both single sided and double sided configurations. The double sided rack provides maximum storage capacity on a single central column while the single sided rack is designed to fit flush against a wall.

Being modular in nature, additional arms, uprights and braces may be added as storage requirements change.


Technical Characteristics of Cantilever Racking:


The column and foot are welded or bolted together


The cantilever racks can be used single or double sided


Column heights of up to 5 meter, perforated every 75mm


The cantilever racking is suitable for forklift and crane handling


Ground guidance can be provided as an option


The arms are bolted and adjustable per 75mm, corresponding with the sizes of the stored goods


Arm lengths of our Cantilever racking range from 600 to 2500mm






Product Name

Cantilever Racking System


Unit Bay Specification

(Customized Sizes Available)

Single Sided

Double Sided









Cantilever Rack Levels

2 levels, 3 levels, 4 levels, 5 levels

Arm Length

600mm, 1000mm, 1200mm, 1500mm

Arm Load Capacity

300KG, 500KG, 700KG per arm

Raw Material

high quality cold rolling steel Q235B(SS400) purchased from Shanghai Baosteel Group

Material Thickness

1.5mm, 1.8mm, 2.0mm, 2.5mm

Surface Treatment

deoil, derusting and powder coat paint finish

Rack Colors

standard blue, orange and customized available

HS Code
































Double Sided Cantilever Pallet Racking Shelving Customized Size 0
