Product Details:
Payment & Shipping Terms:
|
| Material: | Steel, SS400 A36 Q235 Etc | Usage: | Warehouse Storage System |
|---|---|---|---|
| Style: | Adjustable Shelf Height | Weight Capacity: | 100kg-200kg/layer |
| Feature: | Corrosion Protection | Color: | Different Colors Available |
| Type: | Multi-Level | Technique: | Cold Rolled |
| Highlight: | Steel Industrial Warehouse Racking Systems,Metal Storage Shelving Rack Systems |
||
Hardware Light Duty Storage Racky warehouse storage racks,collapsible storage rack
Description:

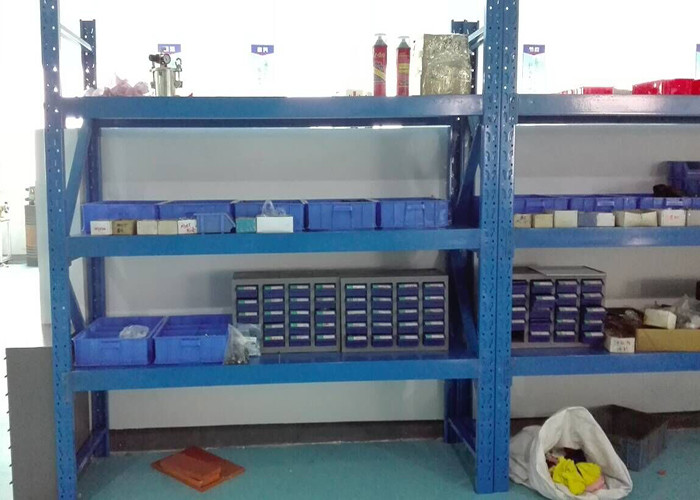

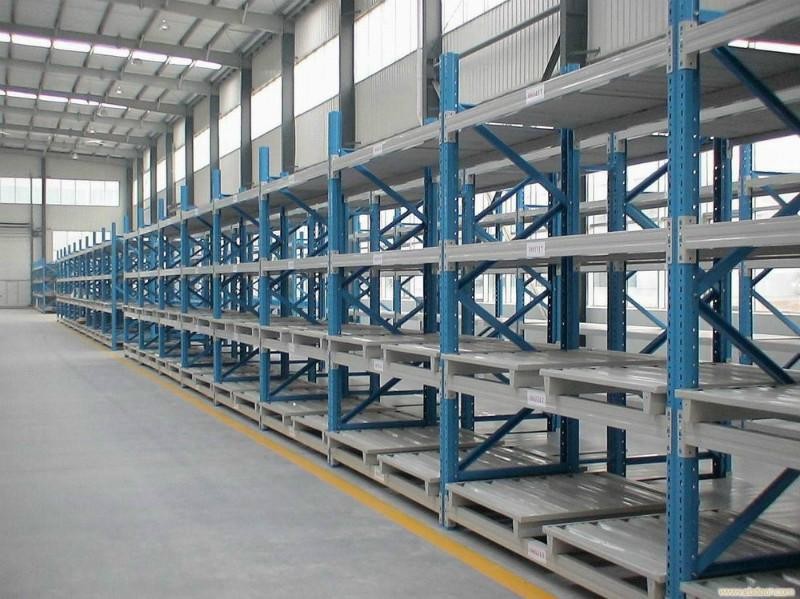

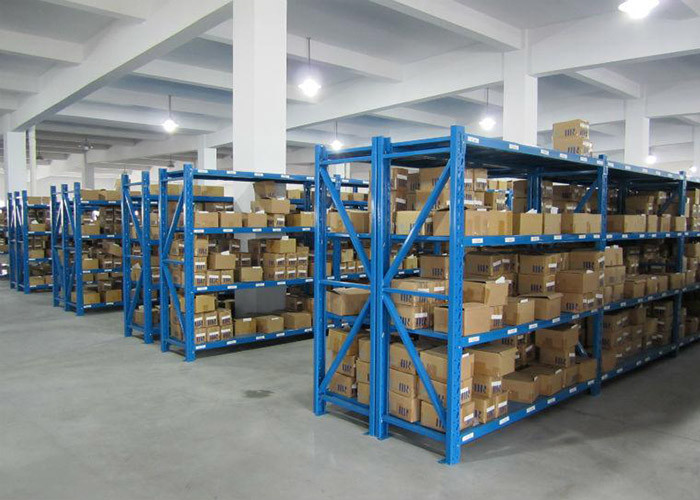

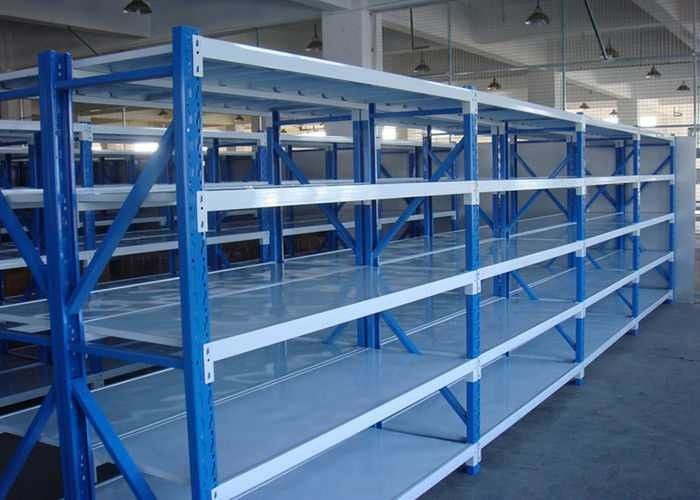

The light duty racking is easy to be assembled or disassembled, nice surface treatment, usually being used in warehouse or supermarket for storage or display. Loading capacity 50-150 kg per layer, multi-combination, powder coated or Galvanized.
Features:
1. All-purpose slot angle steel upright.
2. Cut-in composite usually with steel panel.
3. Simple and quick assembled and dismantled
4. Height of each level can be adjusted freely by pitch of 75mm
5. Loading and unloading by hand
6. Loading capacity 100-200kg per level
7. Powder coating finish and various color be available
|
SPECIFICATIONS
|
|
|
Dimension:
|
L: 1200/1500/2000/2500(mm)
|
|
W: 600/800/900/1000/1100/1200(mm)
|
|
|
H: 2000/2500/3000/4000/5000(mm)
|
|
|
Specail sizes also avaiable to specific storage needs.
|
|
|
Main Parts Specs(mm):
|
Upright section: 2000*500*45*50*1.0MM
|
|
Beams section: 1400*40*60*1.0
|
|
|
Layer: 480*690*0.3
|
|
|
Material:
|
High-quality steel,Q235 industrial storage racks
|
|
Finish:
|
High-quality Powder Coating Finish. industrial storage racks
|
|
Quick Delivery
|
Within 10 days for ordinary order quantity. Big production capacity allow us in a position to make quick delivery.
|
Supply Ability & Trading Terms:
| Terms of payment | T/T,30% deposit in advance, the balance before the shipment, or negotiation |
| Trade terms | EXW, FOB, CIF, C&F |
| MOQ | 100 PCS OR 30 PCS |
| Production Ability | 10000 units/month |
| Production Leadtime | It depends, normally 20-30 days after receiving the deposit |
| Packing |
KD structure, knocked down, PE foam inside, multi-layer of carton outside, or neutral packing |
Manufacturing process
Raw materials(Wisco)→Cold rolling→Fixed length→Punching(Welding)→Rectify→Surface powder coating→Packing→Finished product
Surface treatment:
The process flow:Raw material→Unoil→Rust removal→Pre-dips→Phosphating→Drying→Powder coating→Curing→Packing
1. Shelf surface treatment using electrostatic spray process of epoxy, powder coating 60~80 microns
2. Electrostatic powder spraying adhesion level 0 in GB92865-88 standard requirement.
3. Hardness(abrasion resistance) as 100 times more than ordinary lacquer, achieve GB6739 the 2 h - 86 standard requirements, namely the 2 h pencil test without scratches.
4.Corrosion resistance (hydroelectric acid) GB1771-91 more than 500 hours.
Accurate color configuration and material requirements:
1. Column: Color RAL5010——Blue;Material Q235,Wisco.
2. Beam:Color RAL2004——Orange;Material Q235,Wisco.
Standard Export Seaworthy Packing Knockdown packing with plastic air bubble film package, save transportation cost, safe for long distance transportation.
why choose us
1. We are the original manfacture with more than10 years professional experience in racks & shelves industry.
2. We have professional design team, we can design what you want according to your requirements.
3. We mainly deal in various kinds of storage equipment, including warehouse shelving,metal dispaly rack, wire rack, supermarket shelf, logistics trolley, ladder truck, iron chuck plate, storage cage, materials rack, stacking shelf, tool cabinet, (vehicle) locker, roller, and so on.
4. We enjoy a high reputation for excellent quality and reasonable price all over the world, our products are popular among America, Europe, Australia, Canada, India, South Africa, Japan, ect.
5. We are direct manufacturer, please feel free to contact us.
6. More than two hundred set advanced technology machines.
7. We promise to provide high quality products and the best services for you!
Required information from customers for quick quote:
1. the AUTOCAD drawing or draft drawing of warehouse or racking.
2. the size of the warehous, length, height, and width.
3. how many layers of the racking?
4. your pallet size.
5. max weight of pallet with cargo on.
6. special color requirement.
