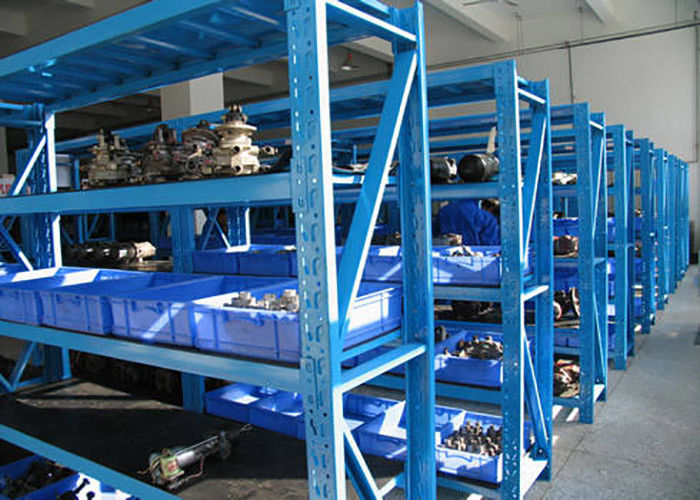

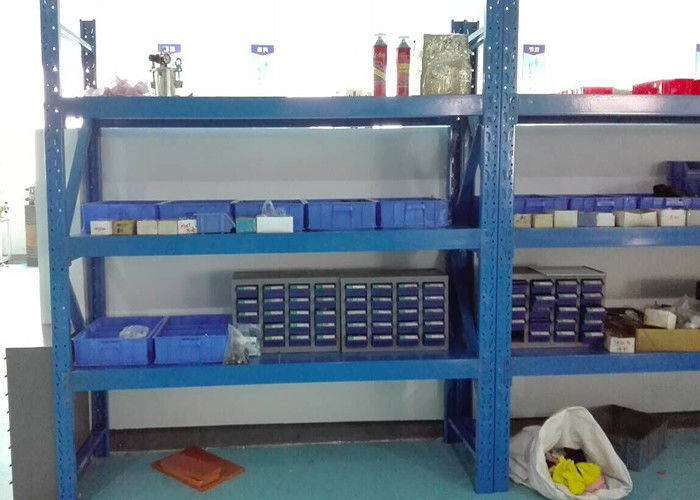

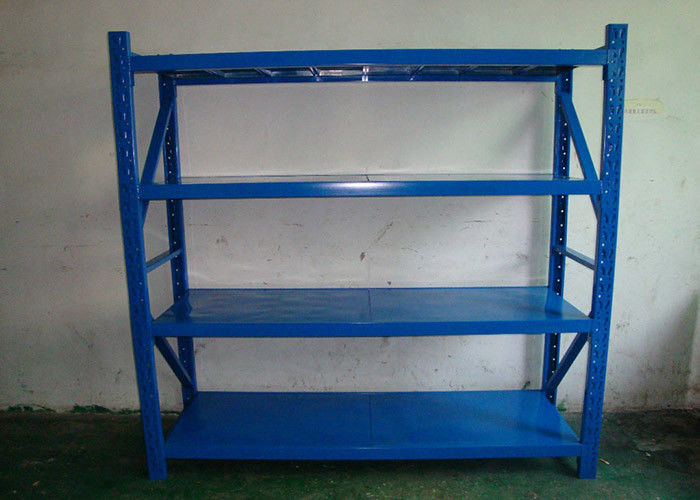

Durable light duty racking with steel material for supermaket or warehouse
Description:
The light duty racking is easy to be assembled or disassembled, nice surface treatment, usually being used in warehouse or supermarket for storage or display. Loading capacity 50-150 kg per layer, multi-combination, powder coated or Galvanized.
Features:
1. All-purpose slot angle steel upright.
2. Cut-in composite usually with steel panel.
3. Simple and quick assembled and dismantled
4. Height of each level can be adjusted freely by pitch of 50mm
5. Loading and unloading by hand
6. Loading capacity 100-200kg per level
7. Powder coating finish and various color be available
|
Item Name
|
Light Duty Warehouse Storage Rack
|
|
Item No.
|
R1
|
|
Material
|
Steel
|
|
Color
|
Blue, orange, white
|
|
Size
|
L1500x W600x H2000mm
|
|
MOQ
|
50piece
|
|
Packing
|
Cartons& Bubble film
|
|
Price Term
|
EXW or FOB price
|
|
Payment terms
|
30% T/T in advance,70% balance before delivery
|
|
Delivery time
|
Usual 7-25 days ( after received your deposit ), on-time delivery
|
|
Shipment
|
By sea, by air,by express
|
|
Feature
|
Steady high quality, professional service, competitive price.
|
manufacturing process
Raw materials(Wisco)→Cold rolling→Fixed length→Punching(Welding)→Rectify→Surface powder coating→Packing→Finished product
Surface treatment:
The process flow:Raw material→Unoil→Rust removal→Pre-dips→Phosphating→Drying→Powder coating→Curing→Packing
1. Shelf surface treatment using electrostatic spray process of epoxy, powder coating 60~80 microns
2. Electrostatic powder spraying adhesion level 0 in GB92865-88 standard requirement.
3. Hardness(abrasion resistance) as 100 times more than ordinary lacquer, achieve GB6739 the 2 h - 86 standard requirements, namely the 2 h pencil test without scratches.
4. Corrosion resistance (hydroelectric acid) GB1771-91 more than 500 hours.
Accurate color configuration and material requirements:
1. Column: Color RAL5010——Blue;Material Q235,Wisco.
2. Beam:Color RAL2004——Orange;Material Q235,Wisco.
Packaging & Shipping
Standard Export Seaworthy Packing. Knockdown packing with plastic air bubble film package, save transportation cost, safe for long distance transportation.
Required information from customers for quick quote:
1. the AUTOCAD drawing or draft drawing of warehouse or racking.
2. the size of the warehous, length, height, and width.
3. how many layers of the racking?
4. your pallet size.
5. max weight of pallet with cargo on.
6. special color requirement.
