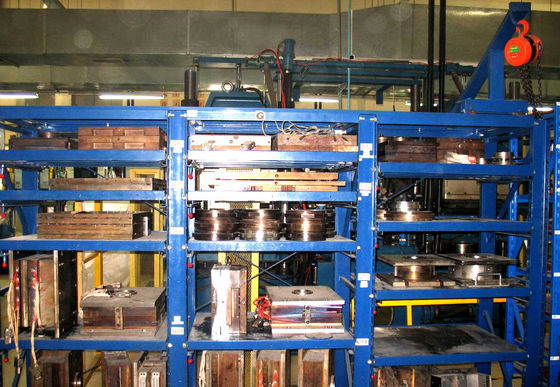

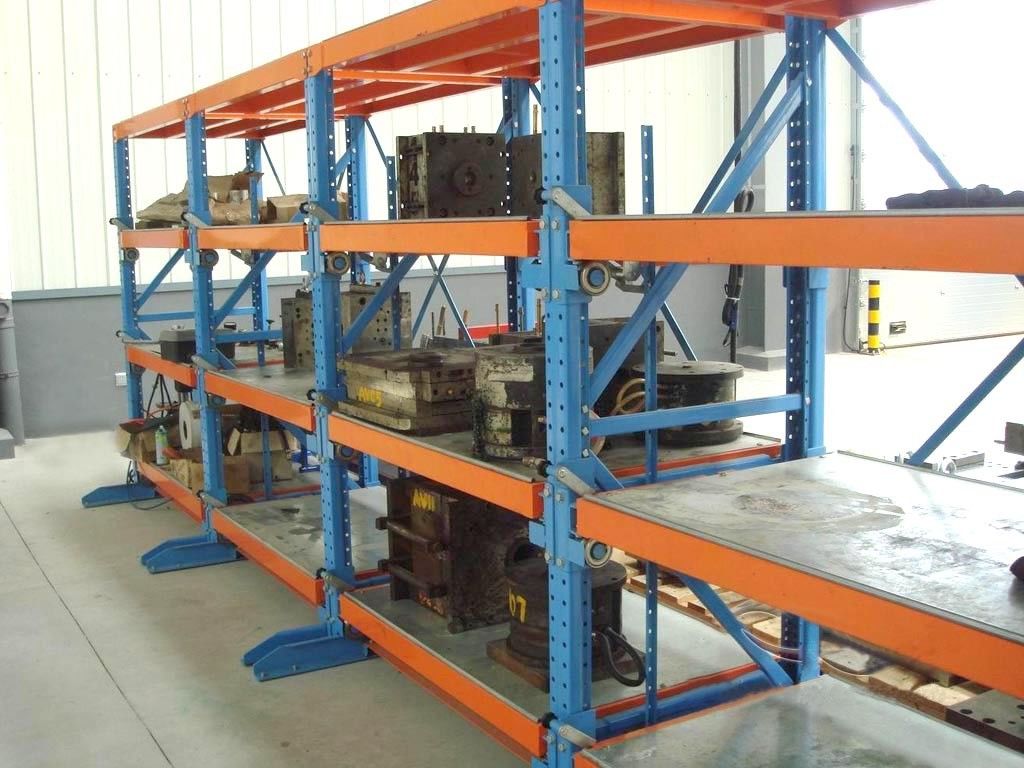

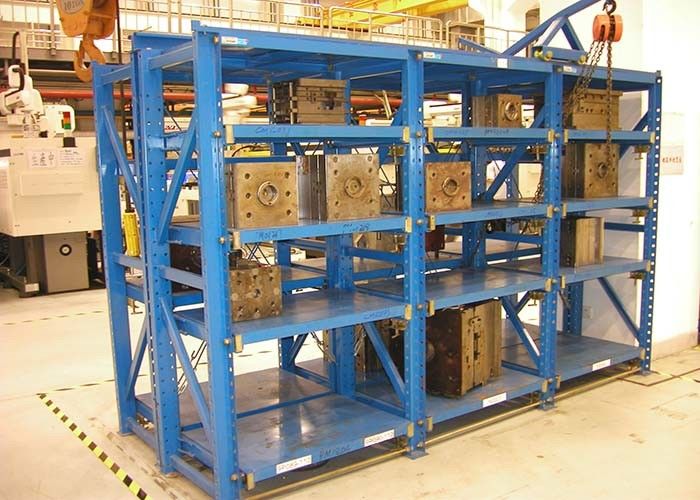

Adjustable Drawable Mold Storage Racks Systems For Plastic Mould Industry 2T Weight Load

Adjustable Drawable Mold Storage Racks Systems For Plastic Mould Industry 2T Weight Load
Adjustable Drawable Mold Storage Racks Systems For Plastic Mould Industry 2T Weight Load Adjustable Drawable Mold Storage Racks Systems For Plastic Mould Industry 2T Weight Load Adjustable Drawable Mold Storage Racks Systems For Plastic Mould Industry 2T Weight Load Adjustable Drawable Mold Storage Racks Systems For Plastic Mould Industry 2T Weight Load

Large Image :  Adjustable Drawable Mold Storage Racks Systems For Plastic Mould Industry 2T Weight Load

Product Details:
Certification: ISO9001/14001
Model Number: W-MC527
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Price: Negotiation
Packaging Details: Wrap in plastic film or in bulk.
Delivery Time: 15-20 Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 3500 Ton/Tons per Month
Detailed Product Description
Product Name: Industrial Heavy Duty Drawer Steel Mould Storage Racks Weight Capacity: ≥800kg/lever
Drawer Rack:: Adjustable Standard Size:: H2000*D615+335*L3100
Color::: RAL System / Blue, Orange Or Customized Feature:: Corrosion Protection
Layer: 2-6
Highlight:

Adjustable Mold Storage Racks

,

Drawable Mold Storage Racks

,

ISO9001 Mold Storage Rack Systems

2T Weight Load Drawable Mould Storage Racks for Plastic Mould Industry



Description:



Adjustable Mold Storage Rack is also called tooling rack

Mould Storage Racks is mainly used for storage of all kinds of mould, which could be assembled with manual movable carriage on the top so as to easily take and retrieve the goods. The side rack was equipped with idler wheel rail on the bottom and the sliding shelf panel could be freely pulled out when loading. The middle type slide rack could carry less than 800KG/Drawer, and the heavy type slide rack could load more than 1000 KG/Drawer. The entire rack is section combination structure, which is convenient for transport, and the assembly is simple and fast and this rack possesses better safety protection device. Special drawer type mold rack can be ordered.



Specification:



Storage heavy duty drawer die mold rack
1. Features
Surface Metal storage warehouse mould placing rack treatmet:
power coated;
Packing:
Neutral paper box or in bulk or upon clients requirements;
Size
As customer's request;
Container load:
10-15 ton per 1x20 container, 20-25 ton per 1x40 container
Payment terms:
TT/ Sight LC
2. Material:
High grade Q235B Cold Rolled Steel
3. Surface Treatment:
High-quality Powder Coating Finishing.
4. Drawer die mold rack Load Capacity & Dimension:
1) Loading capacity: 800kgs /pair beam.
2) Height: 2000mm
3) Depth: 600mm(Inside)
4) Length: 900mm(Inside)
Special sizes also available to specific storage needs.
5. Main Parts Specs(mm):
1) Upright: 10# C shaped Steel
2) Drawers:50*50*T2mm or T4mm
3) Horizontal & diagonal bracings: 40*24*1.5mm
4) Anchors and all necessary components.
6. Certificates.
CE certified, ISO9001,
7. Quick Delivery.
Within 15 workdays (negotiable), according to quantity

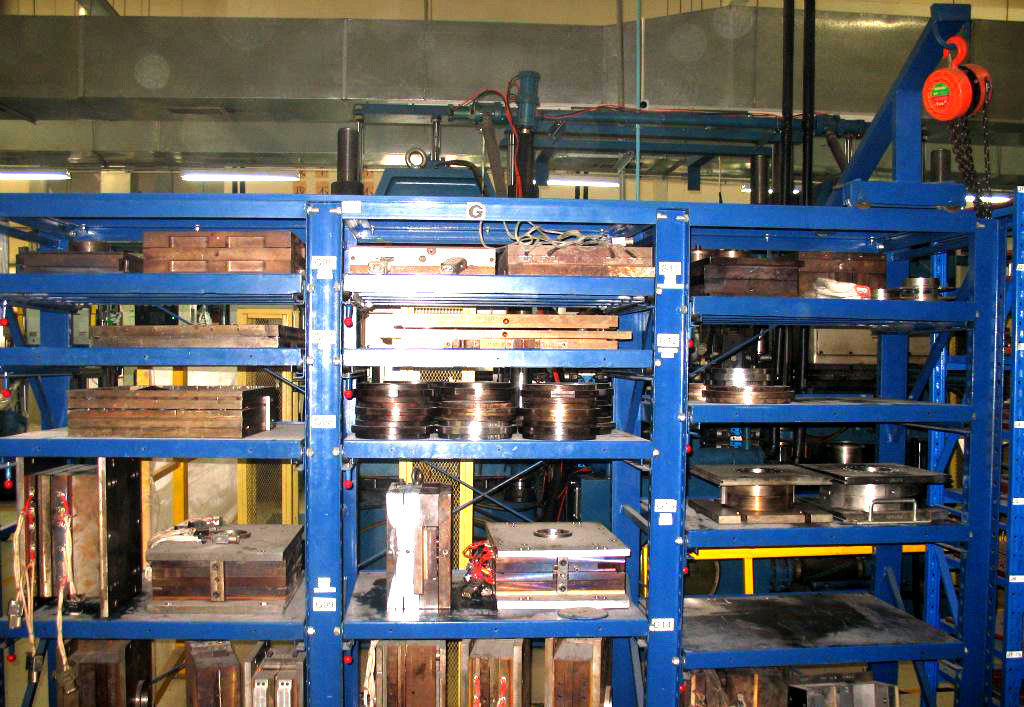

Adjustable Drawable Mold Storage Racks Systems For Plastic Mould Industry 2T Weight Load 0

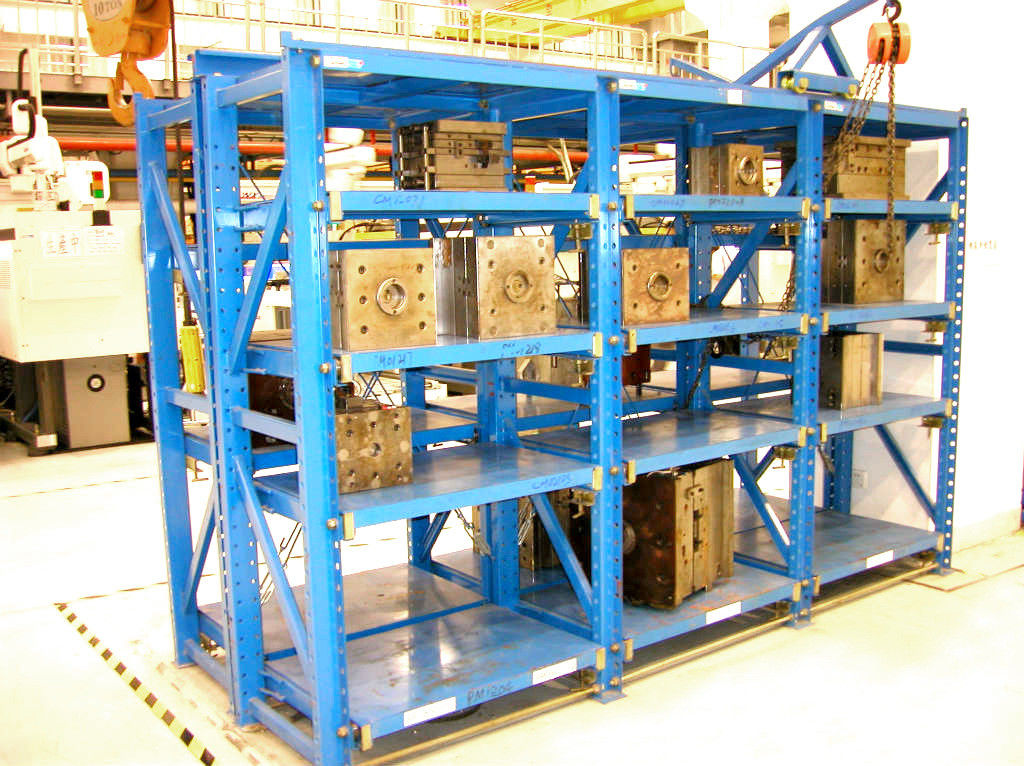

Adjustable Drawable Mold Storage Racks Systems For Plastic Mould Industry 2T Weight Load 1

OEM Service is Available



Order → discuss → paper processing draft → your confirmation → sample process→ your approval → bulking manufacture



1. let us know your requirement

2. we discuss with each other

3. get your confirmation

4. we draw paper processing draft for you

5. get your confirmation once again

6. we will provide you sample of pre-production

7. get your final approval

8. start the formal production



FAQ:



1. Q:Are you a factory or trading company?
A:We are a factory.

2. Q:Where is your factory located? How can I visit there?
A:Our factory is located at Hengli Town, Dongguan city, China, which is just 1 hour driving away from HK. You are always to pay a factory tour to our factory.

3. Q:What is he material of your products?
A: The material is Q235 Cold rolled steel . We can also choose material as customers’ requirement.

4. Q:How can I get some samples?
A: Just feel free to send us drawing, we will try to meet your requirement and offer you some samples for reference or confirmation.
