Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial Heavy Duty Drawer Steel Mould Storage Racks | Weight Capacity: | 1000kg/drawer |
|---|---|---|---|
| Drawer Rack:: | Adjustable | Standard Size:: | L3100*D615*H2000 |
| Color::: | RAL System / Blue, Orange Or Customized | Feature:: | Corrosion Protection |
| High Light: | Custom Drawer Storage Rack,Industrial Drawer Storage Rack,Steel Heavy Duty Mold Rack |
||
Industrial Heavy Duty Drawer Steel Mould Storage Racks, Customized by Clients

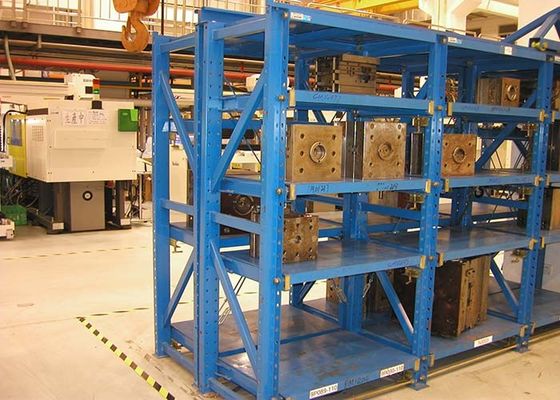

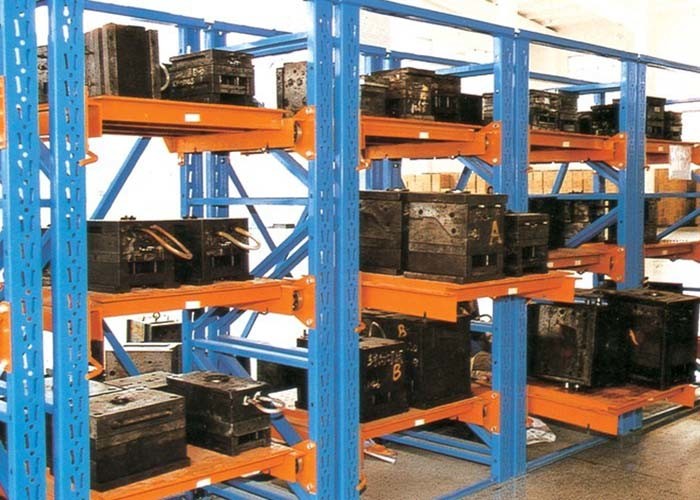

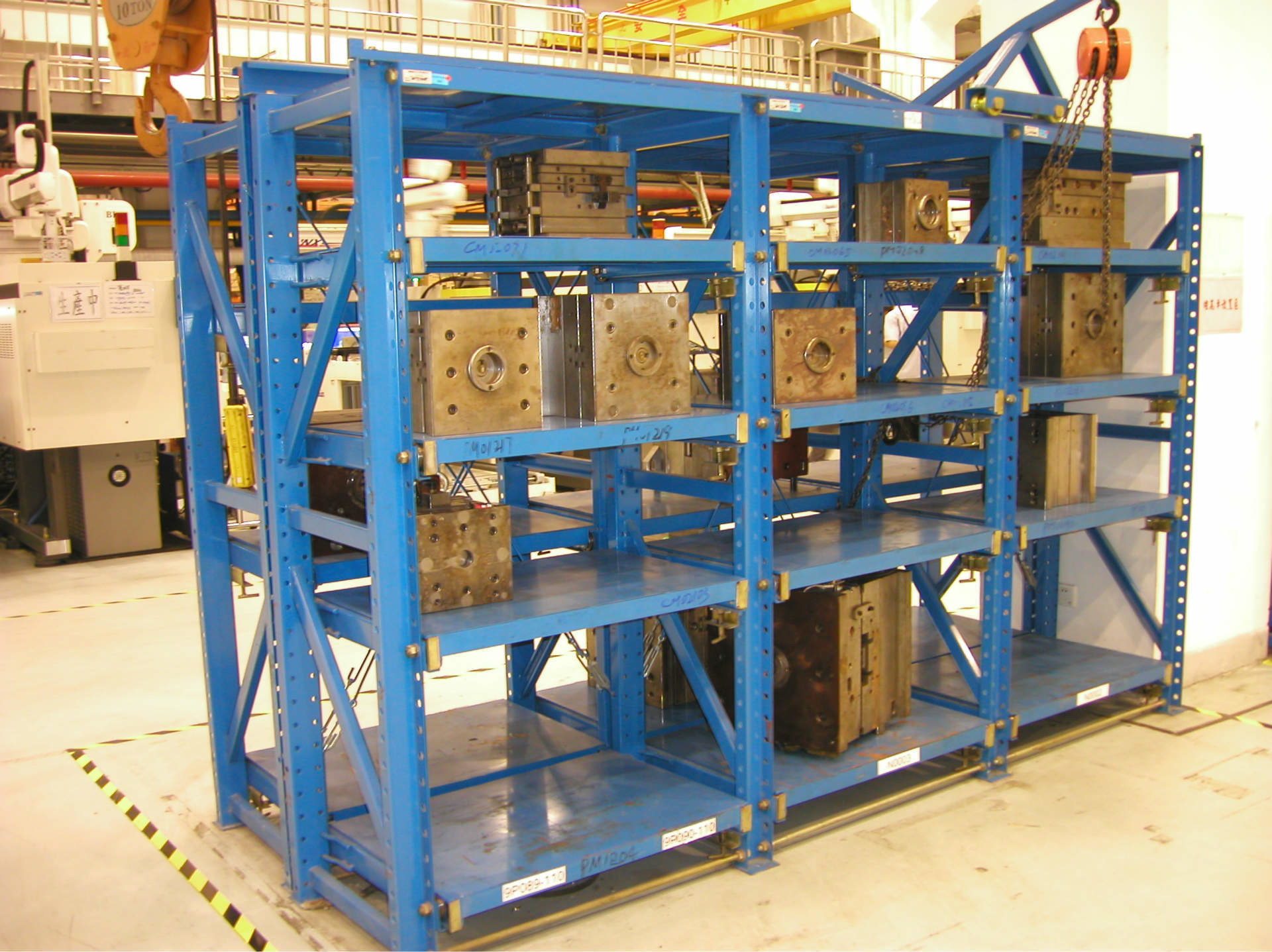

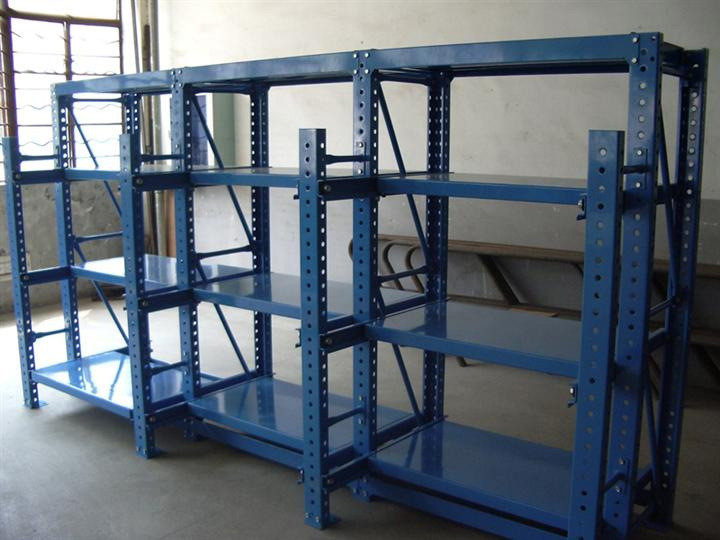

Mold Storage Rack is also called drawer rack , mainly used for mold, hand chain hoists can be used at the top of mold rack, easily for loading and unloading, drawer plate can be freely moved with perfect protecting equipment, the overall rack is designed by assembling structure.
Features:
1. Add additional fixing equipment, can be used safely;
2. Easy operation: with bearing assembly, sliding easy and can work with crane devices;
3. Save space and cover less area, 3*4 standards shelf can be deposited with dozens dies;
4. Simple structure: composed by a variety of components, easy for transport and assembly;
Description:
Mould Storage Racks is mainly used for storage of all kinds of mould, which could be assembled with manual movable carriage on the top so as to easily take and retrieve the goods. The side rack was equipped with idler wheel rail on the bottom and the sliding shelf panel could be freely pulled out when loading. The middle type slide rack could carry less than 800KG/Drawer, and the heavy type slide rack could load more than 1000 KG/Drawer. The entire rack is section combination structure, which is convenient for transport, and the assembly is simple and fast and this rack possesses better safety protection device. Special drawer type mold rack can be ordered.
Specification:
Rack Height: | 1500mm; 1700mm; 1900mm; 2100mm |
Layer Amount: | 4-8 layers |
Finishing: | Paint coated, hot dipped galvanized or as per customers’ requirement |
Frame Color: | Blue, white,green or as customer's request |
Layer Sheet Specification: | Cold rolled steel plate, 2mm thickness |
Upright Specification: | 25 ×25mm Channel Steel |
Beam Specification: | 50×30×0.8mm P-type Steel |
Bearing Capacity: | Average 1000-3000kg/layer( Tile bearing) |
Feature: | Easy extracting with drawwer plate and |
We accept OEM. | |
Product Name | tool storage mould rack | ||
Product No. | MJ | ||
Max.loading capacity | ≤3000kg/layer. | ||
Vertical Upright specification | Customized | ||
Boxed Beam specification | Customized | ||
Color | Customized | ||
Material | High-quality steel,Q235 | ||
Application | warehouse | ||
Finish | Powder coated | ||
Feature | Corrosion protection | ||
MOQ | 5pcs | ||
Payment Terms | T/T ; L/C;Westerb Union | ||
Delivery Time | Shipped in 20 days after payment | ||
Packing Details | Packed in foam | ||
Certification | SGS | ISO9001 | AS4084:2012 |
OEM&ODM | Support | ||
Characteristic 1. Requires site-storey building Combined platform shelf lowest point ≥4M, can make full use of space, doubling the Treasury area. 2. Simple structure, low cost, open space on the lower, strong carrying ability, integrity, and security. 3. Design aesthetics, structure and generous. Combined installation, easy removal, according to the ground, flexible design. 4. The upper and lower floors cargo trucks Alternatively, lifting platforms, freight and other means. | |||
Our Advantages:
Direct manufacture
High quality with competitive price
Big production capacity
OEM & ODM services offered
Complete pre-sale service and after-sale services
Diversified products for choices
Customer's satisfaction up to 95%
