Product Details:
Payment & Shipping Terms:
|
Material: | Steel Q235/Q345, Steel Q235/245 | Finish: | Corrosion Protection |
---|---|---|---|
Name: | Steel Mezzanine Floor | Structure: | Assembled |
Color: | Orange,Blue,Black,Gray | Weight Capacity: | Maximum 1000kg/m² |
Length Span: | 3000-6000mm/upright | Width Span: | Max 6000mm/upright |
Highlight: | Multi Level Steel Structure Mezzanine Floor,Steel Mezzanine Floor For Office,Steel Structure Mezzanine Floor For Warehouse |

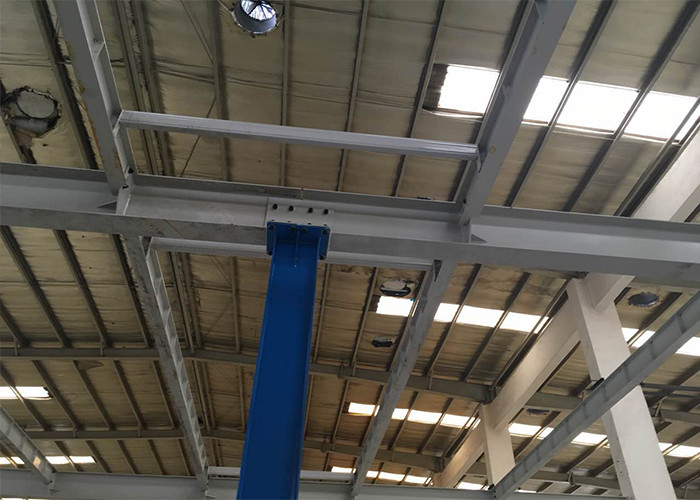

Designed Multi-level Steel Structure Storage Industrial Mezzanine Floors
Description:

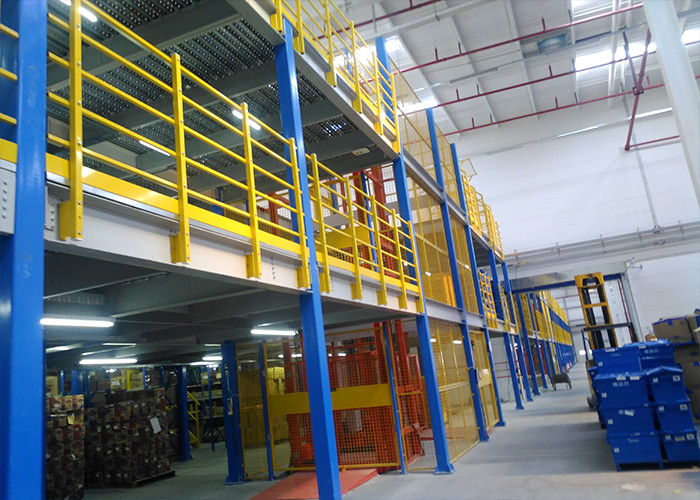

It's supported by racks,and a mezzanine is built on the upper layer,them the lower racks can store goods in order.The upper mezzanine has better load capacity,and the ground load capacity is relatively average.
It's widely used in these situations:warehouse is high;goo`ds are small;accessing goods by manpower,storage edmand is large.Besides,it can be applied to renovate old warehouse,to improve the warehouse space utilization.Single layer or multi-layer mezzanine can be designed according to the acrtual area and specifica requirements to make full use of space and save warehosue area.Normally it's 2-layer or 3-layer,and stairs,handrails and cargo elevators are equipped.
1. With composite racking structure, patented light-steel floor panel structure
2. Floor panel with large load capacity, low cost, quick construction
3. Can be designed into one layer or multi-layers according to actual situation
4. Ensures fullest space utilization
5. Provides direct access to all pallets
6. Surface: powder coated or galvanized and color optional
7. Can be designed according to clients' requirements
Futures |
1. Doubly make use of ground space |
Advantages |
Versatility and flexibility to meet any storage needs:
1. The most commonly used, of all storage systems for palletised goods. Low capital cost. 2. Easy installation and simple to adjust. 3. Compatible with most types of handling equipment. 4. Less storage density compared to other pallet racking systems. 5. Infinitely adjustable and offering a wide range of options and components. 6. Maximizes space use in any warehouse configuration while retaining optimum product accessibility. 7. quality garantee 5 years. 8. More than 100 workers enable us to garantee the delivery time , normal orders witin 20days. |
Quotation requirement |
A) The warehouse plan. B) The size of Mezzanine. C) The size of Mezzanine rack(length*width*height). |
Name | Designed Multi-level Steel Structure Storage Industrial Mezzanine Floors |
Certification | AS4084standard |
Details for common uprights
Upright Type(mm) | Thickness(mm) | Safety Factor | Loading(KG)/m² |
160*88
|
5.5-8.0 | 1.5 | 500-1000 |
1.5 | |||
200*100 |
5.5-8.0 | 1.5 | |
1.5 | |||
250*125 |
6.0-9.0 | 1.5 | |
300*150 | 6.5-9.0 | 1.5 | |
350*175 | 7.0-11 |
