Product Details:
Payment & Shipping Terms:
|
Material: | Steel | Type: | Shuttle Racking |
---|---|---|---|
Weight Capacity: | 500-1500kg | Size: | Customer Size |
Warranty: | 3 Years | Usage: | Warehouse Storage System |
Structure: | Assemble | Finish: | Electrostantic Powder Coated |
High Light: | Warehouse Pallet Storage Racking,Warehouse Pallet Shuttle Rack,Logistics Pallet Shuttle System |

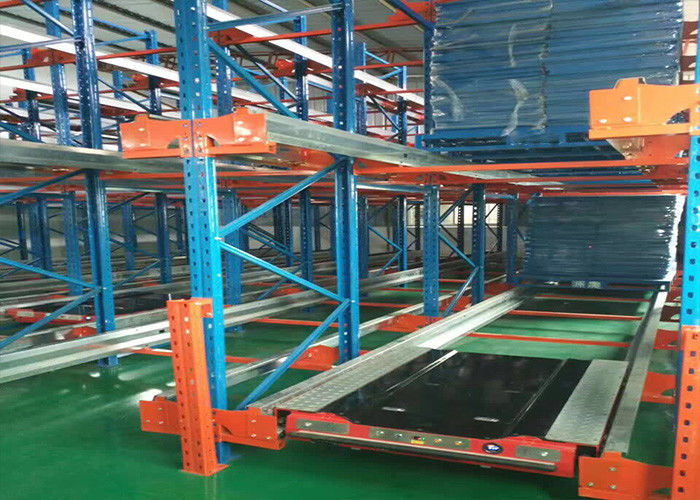

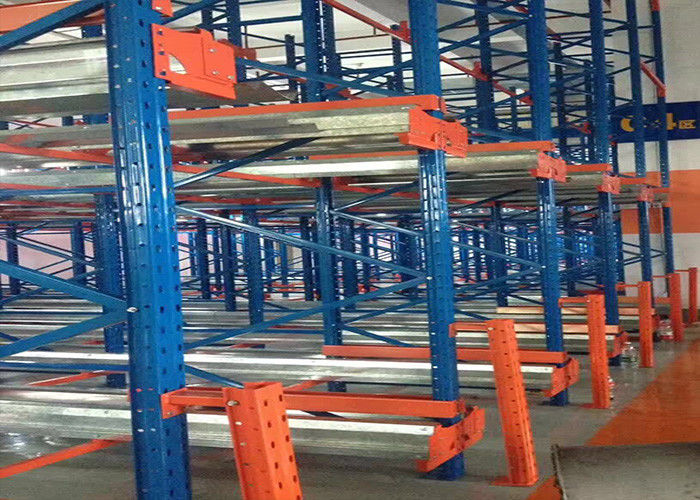

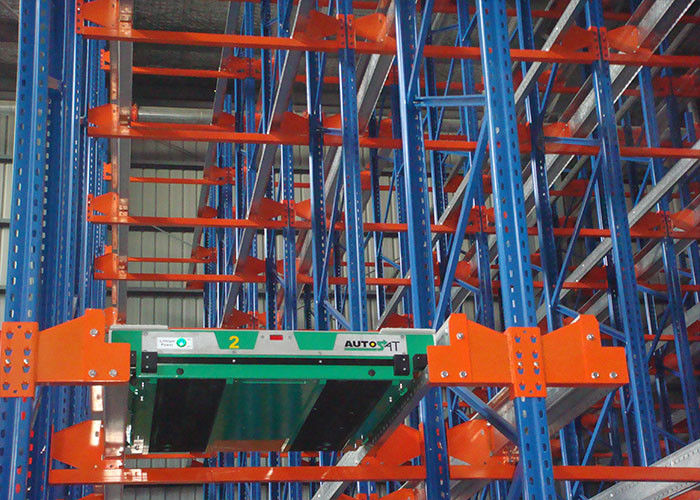

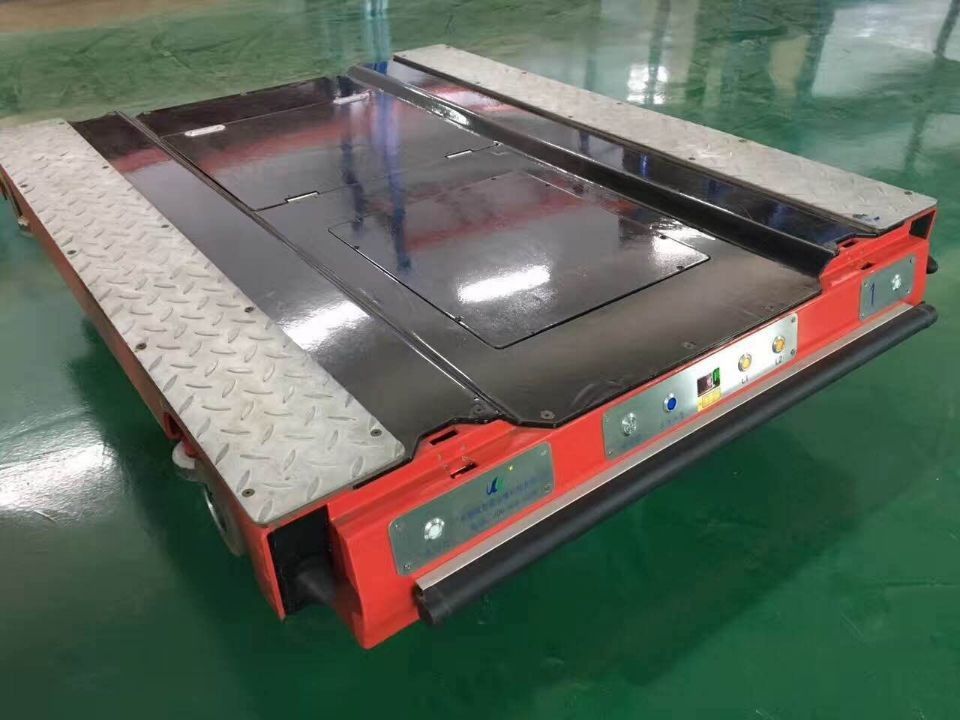

Bolted WarehouseShuttle Pallet Racking High Density Radio shuttle Widely Used in Logistics
Description:
Each level can be adjustable at 75mm per pitch and the maxmum loading is 25000kg with the maxmum length of 12 meters. Each level loading duty is from 200kgs to 6000kgs, depending on the beam length.
Pallets made of different material with various sizes, can be used on practical stackable pallet racks.
Shuttle Shelves System, structured with pallets and beams are most widely used. This kind of steel pallet racking is widely used together with forklifts , steel storage containers, steel pallets and storage boxes.
1. pallet rack is designed to store pallet cargo,It enables you to make full use of the storage space. With a wide range of optional solutions and components available, we can design special pallet racking according to your requirements.
2. pallet racking can be coupled with different specifications of pallets and containers.
3. pallet racking is manufactured in accordance with international quality standard ISO9001:2000, as well as international design standard SEMA, FEM, and AS4084,
4. It can coordinate with all the handling equipment and operational equipment.
Features and advantages:
Frame
|
Height (3-15m)
|
Depth (600-1,200mm)
|
Upright section: 90 x 70; 100 x 80; 120 x95mm
|
||
Thickness: 1.8/2.0/2.3/2.5mm
|
||
Beam
|
Length (1200-3600mm)
|
|
Beam section: 80 x 50; 100 x 50; 120 x 50; 140 x 50;160*50mm
|
||
Thickness: 1.5mm to 3.0mm
|
||
Load capacity
|
1-5Tons/Layer
|
|
Others
|
- MOQ. 1 sets
- Pitch: 75 or 76mm
- Delivery time: 7-15days
- Payment term. T/T (30% down payment) or L/C at sight
- Necessary accessories: for free.
- Packing: stretch film & carton
- Production capacity: 3000 sets/month
- Main market: Australia, Europe, Asia, Central America, South America, North Africa and etc. - Available in various colors/specifications/sizes
|
Standard Size:
S/N
|
Standard Size(W*D*H)
|
Loading Weight
|
Standard Layer
|
Material
|
1
|
2300*900*3000
|
1000-4000kg/level
|
2+1(ground)
|
steel
|
2300*900*4000
|
3+1(ground)
|
|||
2300*1000*3000
|
2+1(ground)
|
|||
2300*1000*4000
|
3+1(ground)
|
|||
2
|
2500*900*3500
|
2+1(ground)
|
||
2500*900*4000
|
3+1(ground)
|
|||
2500*1000*3500
|
2+1(ground)
|
|||
2500*1000*4000
|
3+1(ground)
|
|||
3
|
2700*900*3500
|
2+1(ground)
|
||
2700*900*4000
|
3+1(ground)
|
|||
2700*900*5000
|
3+1(ground)
|
|||
2700*900*6000
|
4+1(ground)
|
|||
2700*1000*3500
|
2+1(ground)
|
|||
2700*1000*4000
|
3+1(ground)
|
|||
2700*1000*5000
|
3+1(ground)
|
|||
2700-5000*1000*6000-12000
|
(4,5,6...)+1(ground)
|
|||
Remark:This size is our standard only. Different size with various loading weight and levels are acceptable.
|
Product information for inquiry:
1.
|
drawing(if available)
|
2.
|
size of your warehouse and warehouse drawing
|
3.
|
size of your goods including pallets(height*width*depth)
|
4.
|
weight of your goods including pallets or container
|
5.
|
how many levels of the rack
|
6.
|
the pallets' entering direction
|
7.
|
(RAL)color you want
|
