Multi Level Warehouse Mezzanine Systems , Pallet Racking Mezzanine Floors

Multi Level Warehouse Mezzanine Systems , Pallet Racking Mezzanine Floors

    • Multi Level Warehouse Mezzanine Systems , Pallet Racking Mezzanine Floors
    • Multi Level Warehouse Mezzanine Systems , Pallet Racking Mezzanine Floors
    • Multi Level Warehouse Mezzanine Systems , Pallet Racking Mezzanine Floors
  • Multi Level Warehouse Mezzanine Systems , Pallet Racking Mezzanine Floors

    Product Details:

    Certification: AS4084
    Model Number: T-steel mezzanine ZJ20174308

    Payment & Shipping Terms:

    Minimum Order Quantity: 50m²
    Price: Negotiation
    Packaging Details: bubble foam
    Delivery Time: 15-30 Days
    Payment Terms: T/T, L/C
    Supply Ability: 10000m²
    Contact Now
    Detailed Product Description
    Name: Mezzanine Racking System Finish: Corrosion Protection
    Material: Steel Q235/Q345, Steel Q235/245 Structure: Assembled
    Weight Capacity: Maximum 1500kg/pallet Feature: Safety, Flexible, Economical, Durable
    Length Span: 3000-6000mm/upright Width Span: Max 6000mm/upright
    Color: Black Or Gray
    High Light:

    warehouse mezzanine floors

    ,

    pallet racking mezzanine floors

    Black Warehouse Multi-level Industrial Mezzanine Floors for Storage or Office

    Description:

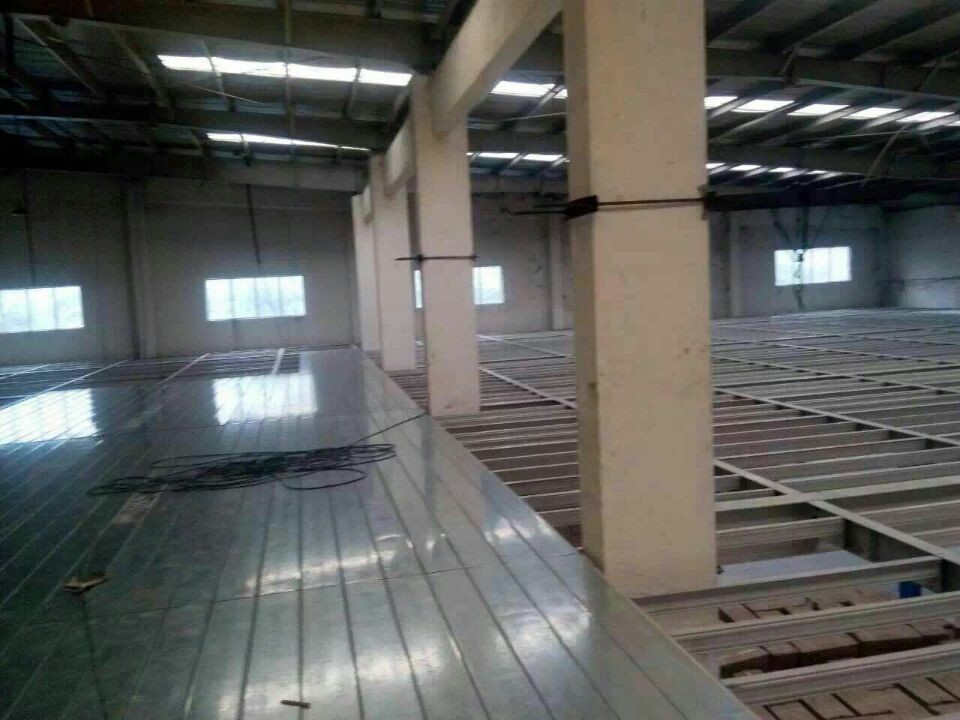

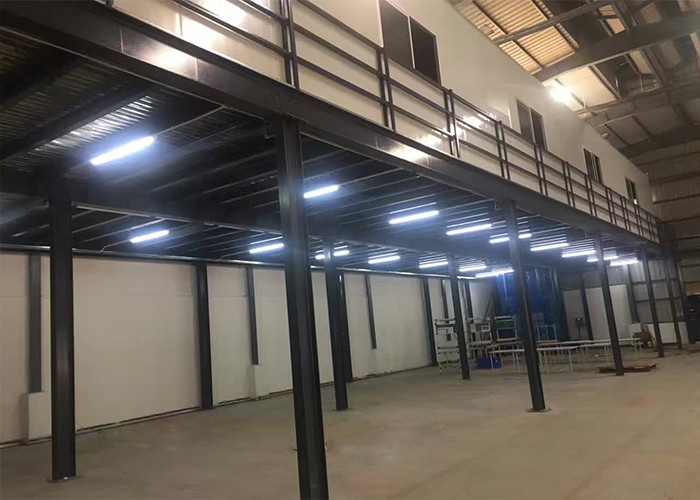

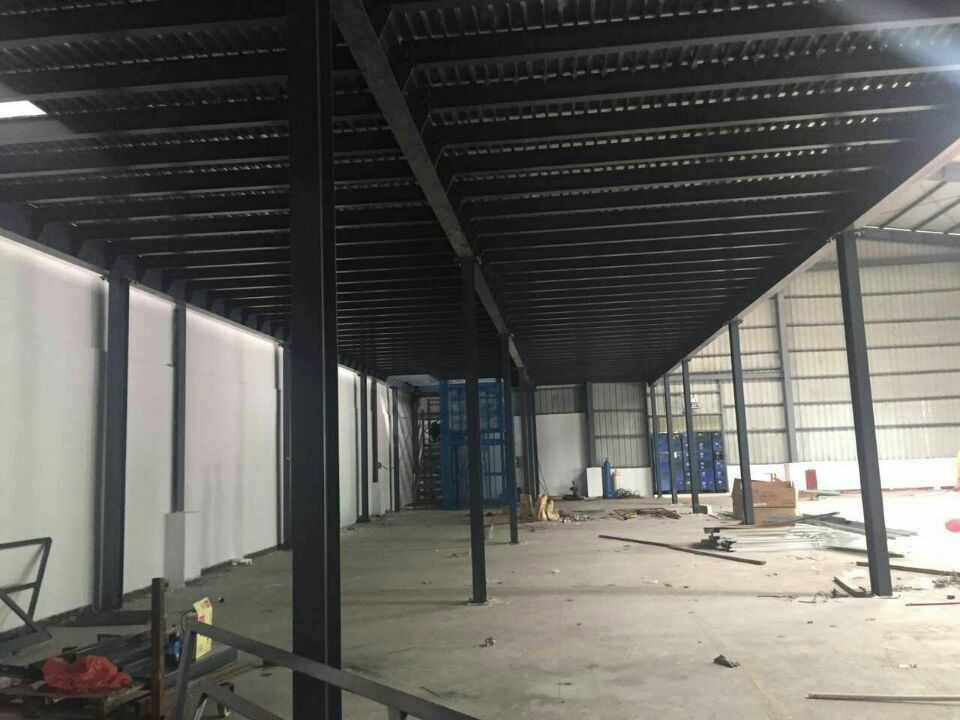

    Warehouse Mezzanine is made of cold rolled special shaped steel, with safe and excellent loading capacity, create more usable space. Also customized to fit your exact area, height, color and load requirements.
    Taking full advantage of the space, it is a typical application for manual picking goods.

    1. With composite racking structure, patented light-steel floor panel structure
    2. Floor panel with large load capacity, low cost, quick construction
    3. Can be designed into one layer or multi-layers according to actual situation
    4. Ensures fullest space utilization
    5. Provides direct access to all pallets
    6. Surface: powder coated or galvanized and color optional
    7. Can be designed according to clients' requirements



    Futures


    1. Doubly make use of ground space
    2. Depending on the space of store, we can design the average span(3000-6000mm). The bearing limit can reach 1000kg/m2
    3. Work in high efficiency combined with lift platform.
    4.The advantage of the Mezzanine floor racking is safe, good looking& removable.

    Advantages

    Versatility and flexibility to meet any storage needs:

    1. The most commonly used, of all storage systems for palletised goods. Low capital cost.
    2. Easy installation and simple to adjust.
    3. Compatible with most types of handling equipment.
    4. Less storage density compared to other pallet racking systems.
    5. Infinitely adjustable and offering a wide range of options and components.
    6. Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
    7. quality garantee 5 years.
    8. More than 100 workers enable us to garantee the delivery time , normal orders witin 20days.

    Quotation requirement

    A) The warehouse plan.
    B) The size of Mezzanine.
    C) The size of Mezzanine rack(length*width*height).
    D) How many bays you want.
    E) How many layers you want.
    F) The loading capacity of each layer.
    G) The RAL color you want.

    Namewarehouse multi-level Industrial Mezzanine Floors for storage or office
    CertificationAS4084standard


    Details for common uprights


    Upright Type(mm)Thickness(mm)Safety FactorLoading(KG)/m²


    160*88


    5.5-8.01.5500-1000
    1.5


    200*100

    5.5-8.01.5
    1.5


    250*125

    6.0-9.01.5
    300*1506.5-9.01.5
    350*1757.0-11






    Multi Level Warehouse Mezzanine Systems , Pallet Racking Mezzanine Floors
