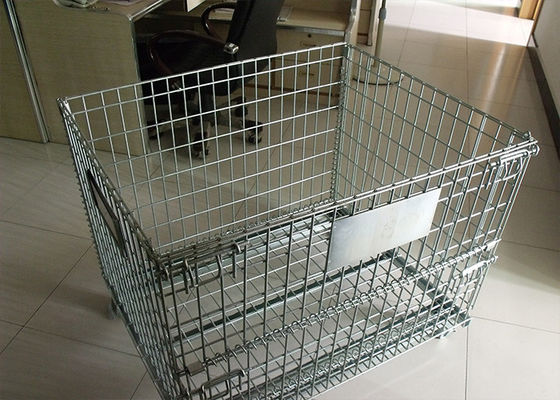

Foldable Collapsible Wire Mesh Cage with Brake Casters for Logistics Goods Transportation

- Material: High-carbon steel wire (Q235) for mesh (diameter: 2.5-4.0mm); steel pipe (diameter: 16-25mm) for frame

- Load-Bearing Capacity: Total load: 300-800kg; uniform mesh load: 150kg/㎡

- Size (Full/Folded): Standard: 1200×800×1200mm (full) / 1200×800×240mm (folded); other sizes available

- Casters: 4 heavy-duty rubber casters (2 with brake function); each caster load: 200kg; wheel diameter: 100-125mm

- Surface Treatment: Hot-dip galvanizing (zinc layer thickness ≥ 70μm) or electrostatic powder coating (thickness ≥ 60μm); salt spray test resistance: ≥ 400 hours (galvanized) / ≥ 200 hours (powder-coated)

1. Efficient Foldable Design: No tools required—one person can fold/unfold in 15-30 seconds; reinforced alloy hinges (wear-resistant, 10,000+ fold cycles) avoid jamming; 10 folded cages stack vertically, saving 80% storage space.

2. Safe & Smooth Mobility: Brake casters with double-ball bearings ensure quiet movement (≤ 50dB) on concrete/asphalt; brake pads made of wear-resistant rubber (service life: 3-5 years) lock wheels firmly, even on sloped ground (≤ 5°).

3. Durable & Visible: Q235 steel mesh (50×50mm/75×75mm size) prevents goods from falling while enabling clear visibility—staff can check inventory without opening the cage, speeding up order verification.

4. Easy Goods Access: Spring-loaded latch door (one-hand operation) opens 180° for full-side loading/unloading; door lock optional (padlock-compatible) for secure storage of high-value goods.

5. All-Environment Adaptability: Hot-dip galvanizing resists rain, humidity, and warehouse oil stains; powder coating (gray/blue/black) fits indoor logistics environments; can be used outdoors temporarily (with waterproof cover optional).

1. Wire Mesh Weaving: Automatic mesh weaving machine produces 50×50mm/75×75mm mesh; tension testing ensures uniform wire tightness (no sagging under load).

2. Frame Forming: Steel pipes bent into rectangular frames via hydraulic bending machine (accuracy error ≤ 1mm); robot spot welding (weld spot diameter ≥ 5mm) connects mesh to frame, with weld pull-off force ≥ 500N.

3. Surface Treatment: - Hot-dip galvanizing: Entire cage immersed in 450℃ molten zinc for 3-5 minutes; post-treatment removes excess zinc for smooth surface. - Powder coating: 3-stage pretreatment (degreasing → derusting → phosphating) followed by electrostatic spraying and 180-200℃ baking for 25 minutes.

4. Caster & Hinge Assembly: Casters installed with stainless steel bolts (torque ≥ 25N·m); alloy hinges fixed via rivets (pull-out force ≥ 300N); brake function tested 100 times to ensure reliability.

5. Finished Product Testing: Each cage undergoes: - Load test (1.2× rated load for 24 hours, no deformation) - Fold test (50 cycles, no hinge damage) - Brake test (loaded cage parked on 5° slope, no sliding)

1. E-Commerce Distribution Centers: Storage and transfer of small-batch parcels (e.g., clothing, electronics); foldable design saves space for off-peak empty cage storage; brake casters adapt to busy sorting areas.

2. 3PL Warehouses: Cross-department transfer of client goods (e.g., consumer goods, industrial parts); visible mesh facilitates inventory checking; one-time loading reduces handling errors.

3. Retail Chain Distribution: Delivery of goods from central warehouse to store backrooms (e.g., daily necessities, food); cage can be pushed directly into stores, avoiding intermediate turnover.

4. Truck Transportation: Temporary storage of goods during long-haul transport (e.g., auto parts, household appliances); brake casters prevent cage movement in the truck; foldable for empty return.

5. Cold Chain Logistics (Optional): Powder-coated version with food-grade coating (FDA certified) for refrigerated goods (e.g., fruits, dairy); mesh structure ensures air circulation, avoiding goods spoilage.

1. Size & Load Customization:

- Dimensions: Adjust width (1000-1500mm), depth (600-1000mm), height (1000-1400mm) based on truck compartment size or goods dimensions (e.g., 1500×1000×1400mm for large packages).

- Load Upgrade: Reinforce mesh (5.0mm wire) and frame (30mm pipe) to increase total load to 1000-1200kg for heavy logistics goods.

2. Function Customization:

- Lockable Door: Add metal hasp (compatible with padlocks) or electronic lock (for high-value goods) to prevent theft.

- Dividers: Install detachable steel mesh dividers (height: 300-600mm) to separate multi-SKU goods (e.g., different sizes of parcels).

- Label Holders: Attach plastic/metal label holders (side or front) for barcode/QR code scanning, optimizing inventory management.

3. Appearance & Material Customization:

- Color: Custom powder coating colors (e.g., logistics company brand color, safety yellow) to fit corporate image.

- Material Upgrade: Use stainless steel (304/316) for mesh/frame in humid/corrosive environments (e.g., seafood cold chain).

4. MOQ & Lead Time: Minimum order quantity for customization: 5 units; design confirmation: 1-2 working days; production lead time: 7-10 working days (powder-coated) / 10-12 working days (galvanized)

1. Logistics-Specific R&D: We have 12+ years of experience in logistics storage equipment; our R&D team optimized the cage based on 600+ logistics enterprise feedback—e.g., widened caster spacing (600mm) to improve stability, and added anti-slip rubber pads on the bottom of folded cages to prevent stacking damage.

2. Strict Quality Control: All products comply with ISO 9001 and GB/T 13912-2020 (galvanizing standard); raw materials (Q235 steel, rubber casters) come with quality certificates; 100% of finished products undergo load, fold, and brake tests before delivery.

3. One-Stop Logistics Solution: Beyond cage customization, we provide free on-site warehouse layout design (covering 300+ cities) and logistics efficiency consulting—helping customers match cage quantity to daily order volume and optimize transfer routes.

4. Reliable After-Sales Support:

- Warranty: 5-year free warranty for frame/casters (non-human damage); 3-year warranty for surface treatment. - Maintenance: Free caster replacement for the first year; 24-hour technical hotline for emergency issues (e.g., hinge jamming).

- Installation: Provide detailed assembly videos and on-site guidance (for bulk orders ≥ 50 units).

5. Cost & Delivery Advantages: As a direct manufacturer with a 30,000㎡ production base, we eliminate middleman markups—prices are 20-25% lower than distributors; standard models are in stock (3,000+ units), with delivery time 15 working days; customized orders are delivered within 10-15 working days.

Galvanized plating folding wire mesh cages for goods storage in warehouse

Standard Specification

(Customized Available)

Feet

height

(mm)

Weight

(KG)

800×600×640

6.0

50×50

100

1000×800×840

1200×1000×890

1000×800×840

1200×1000×890

1000×800×500

1000×800×840

1200×1000×890

1550×1120×1000

800×500×540

1000×800×840

high quality cold-drawn steel wire Q235B(SS400) purchased from

Shanghai Baosteel Group

Material Thickness

wire diameter 5.0mm, 6.0mm, 6.4mm

Surface Treatment

Galvanized, zinc finish or powder coated

HS Code

7326909000
