Industrial Steel Mold Storage Racks Drawer Type For Storing Mold / Toolings

Industrial Steel Mold Storage Racks Drawer Type For Storing Mold / Toolings

    • Industrial Steel Mold Storage Racks Drawer Type For Storing Mold / Toolings
    • Industrial Steel Mold Storage Racks Drawer Type For Storing Mold / Toolings
    • Industrial Steel Mold Storage Racks Drawer Type For Storing Mold / Toolings
    • Industrial Steel Mold Storage Racks Drawer Type For Storing Mold / Toolings
  • Industrial Steel Mold Storage Racks Drawer Type For Storing Mold / Toolings

    Product Details:

    Certification: ISO9001/14001
    Model Number: W-MC2017522-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 sets
    Price: Negotiation
    Packaging Details: Wrapt in plastic film or in bulk.
    Delivery Time: 15-20 Days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 3500 Ton/Tons per Month
    Contact Now
    Detailed Product Description
    Product Name: Industrial Heavy Duty Drawer Steel Mould Storage Racks Tooling Storage Shelves Weight Capacity: ≥800kg/lever
    Drawer Rack:: Adjustable Standard Size:: L2000*D615*H3100
    Color::: RAL System / Blue, Orange Or Customized Feature:: Corrosion Protection
    Layer: 2-6
    High Light:

    mould storage racks

    ,

    warehouse storage racks

    Industrial Heavy Duty Drawer Steel Mould Storage Racks tooling storage shelves



    Description:

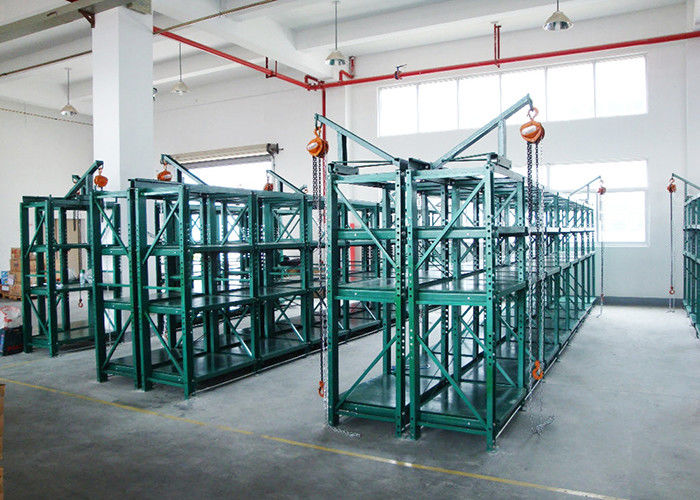

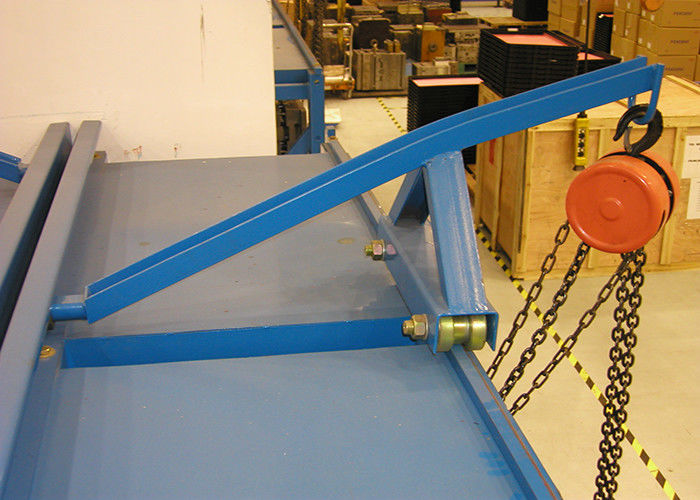

    Mold rack is also called drawer rack, mainly used for mold, hand chain hoists can be used at the top of mold rack, easily for loading and unloading, drawer plate can be freely moved with perfect protecting equipment, the overall rack is designed by assembling structure.

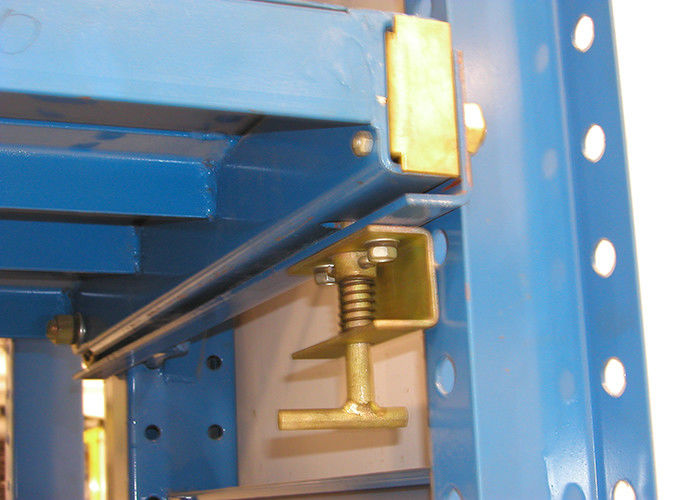

    Mould Storage Racks is mainly used for storage of all kinds of mould, which could be assembled with manual movable carriage on the top so as to easily take and retrieve the goods. The side rack was equipped with idler wheel rail on the bottom and the sliding shelf panel could be freely pulled out when loading. The middle type slide rack could carry less than 800KG/Drawer, and the heavy type slide rack could load more than 1000 KG/Drawer. The entire rack is section combination structure, which is convenient for transport, and the assembly is simple and fast and this rack possesses better safety protection device. Special drawer type mold rack can be ordered.



    Specification:



    Storage heavy duty drawer die mold rack
    1. Features
    Size
    As customer's request;
    Packing:
    Neutral paper box or in bulk or upon clients requirements;
    Surface Metal storage warehouse mould placing rack treatmet:
    power coated;
    Container load:
    10-15 ton per 1x20 container, 20-25 ton per 1x40 container
    Payment terms:
    TT/ Sight LC
    2. Material:
    High grade Q235B Cold Rolled Steel
    3. Surface Treatment:
    High-quality Powder Coating Finishing.
    4. Drawer die mold rack Load Capacity & Dimension:
    1) Loading capacity: 800kgs /pair beam.
    2) Height: 2000mm
    3) Depth: 600mm(Inside)
    4) Length: 900mm(Inside)
    Special sizes also available to specific storage needs.
    5. Main Parts Specs(mm):
    1) Upright: 10# C shaped Steel
    2) Drawers:50*50*T2mm or T4mm
    3) Horizontal & diagonal bracings: 40*24*1.5mm
    4) Anchors and all necessary components.
    6. Certificates.
    CE certified, ISO9001,
    7. Quick Delivery.
    Within 15 workdays (negotiable), according to quantity

    Industrial Steel Mold Storage Racks Drawer Type For Storing Mold / ToolingsIndustrial Steel Mold Storage Racks Drawer Type For Storing Mold / ToolingsIndustrial Steel Mold Storage Racks Drawer Type For Storing Mold / Toolings

    OEM Service is Available



    Order → discuss → paper processing draft → your confirmation → sample process→ your approval → bulking manufacture



    FAQ:



    1. Q:Are you a factory or trading company?
    A:We are a factory.

    2. Q:Where is your factory located? How can I visit there?
    A:Our factory is located at Hengli Town, Dongguan city, China, which is just 1 hour driving away from HK. You are always to pay a factory tour to our factory.

    3. Q:What is he material of your products?
    A: The material is Q235 Cold rolled steel . We can also choose material as customers’ requirement.

    4. Q:How can I get some samples?
    A: Just feel free to send us drawing, we will try to meet your requirement and offer you some samples for reference or confirmation.
